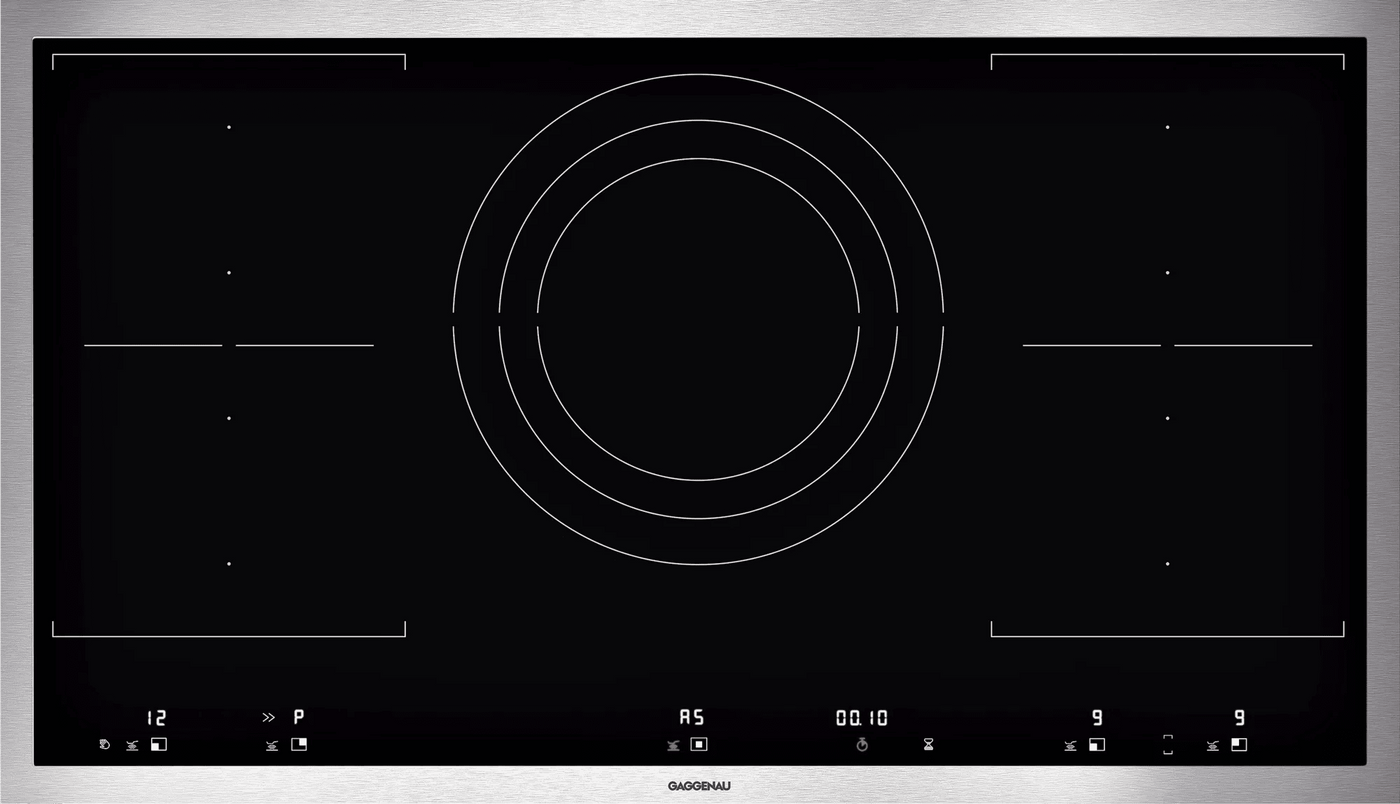

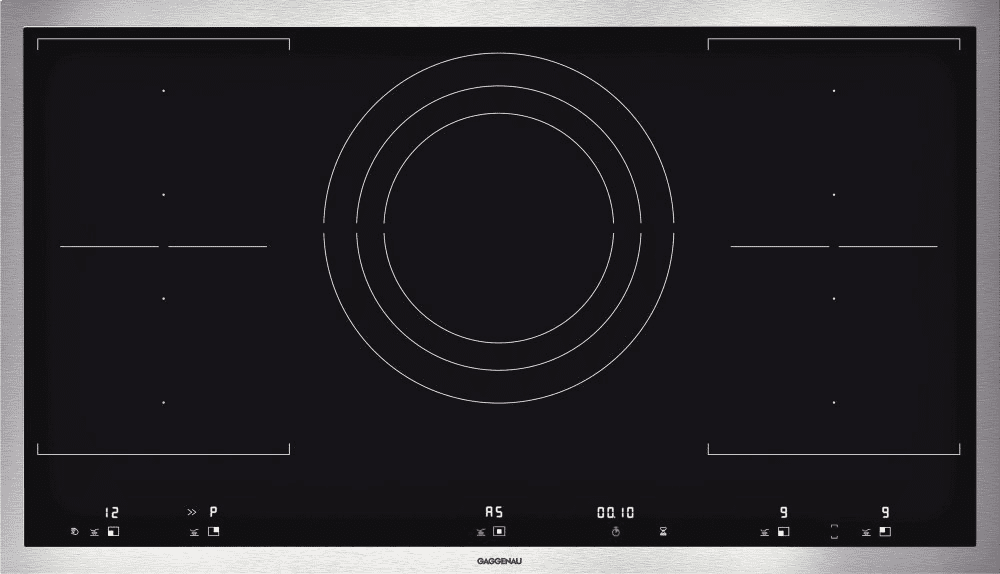

2 flex induction cooking zones 7 1/2" x 9" (2200 W, with booster 3,700 W), linked together 15" x 9" (3300 W, with booster 3,700 W).
1 induction cooking zone 8 1/4" (21cm) (2200 W, with booster 3700 W), automatically switches to 10 1/4" (26cm) (2600 W, with booster 3700 W) and to 12 5/8" (3300 W, with booster 3700 W).
Control knobs with illuminated ring, cooking zone and output level markings.
Electronic power control in 17 output levels.
User friendly control with bi-coloured display (white / orange).
Flex function for rectangular cooking areas.
Frying sensor function.
Individual residual heat indication.
Depending on the type of installation - surface- or flush-mounted, with or without cover - the specific location of the cut-out and the control knob positions may vary.
The horizontal positioning of the knobs may be aligned with the specific areas.
The adjacent drawing "Installation of the control knob" must be observed if the panel is more than 1" thick. There must be a recess at the rear for proper electronic knob installation.
If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
The bearing capacity and stability, in the case of thin countertops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
The joint width may vary due to size tolerances of the combinations and of the countertop cut-out.
If installing several appliances in individual cut-outs allow for a division bar of inimum 1 " (50 mm) between the individual cut-outs.
Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of flat bottom cookware is recommended.
Appliance can be snapped into the countertop from above.
Appliance weight: approx. 21 kg.
Total rating: Connected load: 9360 W
Plan for a 37'' connecting cable without plug (hardwire required).
Flex function for combining the rectangular cooking areas
Free positioning of cookware inside combined cooking areas
Frying sensor function for temperature control in pans
Large cooking zone for pots up to 13"
Ideal for round-bottomed wok using wok ring attachment
