Gaggenau Range Hood-AI230700

Sku: 90G05140
The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product.
 Contact Us to Purchase







Payment Options:

  • visa
  • american express
  • master
Maximum quantity available reached.

Output

  • Odor reduction recirculation: 95%.
Features
  • 3 electronically controlled power levels and 1 intensive mode.
  • Grease filter saturation indicator.
  • Patented rim extraction filter, dishwasher-safe.
  • Airflow-optimised interior for efficient air circulation.
  • The package includes an one-way flap.
Planning notes

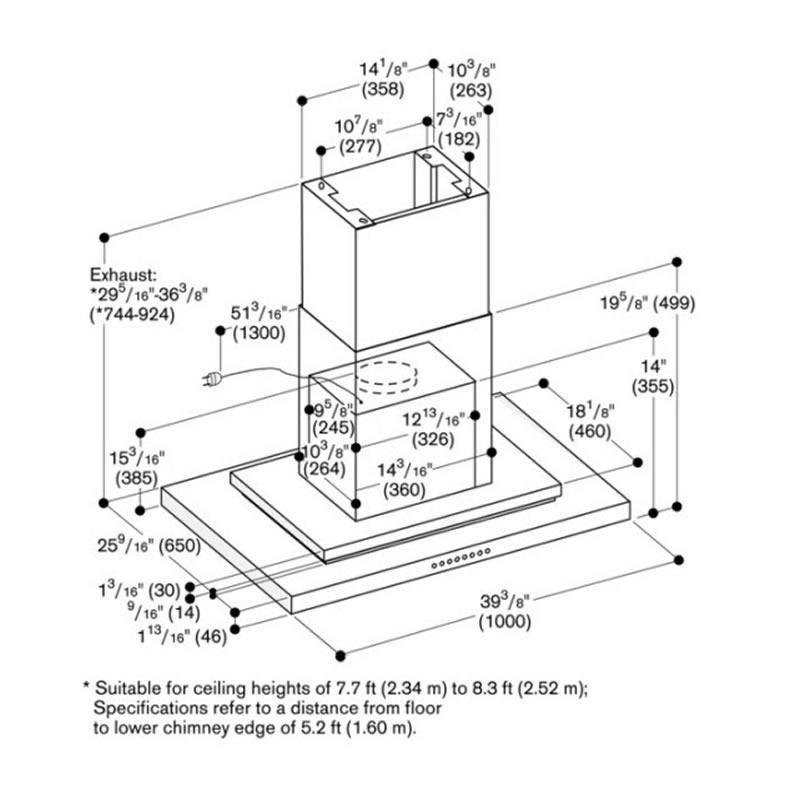

  • The package includes the two-part chimney with the dimensions from 2' 1 3/4" (654 mm) to 2' 8 13/16" (834 mm). Individual planning solutions can be implemented using the special accessory chimney extension AD 200 322 or by shortening the lower edge of the inner chimney.
  • Clearance above gas appliances min. 76 cm (more than total load gas 12 kW min. 70 cm).
  • Clearance above electric appliances min. 28".
  • The air recirculation module with activated charcoal filter can be installed on the inner chimney.
  • When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
Rating
  • Total Amps: 3 A.
  • 110 - 127 V / 60 Hz.
  • Classic Gaggenau design
  • Highly efficient extraction of cooking vapours
  • Low-noise fan
  • Patented filter technology with high grease absorption
  • Rim extraction filter with flat and easy-to-clean stainless steel underside

Specifications

UPC: 825225907657
