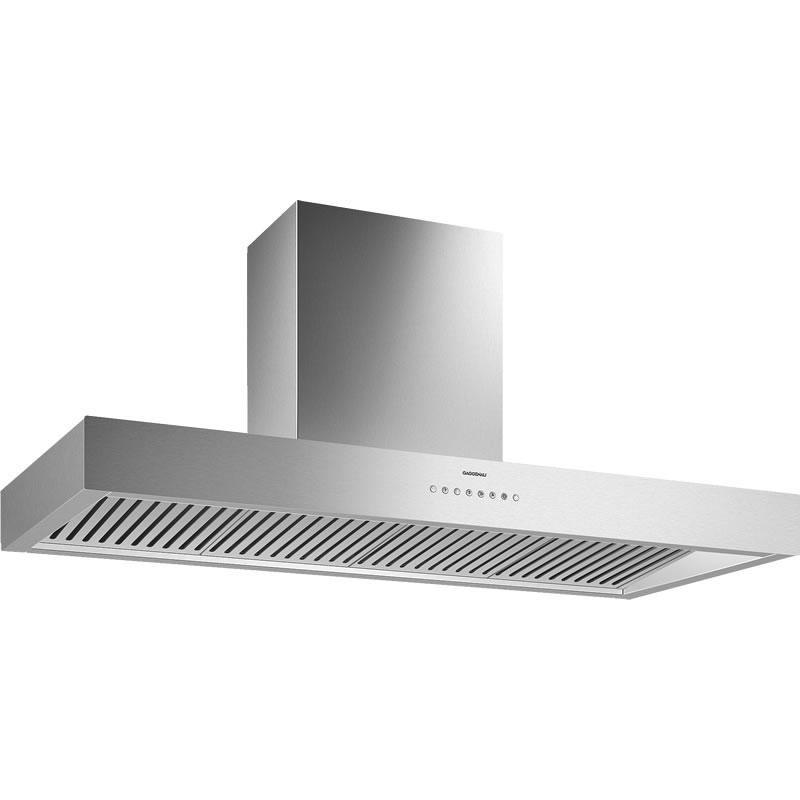

Gaggenau Range Hood-AW442720

Sku: 90G06150
The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product.
 Contact Us to Purchase







Payment Options:

  • visa
  • american express
  • master
Maximum quantity available reached.

Output

  • Noise level depends on the built-in situation.
Features
  • 3 electronically controlled power levels and 1 intensive mode.
  • Automatic function with sensor-controlled run-on function.
  • Grease filter saturation indicator.
  • Baffle filter, dishwasher-safe.
  • Lamp output 3 x LED light bars 10W.
  • Illuminance 1110 lx.
  • Easy mounting system for simple installation and alignment.
Planning notes
  • To chose the correct blower for either extraction or recirculation, refer to the blower overview in the Models and Dimensions.
    The two-part duct cover must be ordered as a separate installation accessory.
  • Connection to the respective appliances via network cable.
  • Clearance above gas appliances min. 30".
  • Clearance above electric appliances min. 28".
  • Air recirculation module with 2 activated charcoal filters is installed in the inner chimney. Special air recirculation chimneys are available for this.
  • When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
Rating
  • Total Amps: 10 A.
  • 120 V / 60 Hz.
  • Professional technology hood combined with classic Gaggenau design
  • Highly efficient extraction of cooking vapours due to large vapour collection area
  • Angled baffle filter with high grease absorption
  • Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapors
  • Air extraction or air recirculation system
