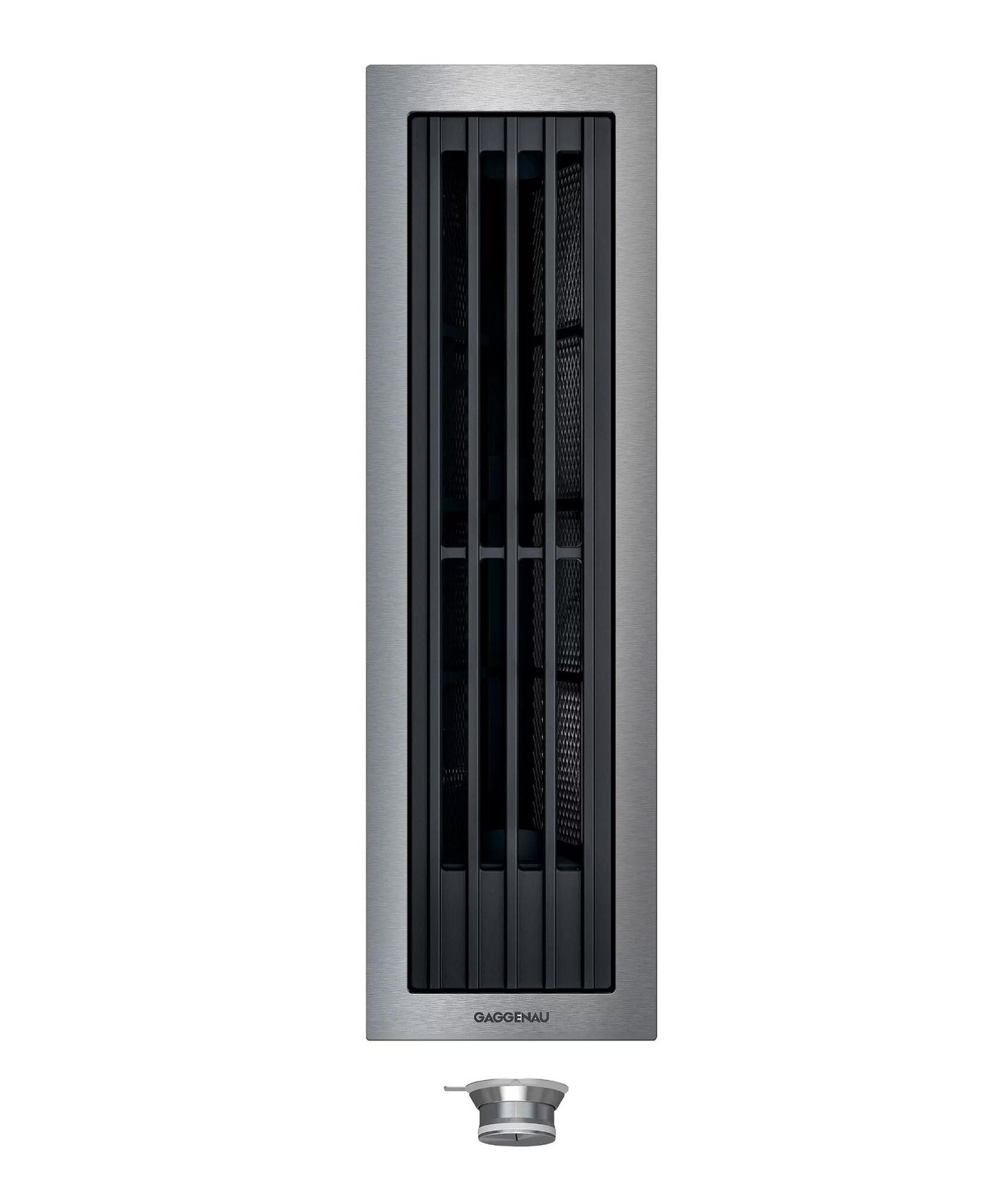

Control knob with illuminated ring included in delivery.
3 electronically controlled power levels and 1 intensive mode.
Automatic function with sensor-controlled run-on function.
Large-scale metal grease filter with high grease absorption.
Grease filter, dishwasher-safe.
Grease filter and activated charcoal filter saturation indicator.
Airflow-optimised interior for efficient air circulation.
Interval ventilation, 6 min.
Enameled ventilation grill is dishwasher-safe.
Air exhaust bend included in delivery.
Overflow 8.5 oz (250 ml) capacity.
Cooktop-based ventilation control (with suitable cooktop).
Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
Consumption data is referred to a configuration with the recirculation blower AR 410 710.
Sound level min. 57 dB / max. 71 dB normal mode.
Please refer to the models and dimentions for recommended configurations of downdraft ventilations and blower units and the needed ducting elements.
For each VL one blower is recommended.
Maximum cooktop width between two VL: 24" (60 cm).
If operated next to gas appliances, the air deflector AA 414 010 is recommended to ensure maximum performance of the cooktop.
Appliance can be snapped into the countertop from above.
Depending on the type of installation - surface- or flush-mounted, with or without cover - the specific location of the cut-out and the control knob positions may vary.
If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
The bearing capacity and stability, in the case of thin countertops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
Additional instructions for flush mounting:
Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
The joint width may vary due to size tolerances of the combinations and of the countertop cut-out.
Plan for an ethernet / LAN cable or connect via WiFi.
Can be combined perfectly flush with other Vario appliances of the 400 series
Precision crafted 1/8-inch stainless steel frame

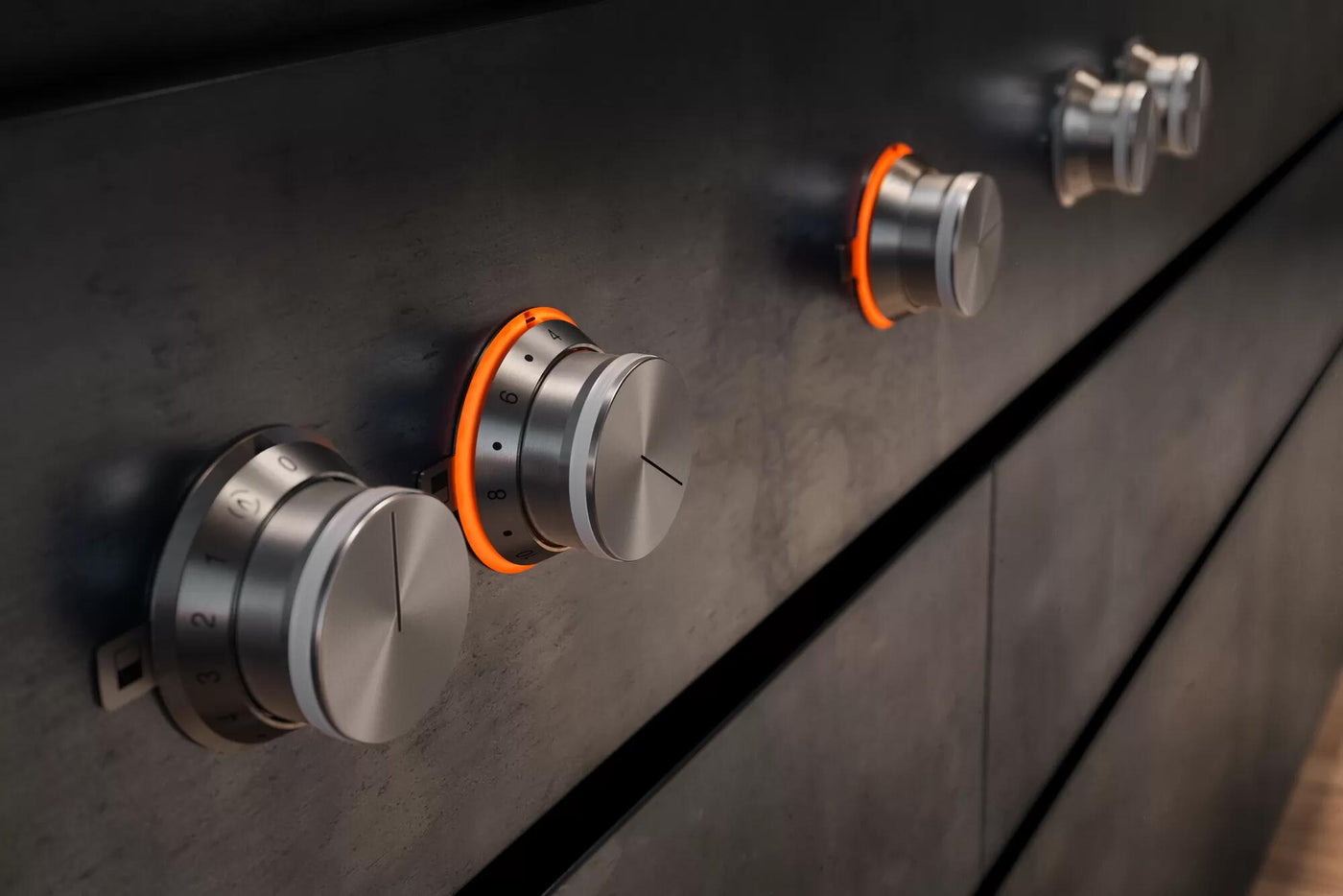

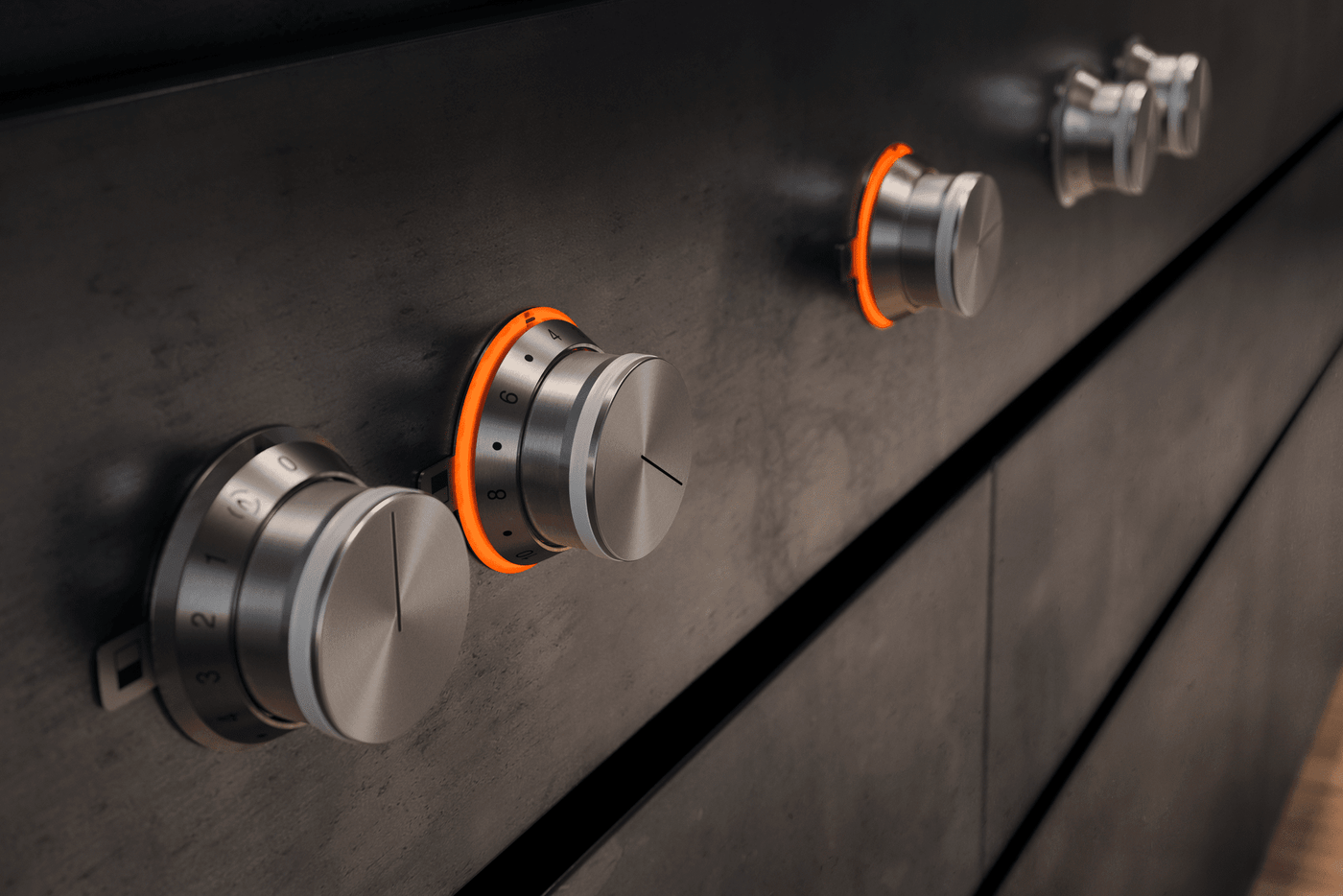

Solid stainless steel control knobs
Highly efficient, low noise ventilation system especially with remote fan unit AR 410 710
Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapors
