Operation

• TFT touch display operation.
• Clear text display in 44 languages.

• Dynamic cold air distribution with Multi-Flow Air System.
• Automatic defrosting with defrost
  water evaporation.
• Cushioned door closing system.
• Activated charcoal air filter.
• Sabbath mode certified by Star-K.
• When rest mode is active, the appliance can only be opened using a handle.
• Open-door and malfunction warning system.
• Home network integration for digital services (Home Connect) wireless via WiFi.
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

• No-Frost technology with fast cooling.
• Temperature adjustable from 35 (degree)F to 46 (degree)F.
• Flat door rail system with fully flexible positioning of door racks.

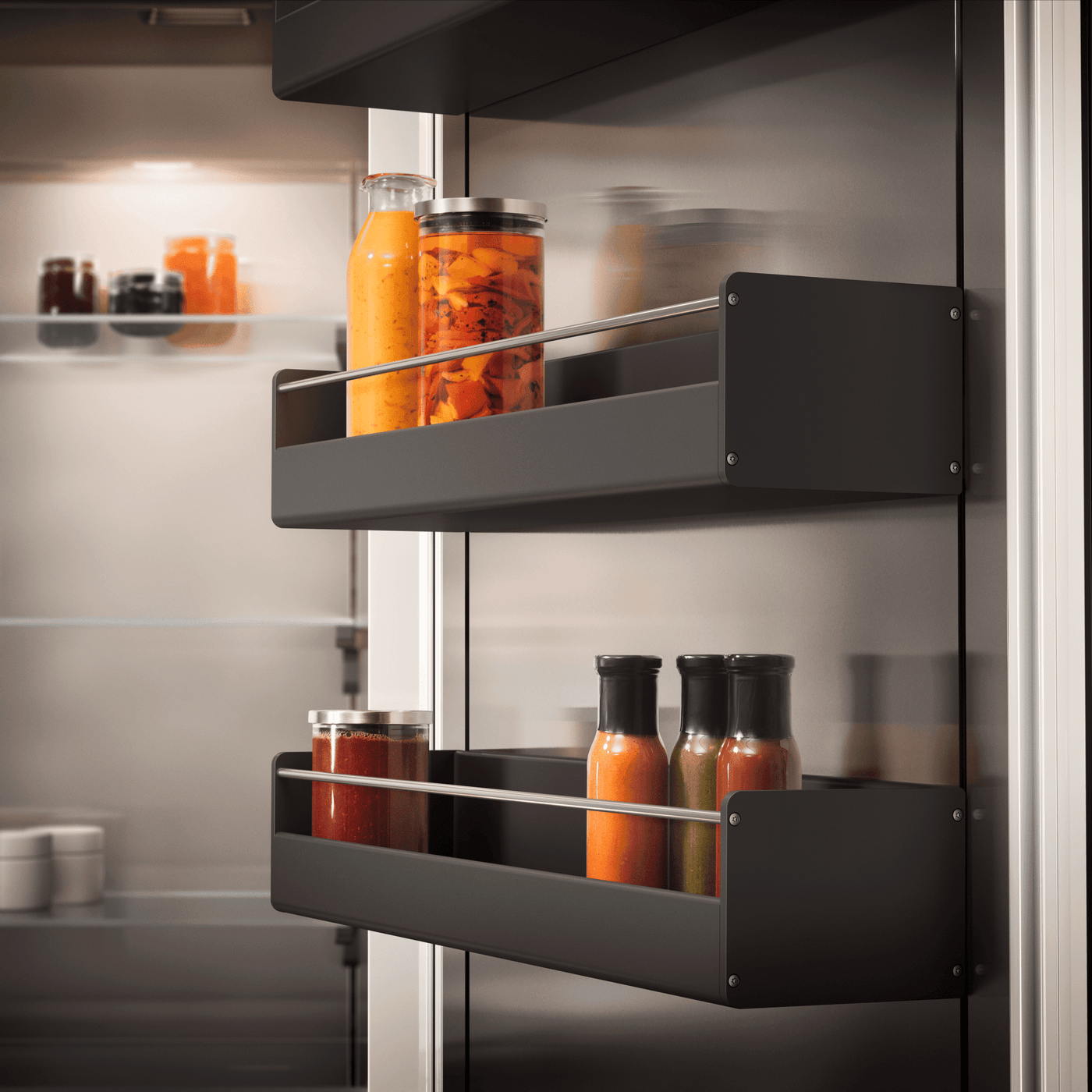

• 3 height adjustable door bins, one of which is a large gallon door bin.
• Net volume 397 l liters.

• 1 fully extendable fresh cooling drawer close to 32 (degree)F with transparent front, illuminated.
• Cushioned closing system.
• Temperature can be adjusted manually.
• Ideal for meat, fish and poultry.
• Net volume 0 litres.

• 1 fully extendable fresh cooling drawer with transparent front, illuminated.
• Cushioned closing system.
• Humidity can be adjusted manually.
• Ideal for fruit and vegetables.

• No-frost technology with fast freezing at -22 (degree)F.
• Temperature adjustable from 3 (degree)F to -11 (degree)F.
• 4-star freezer compartment.
• Freezing capacity 7.8 kg/24 h.
• Interior lighting with 2 LED light spots, warm white light.

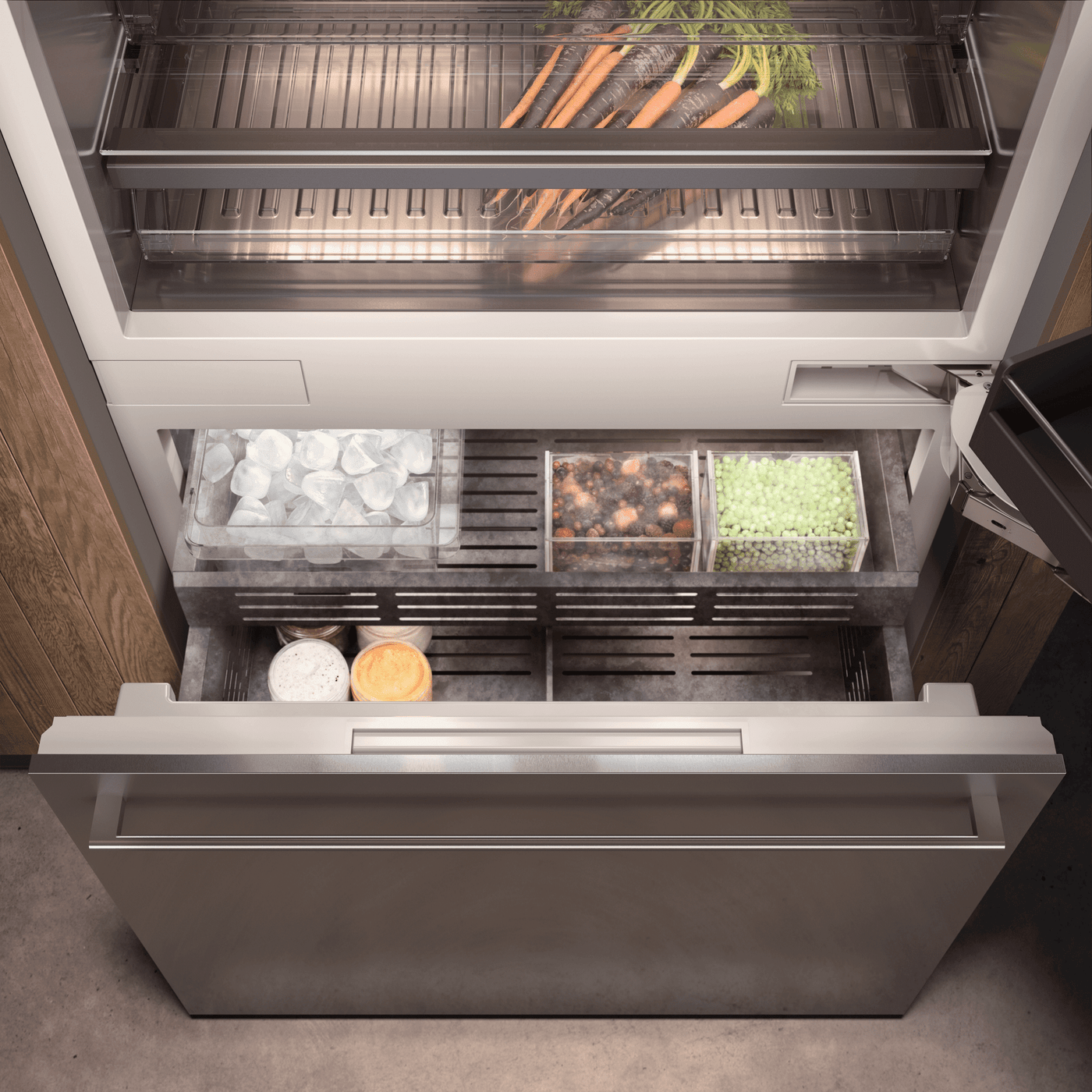

• Integrated automatic ice maker in the freezer compartment, with fixed water connection.
• Particle filter for water inlet, integrated in ventilation grille area.
• Saturation indicator shown in TFT touch display.
• Ice maker can be switched off independently.
• Ice cube production approx. 2.9 lb (1.3 kg)/24 h.
• Removable ice storage container with approx. 6.6 lbs. (3 kg) capacity.

• Energy consumption 504.08 kWh/year.
• Noise level 42 dB (re 1 pW).

• Flat hinge.
• Door hinge right, reversible.
• Door opening angle of 115(degree), fixable at 90(degree).
• Max. door panel weight:
  Door 103 lbs (47 kg).
  Drawer 22 lbs (10 kg).
• Shut-off valve for water connection must be planned next to the appliance and always be accessible.
• If the water pressure exceeds 116 psi, connect pressure relief valve between water tap and hose set.

• Total rating 1.079 kWh/24 h.
• Total Amps: 10 A.
• Connecting cable 118" (3.0 m), detachable.
• Cold water connection required.
  Electrical location 6" above ground in lower left corner of unit.
• Supply hose 51,1 INCH (1.3 m) with 1/4" male compression fitting (standard icemaker connector).
• Water pressure 29 to 116 psi.

• Stainless steel interior with solid anthracite aluminium elements
• Warm white and glare-free LED light spots
• Opening assist for door with two options:
• 1. Push-to-open function for integration into handleless furniture front
• 2. Pull-to-open function to facilitate opening the door using a handle
