Operation
- TFT touch display operation.
- Clear text display in 44 languages.
- Touch key operation for ice and water dispenser.
- Dynamic cold air distribution with Multi-Flow Air System.
- Automatic defrosting with defrost
water evaporation. - Cushioned door closing system.
- Sabbath mode certified by Star-K.
- When rest mode is active, the appliance can only be opened using a handle.
- Open-door and malfunction warning system.
- Home network integration for digital services (Home Connect) wireless via WiFi.
- The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
- No-frost technology with fast freezing at -22 (degree)F.
- Temperature adjustable from 3 (degree)F to -11 (degree)F.
- 4-star freezer compartment.
- Freezing capacity 8.7 kg/24 h.

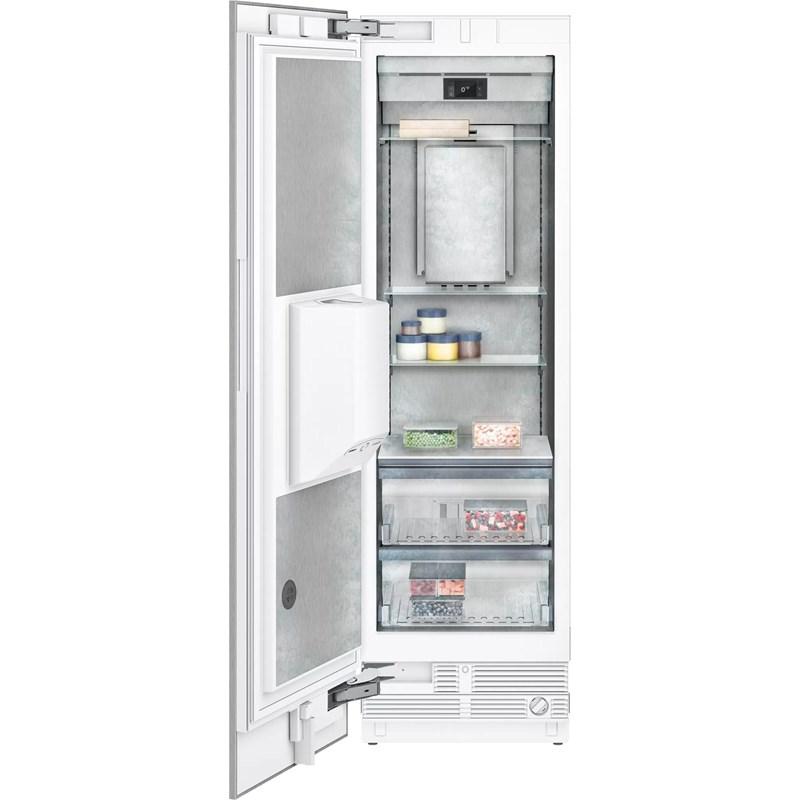

- 4 safety glass shelves, white glass, 2 of which are individually height adjustable.
- 2 fully extendable drawers with transparent front.
- Brilliant LED light spots with warm white, glare-free light.
- Warm white LED lighting.
- Proximity sensor for automatic activation of light and touch keys for ice and water dispenser.
- Integrated, with fixed inlet water connection.
- Particle filter for water inlet, integrated in ventilation grille area.
- Saturation indicator shown in TFT touch display.
- Ice maker can be switched off independently.
- Ice cube production approx. 2.9 lb (1.1 kg)/24 h.
- Ice cubes and crushed ice.
- Removable ice storage container with approx. 6.6 lbs. (3.2 kg) capacity.
- Chilled water supply approx. 1.3 litres.
- Energy consumption 453.98 kWh/year.
- Noise level 42 dB (re 1 pW).
- Flat hinge.
- Door opening angle of 115(degree), fixable at 90(degree).
- Max. door panel weight 147 lbs. (67kg).
- Shut-off valve for water connection must be planned next to the appliance and always be accessible.
- If the water pressure exceeds 116 psi, connect pressure relief valve between water tap and hose set.
- Total rating 1.079 kWh/24 h.
- Total Amps: 10 A.
- Connecting cable 118" (3.0 m), detachable.
- Cold water connection required.
Electrical location 6" above ground in lower left corner of unit. - Supply hose 47,2 INCH (1.2 m) with 1/4" male compression fitting (standard icemaker connector).
- Water pressure 29 to 116 psi.
- Stainless steel interior with solid anthracite aluminium elements
- Warm white and glare-free LED light spots
- Opening assist for door with two options:
- 1. Push-to-open function for integration into handleless furniture front
- 2. Pull-to-open function to facilitate opening the door using a handle
Specifications
MPN: RF463707
UPC: 825225961161
