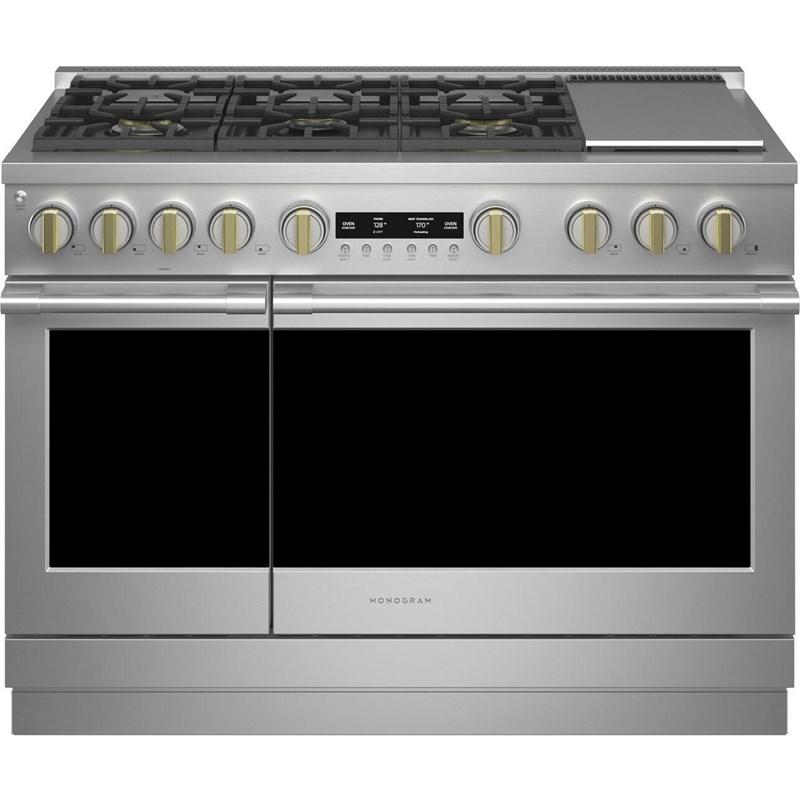

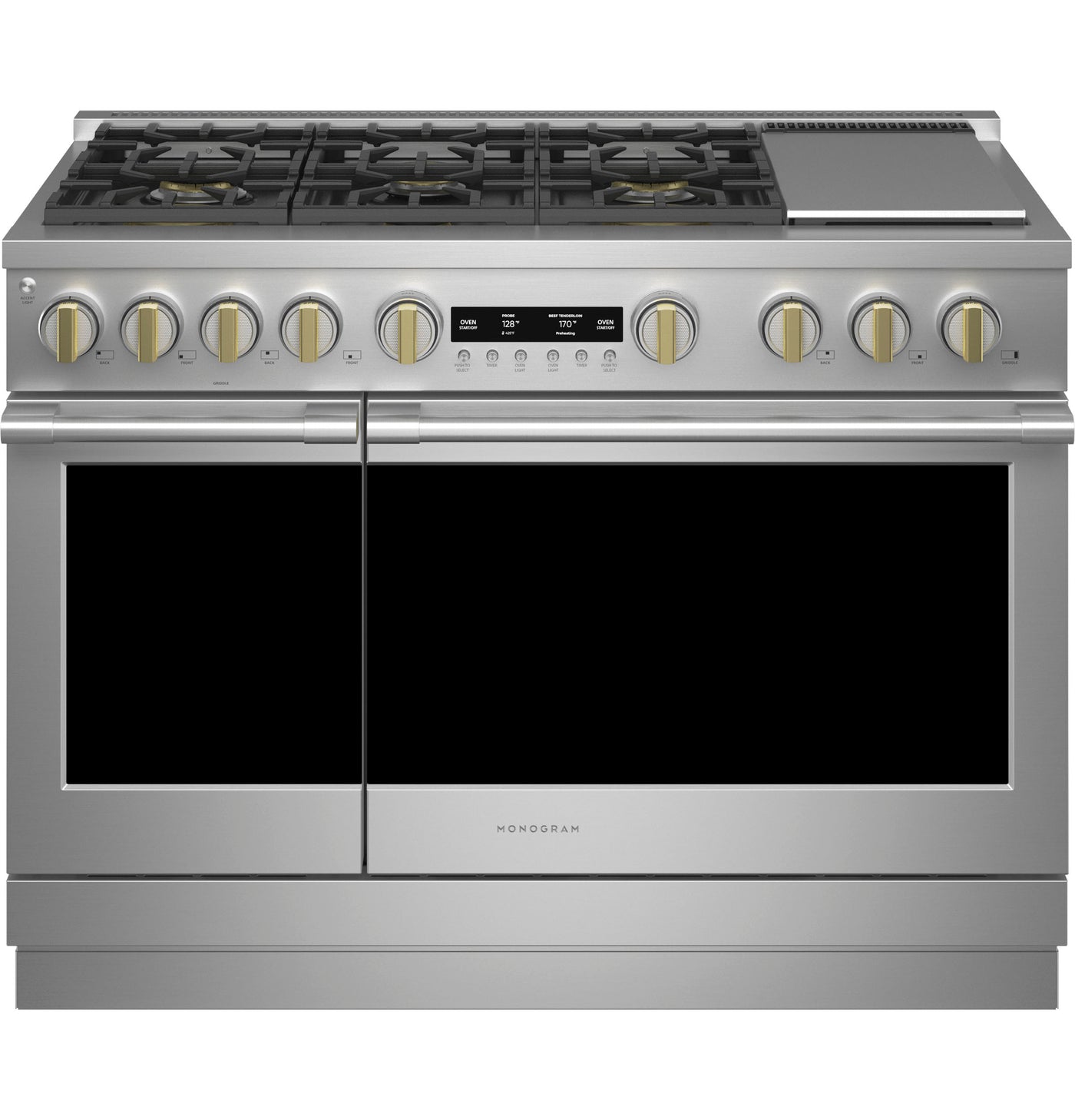

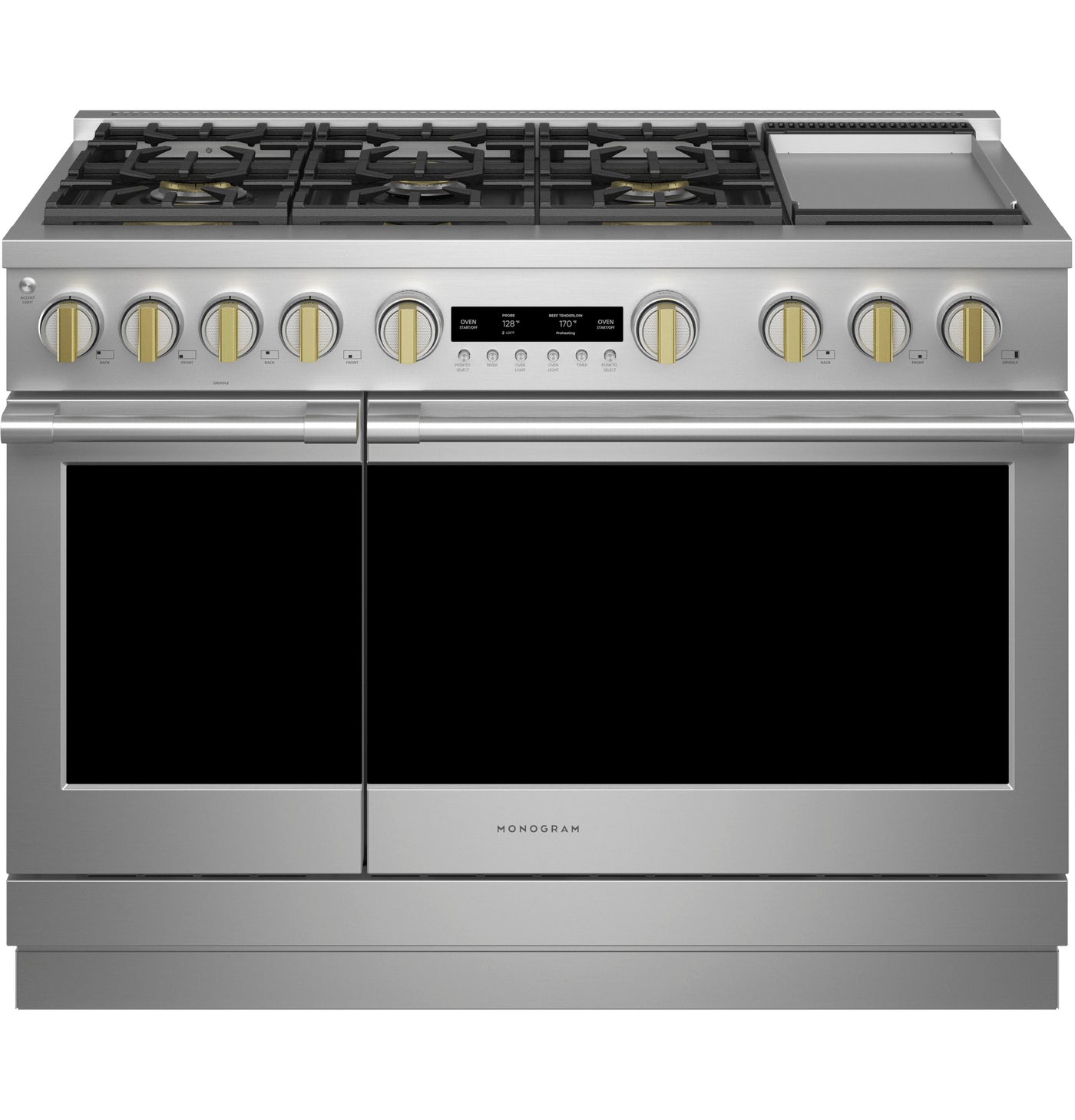

Monogram 48" Dual-Fuel Professional Range - ZDP486NDTSS

Sku: 36M48TSS
The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product.

Payment Options:

  • visa
  • american express
  • master
Maximum quantity available reached.

Versatile Gas Burner Configuration

Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

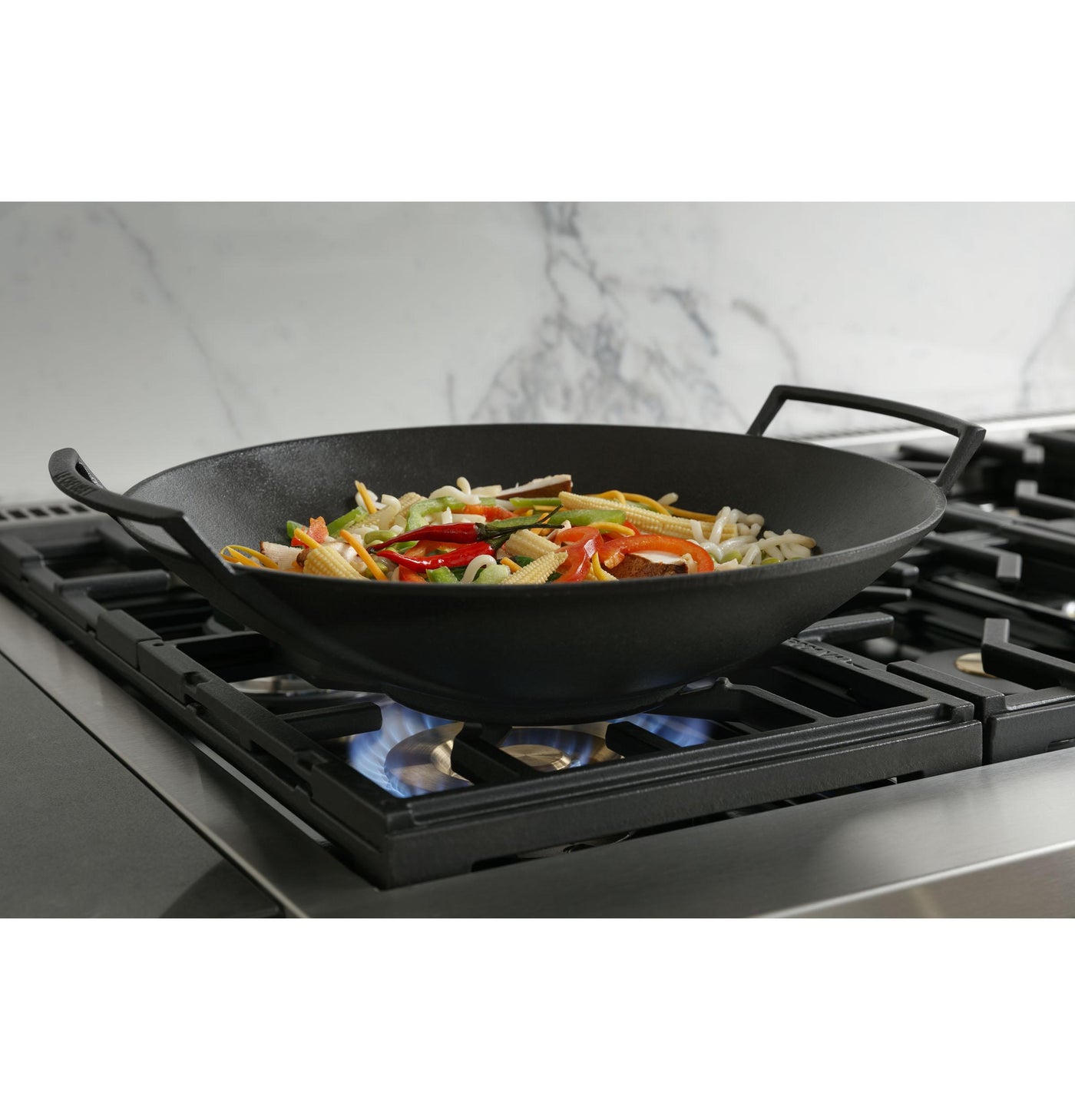

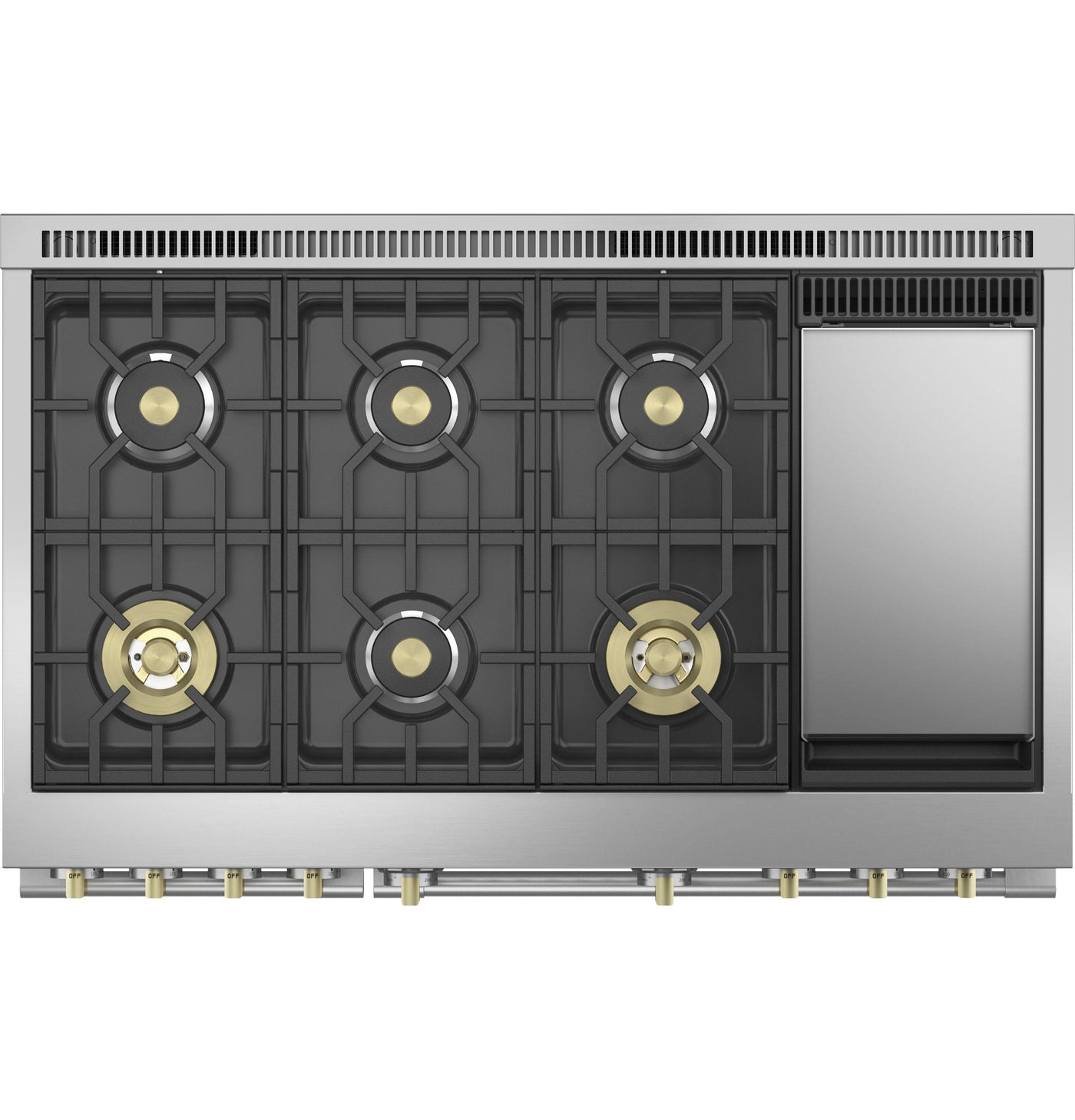

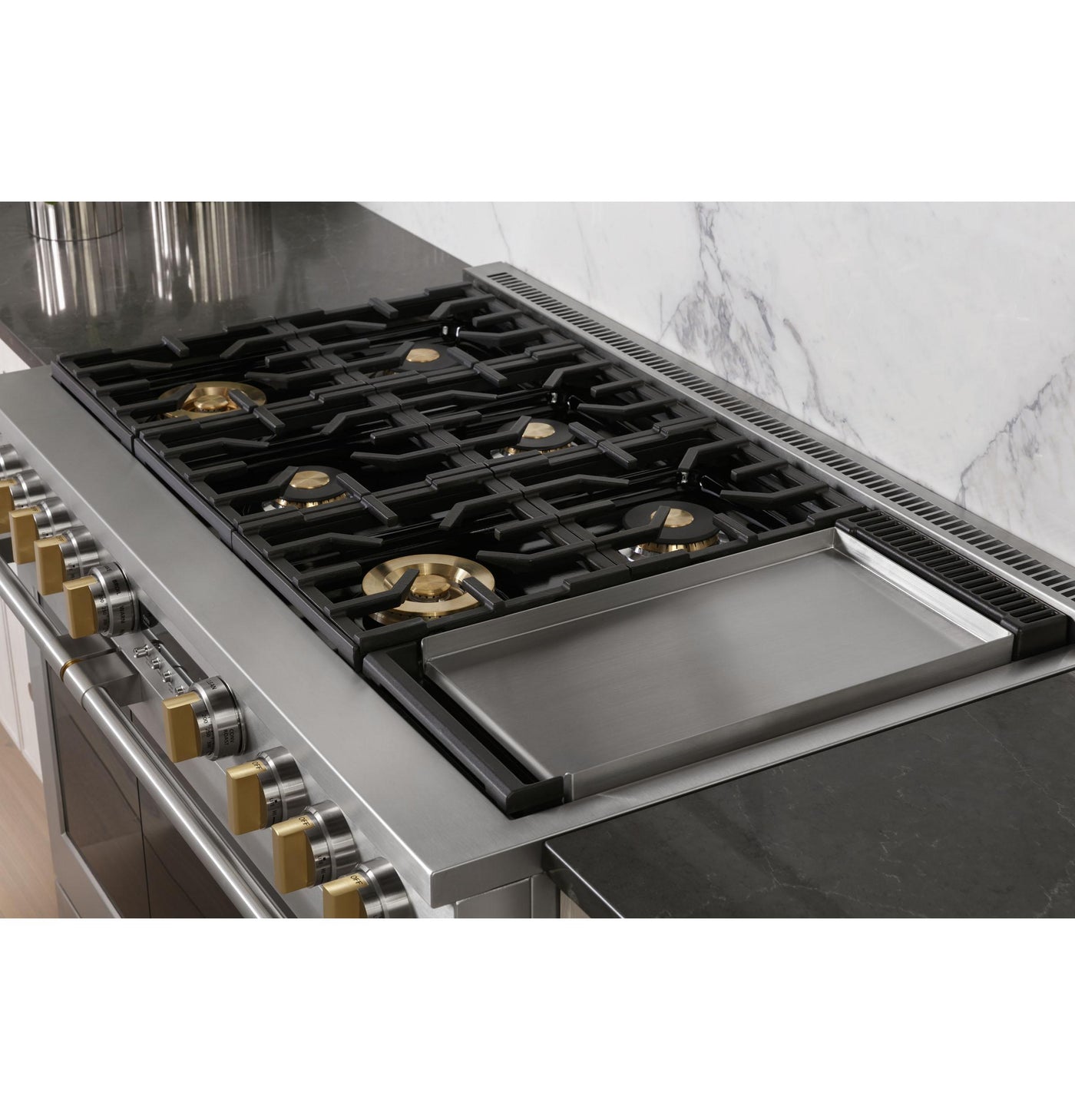

3-Piece Grates with Reversible Wok Feature

Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

WiFi Monitoring and Remote Control with the SmartHQ™ app

Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

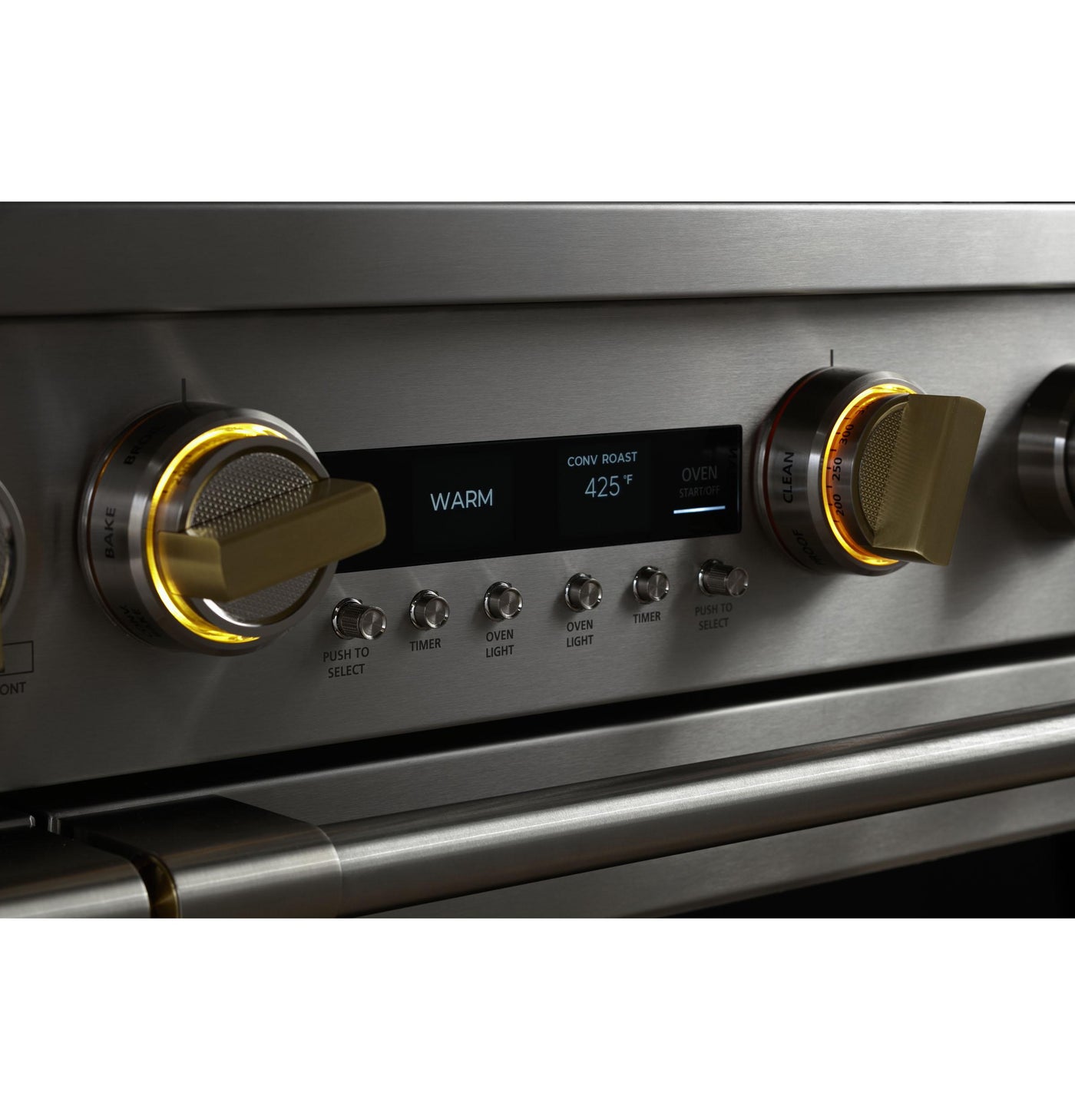

Dynamic Oven LCD

Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp

Solid Brass Burners

Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

Chef Connect

Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

Industry Exclusive - Custom Color LED Accent Lighting

For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen decor or dining ambiance

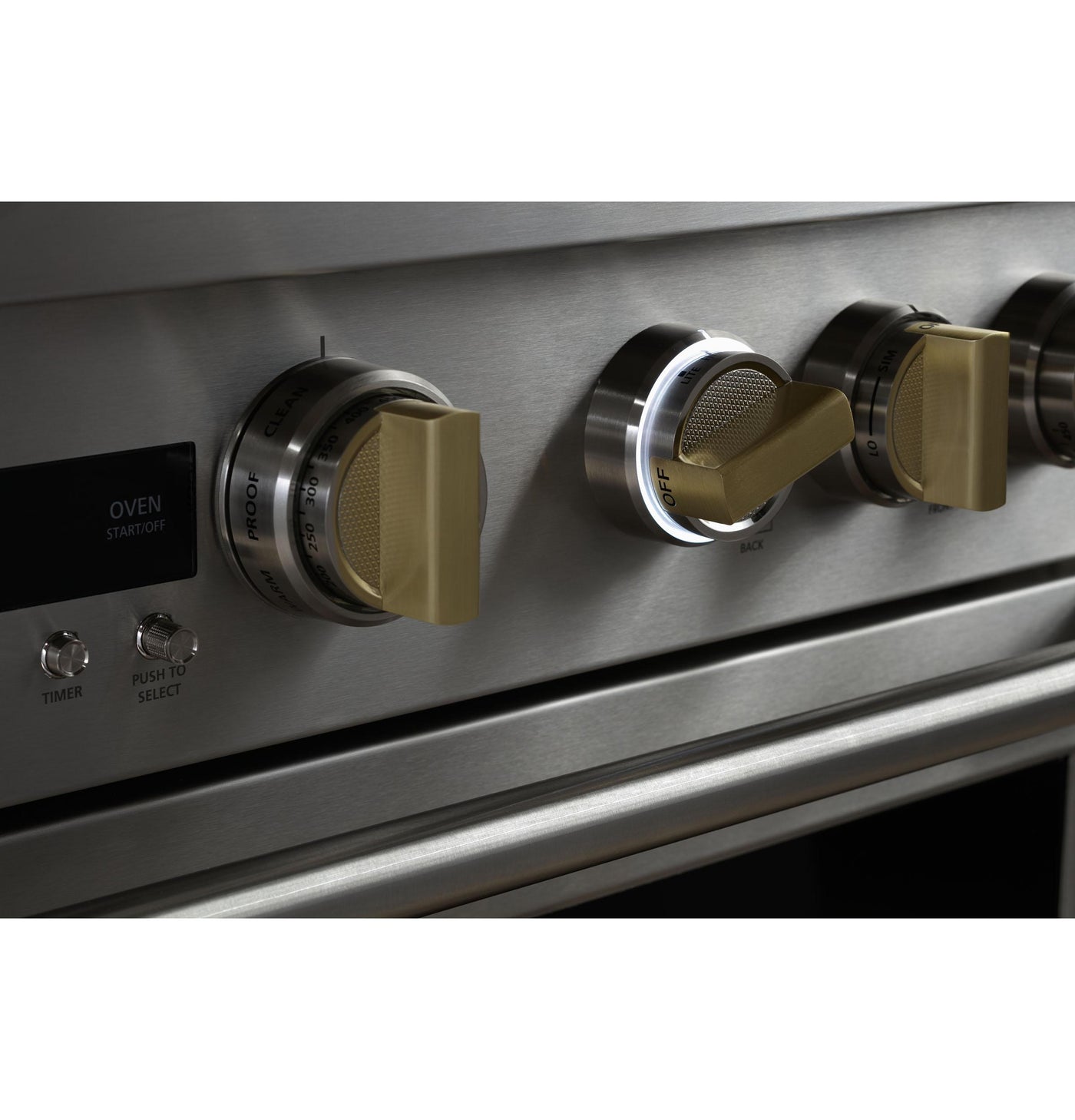

Ring-Lit Knobs

Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

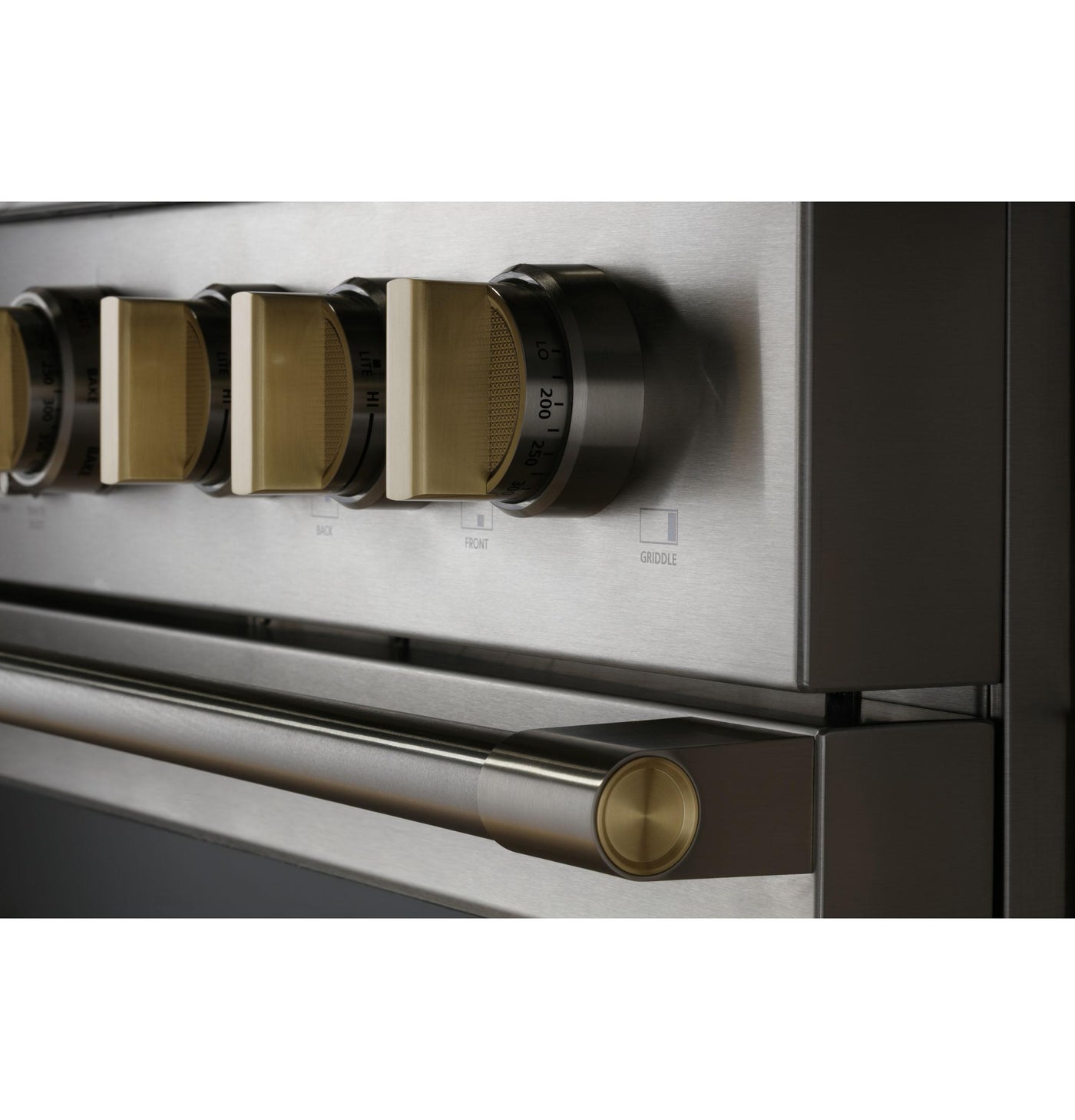

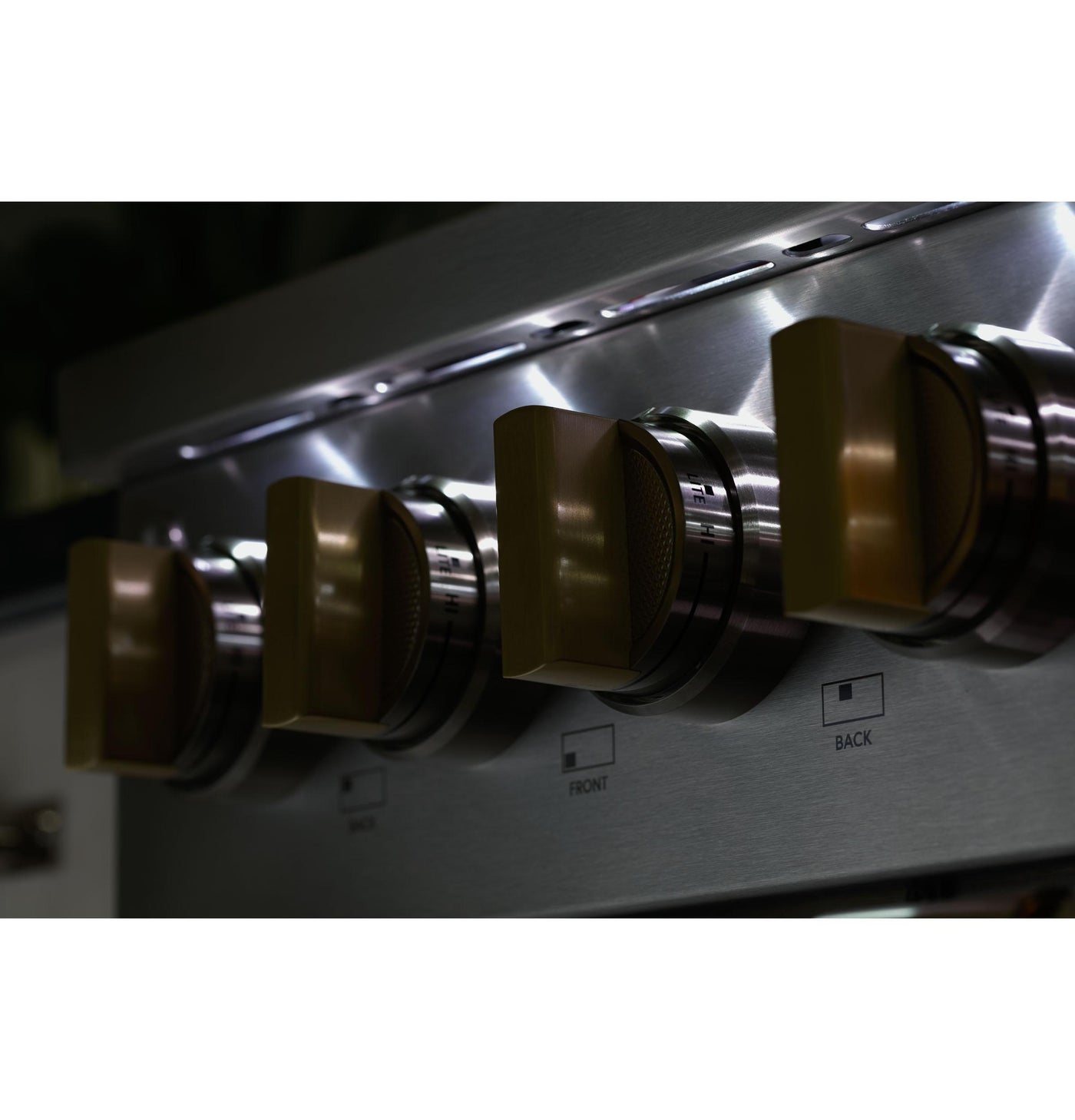

Solid Brass Blades on Precision Machined Knobs

With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

Seamless Stainless Top Frame

Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

Soft-Close Hinges

Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

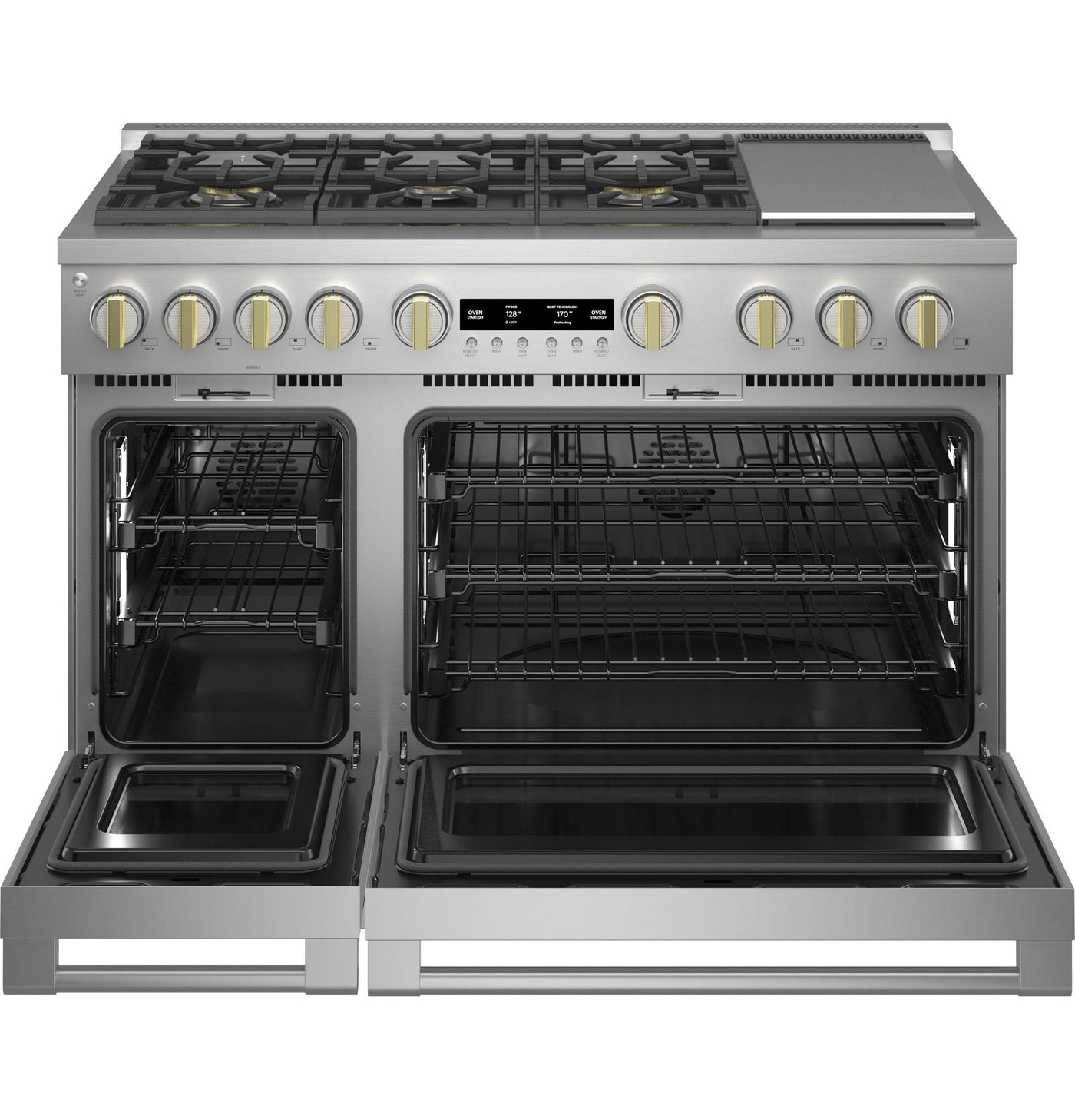

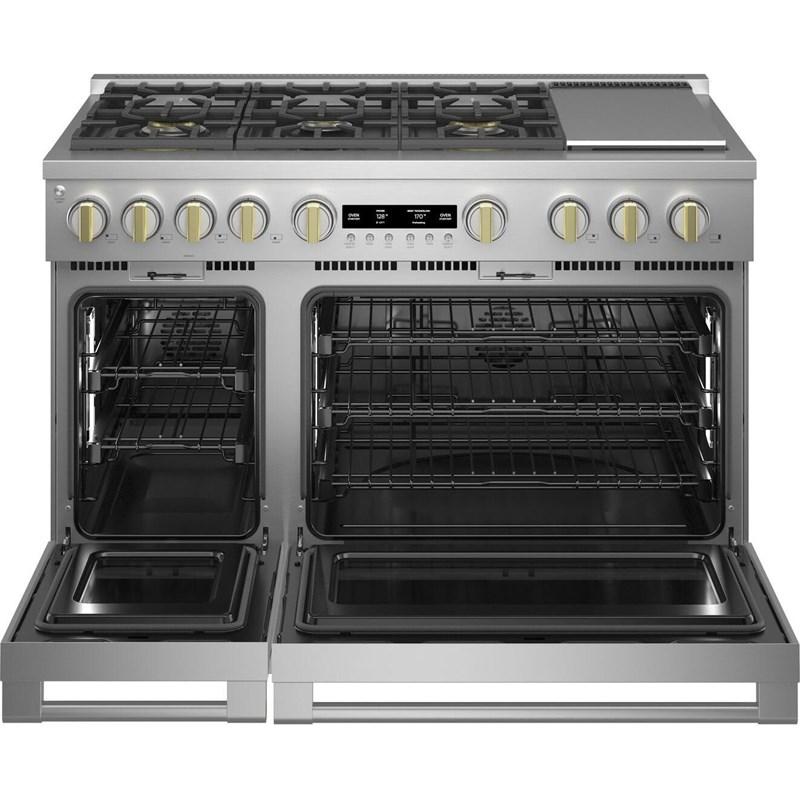

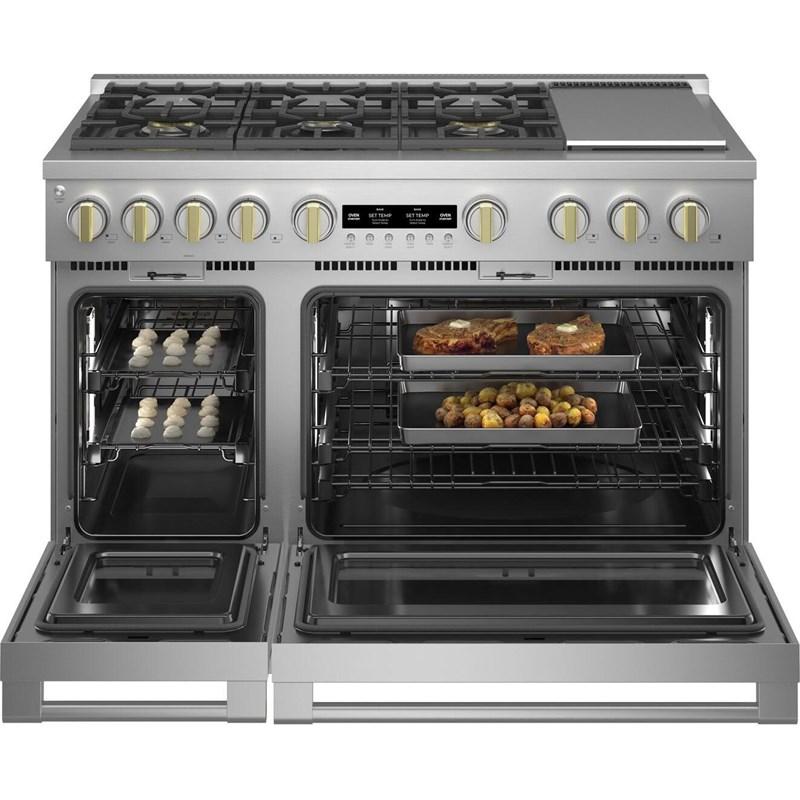

5 Oven Racks (Full-Extension)

Self-clean oven racks glide smoothly in and out on stainless steel ball bearings for easy access and are designed to remain in the oven during the self-clean cycle

Precision Oven Modes with SmartHQ™ app

Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

  • Versatile Gas Burner Configuration
  • 3-Piece Grates with Reversible Wok Feature
  • WiFi Monitoring and Remote Control with the SmartHQ™ app
  • Dynamic Oven LCD
  • Solid Brass Burners
  • Chef Connect
  • Industry Exclusive - Custom Color LED Accent Lighting
  • Ring-Lit Knobs
  • Solid Brass Blades on Precision Machined Knobs
  • Seamless Stainless Top Frame
  • Soft-Close Hinges
  • 5 Oven Racks (Full-Extension)
  • Precision Oven Modes with SmartHQ™ app


Dimensions Width48"Height36"Depth29"
Product Details:

  • Total Capacity (cubic feet)
  • Capacity (Cu. Ft.)
    5.75 Caterer Oven / 2.5 Everyday Oven


  • Control Knobs
    Diecast Metallic (Included)
    Stainless Steel with Brass Accents
  • Design Style
    Statement Collection
  • Toe kick
  • Oven Door Features
    Soft Close Door
  • Color Appearance
    Stainless Steel


  • Bake/Broil Wattage - Companion Oven
  • Top Burner BTU Rating - LP (000's BTU's)
    (2) 21.0; (2) 15.0; (2) 10.0
  • Convection Wattage
    2500W (Main Oven); 1500W (Companion Oven)
  • Griddle BTU Rating (000's/BTU) - Natural Gas
  • Griddle BTU Rating (000's/BTU) - LP Gas
  • Bake/Broil Wattage - Main Oven
  • Electrical Requirements
    240VAC; 50A
  • Top Burner BTU Rating - Nat. Gas (000's BTU's)
    (2) 23.0; (2) 18.0; (2) 15.0


  • Warranty Notes
    See written warranty for full details
  • Parts Warranty
    Limited 2-year entire appliance
    Limited 5-year gas surface burners
    Limited lifetime of oven racks
  • Labor Warranty
    Limited 2-year entire appliance


  • Optional Backguard
    12" stainless steel backsplash (UX12BS48PSS)
    30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS)
  • High Altitude Kit
    Natural Gas: WB28X39726; LP: WB28X39727
  • Multi Ring Burner Caps (Brass)
  • 48" Monogram Knob Kit
    ZXPR48KKTSS (SS, qty. 11)
  • Multi Ring Burner Caps (Black)
  • LP Conversion Kit
  • Factory-installed island backguard
  • Reversible Griddle/Grill Accessory


  • Net Weight
  • Height to Cooking Surface (in.)
    35 1/4 to 36 3/4
  • Overall Depth
  • Height w/Legs Extended - Maximum Height
  • Height With Legs Retracted
  • Overall Width
  • Overall Height
  • Approximate Shipping Weight
  • Cabinet Width


  • Oven Cleaning Type
    Self-Clean (Both Ovens)
    Steam Clean (Both Ovens)
  • Cooktop Burner Type

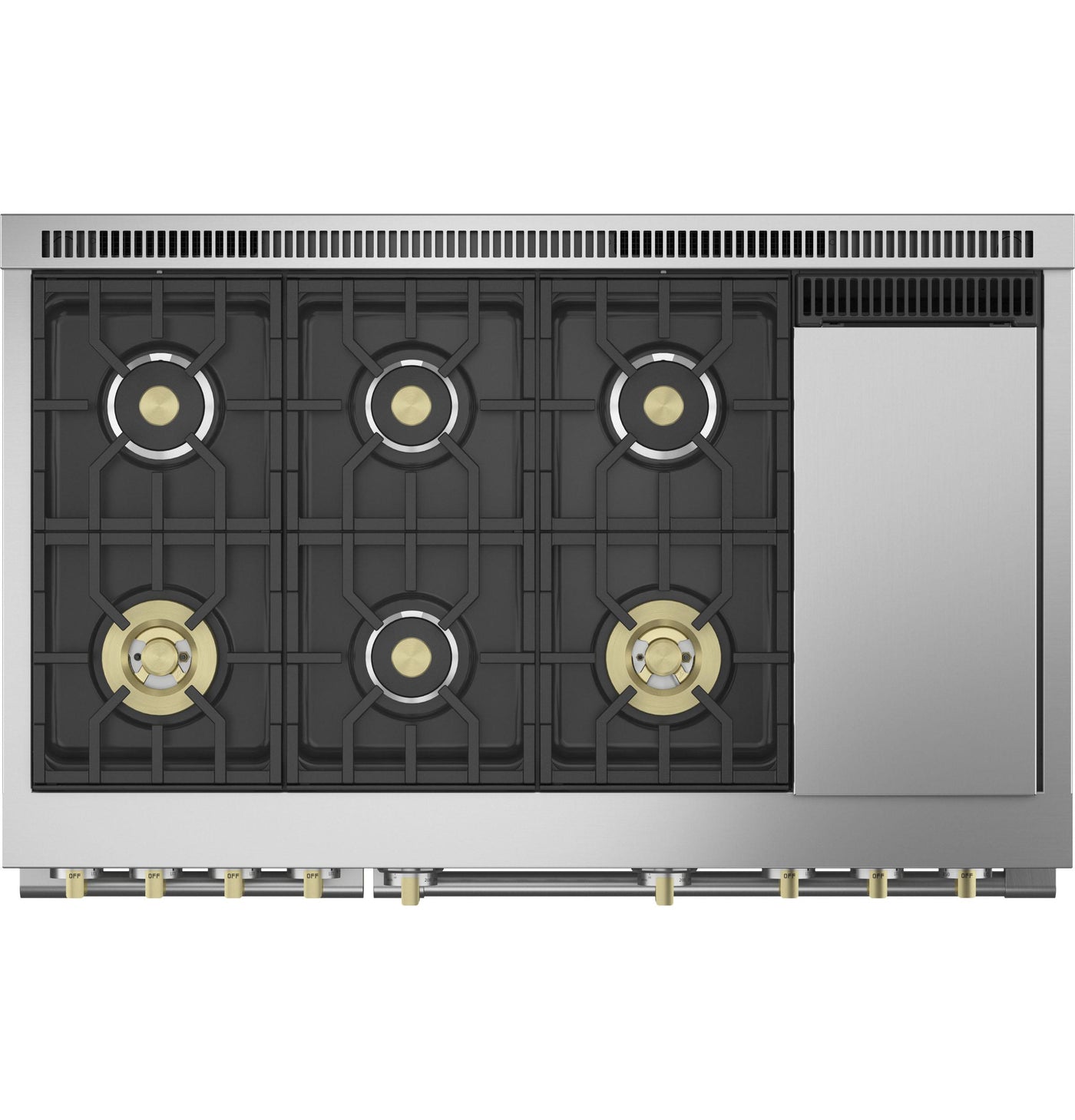

    2 Sealed, Dual Flame Stacked (Removable Brass Accents)
    4 Sealed, Dual Flame Stacked
  • Cooktop Burner Grate Features
    Continuous Grates
    Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
  • Cooking System
    Reverse Air Convection
    True European Convection
  • Oven Rack Features
    3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven)
    4 Rack Positions (Everyday Oven)
    5 Rack Positions (Caterer Oven)
  • Oven Features
    4-Pass Bake Element (Everyday Oven)
    4-Pass Broil Element (Everyday Oven)
    8-Pass Bake Element
    8-Pass Broil Element
    Hidden Bake
  • Fuel Type
    Dual Fuel (with natural gas)
  • Cleaning Time
    3-5 Hours (Both Ovens)
  • WiFi Connect
  • Cooking Technology
  • Cooktop Surface
  • Indicator Lights
    Burner "On"
  • Connected Capabilities
  • Configuration
    6 Burners; Griddle
  • Lighting
    LED Bullnose Task Lighting
  • Removable Grease Trough
    (1) Beneath Griddle
  • Self-Clean Oven Door Lock
  • Control Type
    Digital Temperature LCD Display (Both Ovens) with Timer Display
  • Oven Cooking Modes
    Convection Bake Multi-Rack (Both Ovens)
    Convection Broil Hi/Lo (Both Ovens)
    Convection Crisp
    Convection Roast (Both Ovens)
    No-Preheat Air Frying (Both Ovens)
    Precision Cooking Modes
    Proof (Both Ovens)
    Warming (Both Ovens)
  • Convection Roasting Rack
  • Ignition System
    Electronic w/Auto Reignition
  • Griddle
    Stainless Steel and Aluminum Clad
    Thermostatically Controlled
  • Oven Control Features
    12-Hour Shut-Off Capability
    Audible Preheat Signal
    Auto Recipe Conversion
    Automatic Oven Meat Probe (Both Ovens)
    Certified Sabbath Mode
    Chef Connect
    Cook Time
    C(degree) or F(degree) Programmable
    Delay Clean Option (Both Ovens)
    Probe Mode
    Proof Mode (Both Ovens)
    Remote Enabled
    Self & Steam Clean Modes
    WiFi Connect
  • Stainless Steel Grill / Griddle Covers
  • Interior Oven Light
    3 Halogen Lamps (Everyday Oven)
    6 Halogen Lamps (Caterer Oven)
  • Cooktop Type
    Continuous Grates
  • Broiler Pan and Grid
  • Extra Low Simmer
    All Burners - Adjustable
