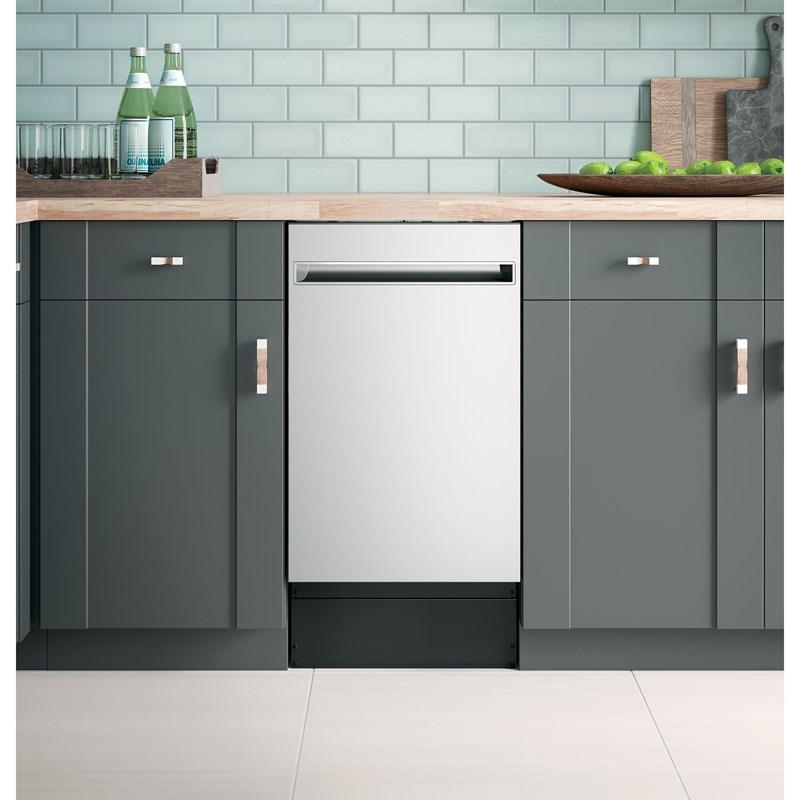

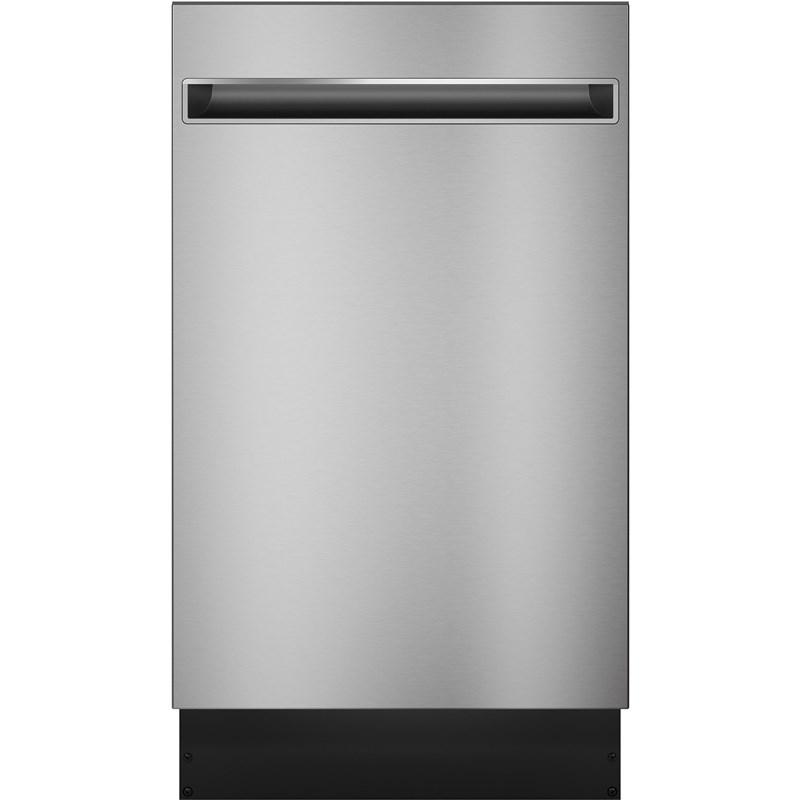

Haier 18" top control built-in dishwasher with fully integrated electronic controls. It features 3 level wash, autosense cycle, sanitize (NFS Certified) and ADA compliant with low-profile installation.
ENERGY STAR QUALIFIEDMeets the ENERGY STAR energy efficiency requirements

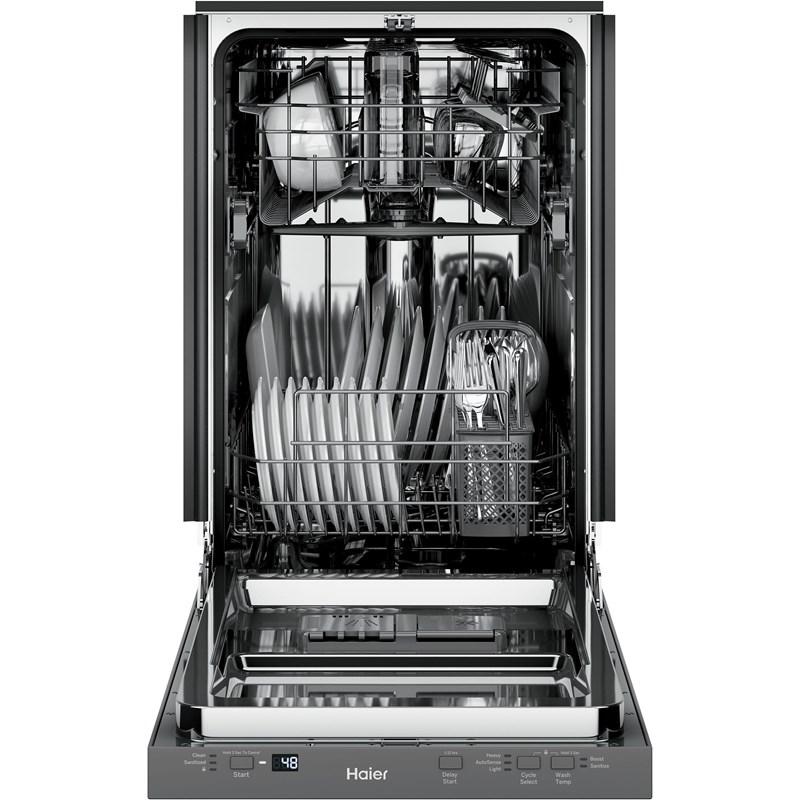

STAINLESS STEEL INTERIOR
Features a sharp appearance that stands up to tough stains.
NSF® Certified Sanitize rinse
Works to eliminate 99% of food soil bacteria.

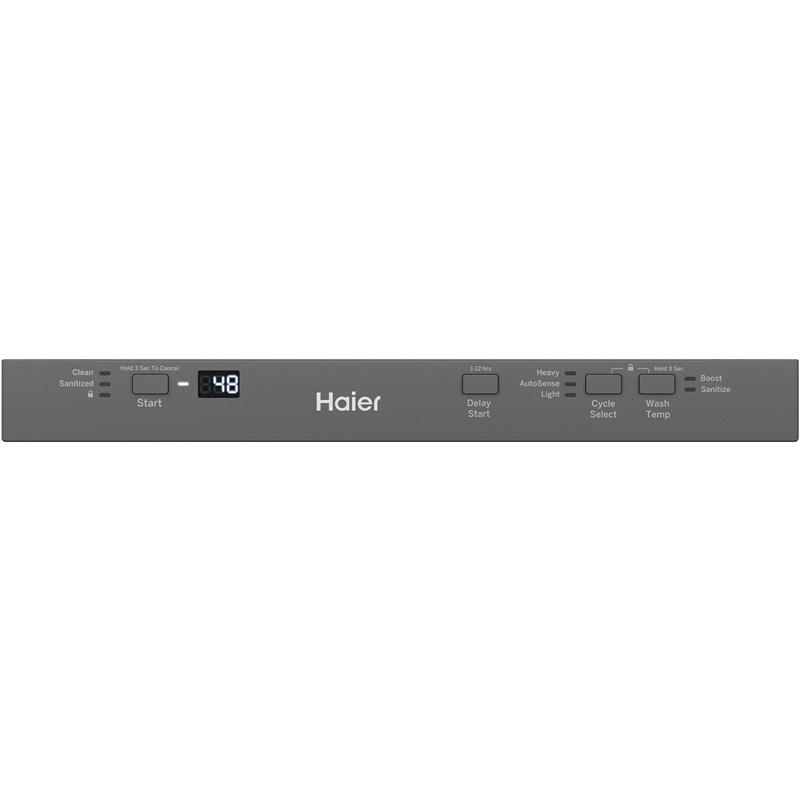

FULLY INTEGRATED LIGHT-TOUCH ELECTRONIC CONTROLS
Hidden controls maintain a smooth appearance and control pad requires the slightest touch
Features
- Control Lock:
Y - Silverware Basket:
Y - Additional Information:
• Single speed motor
• Rinse aid with indicator and adjustment dispenser
• Automatic temperature control
• Flood control system
• Dual pump
• Condensate dry
• 3 digit countdown display with 1 "Clean" light / 1 "Sanitized" light cycle progress indicators
• Audible end-of-cycle signal
• Last cycle memory
• Start/Reset pad
• 3-Stage manual clean filtration
• 1 piece mid silverware basket with 1 cell cover
• 1 plastic utility shelf - upper
• Ball-tipped tines
• Stem safe - Filtration System:
Y - Technologies:
• Piranha™ hard food disposer
• Automatic HotStart - Delay Start:
Y - Delay Start Information:
1-12-Hour - 3rd Rack System:
N - Cutlery Tray:
N
Accessories
- Optional:
ConnectPlus: PVX10W00Y0
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
- Energy Guide (en)
Specifications
Control Lock
YSilverware Basket
YAdditional Information
• Single speed motor
• Rinse aid with indicator and adjustment dispenser
• Automatic temperature control
• Flood control system
• Dual pump
• Condensate dry
• 3 digit countdown display with 1 "Clean" light / 1 "Sanitized" light cycle progress indicators
• Audible end-of-cycle signal
• Last cycle memory
• Start/Reset pad
• 3-Stage manual clean filtration
• 1 piece mid silverware basket with 1 cell cover
• 1 plastic utility shelf - upper
• Ball-tipped tines
• Stem safeFiltration System
YTechnologies
• Piranha™ hard food disposer
• Automatic HotStartDelay Start
YDelay Start Information
1-12-Hour3rd Rack System
NCutlery Tray
NEnergy Star Certified
YADA Compliant
YNSF® Certified
YInformation
• 120V
• 60Hz
• 8.9A
• Calrod Heater: 1100WWash Cycles
• Auto sense
• Heavy wash
• Light washNumber of Cycles
3Options
• Start/Reset
• Child lock
• Delay start 1-12 Hr.
• TempBoost
• Sani (NSF Certified)Width
45.72 cmHeight (Min.)
82.55 cmWeight
32.66 kgAdditional Dimensions
• Cabinet width: 18"
• Height with legs retracted: 32-3/8 - 34-5/8Depth (Including Handle)
57.15 cmClass Width
18"Silence Rating
47 dBManufacturer Color
Stainless SteelPlace Settings
8Color
Stainless SteelType
Built-InTub Material
Stainless SteelWarranty
Limited 1-year warranty on entire appliance for parts and laborHeight
91.44 cmWeight
38.56 kgDepth
67.31 cmWidth
52.07 cmOptional
ConnectPlus: PVX10W00Y0UPC#
084691830146
