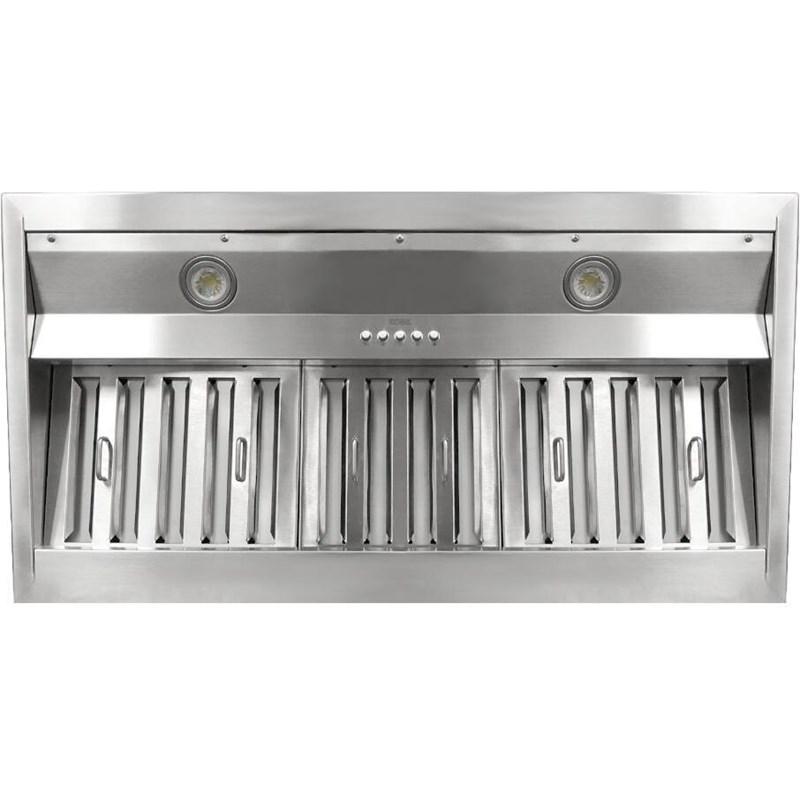

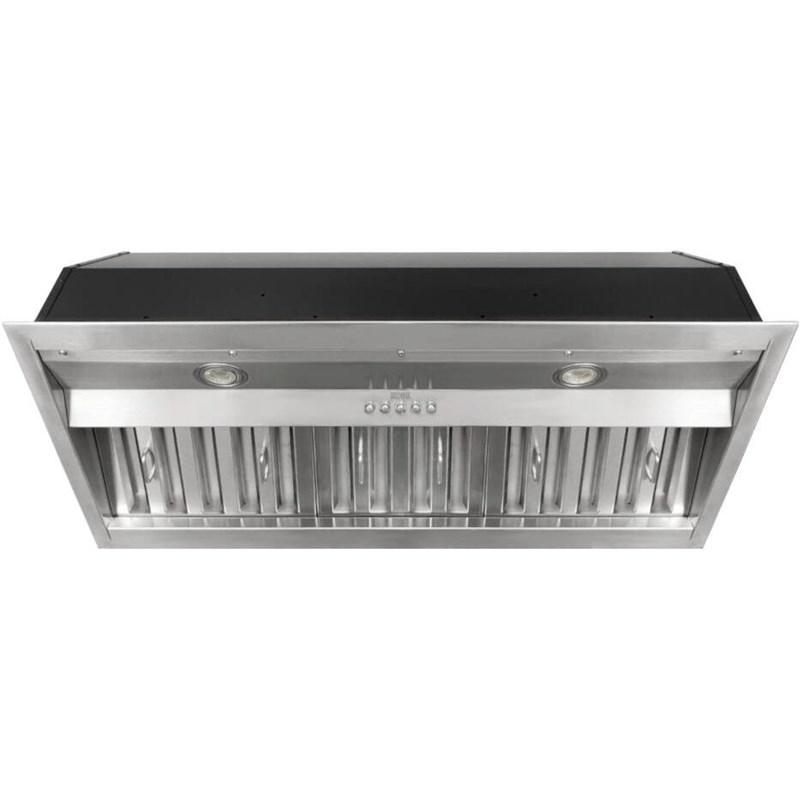

KOBE INX26 Series built-in / insert range hood is available in 30" and 36". This range hood is beautifully handcrafted with 20-gauge commercial grade stainless steel and will fit with custom cabinetry without the need for a liner. High performance with 630 CFM Internal Blower and operates quietly at 2.0 sone on QuietMode. It is equipped with 3-speed mechanical push button, dishwasher-safe baffle filters, and LED Lights. Optional liner INL36252B is available for 30" hood only.
Features
- Ducting Information:
• Top – 6" Round
• Top – 3-1/4" x 10" Rectangular
• Rear – 6" Round
• Rear – 3-1/4" x 10" Rectangular - Additional Information:
• CFM / Sone: 180 to 630
• QuietMode™: 2.0 Sone / 61 dB
• LED Light: 2 x Lights (3W)
• Control: Mechanical Push Button
• Baffle Filter - Dishwasher-Proof Filters:
Y - Speeds:
3 Speeds
Accessories
- Optional:
30" Stainless Steel Back Splash – Model No. SSP30
Documents
Specifications
Optional
30" Stainless Steel Back Splash – Model No. SSP30Depth
46.99 cmHeight
30.48 cmWidth
91.44 cmClass Width
36"Series Name
Brillia INX26Style
Custom InsertManufacturer Color
Stainless SteelColor
Stainless SteelInstallation
Built-InBlower Included
YAirflow
630 CFMDucting Information
• Top – 6" Round
• Top – 3-1/4" x 10" Rectangular
• Rear – 6" Round
• Rear – 3-1/4" x 10" RectangularAdditional Information
• CFM / Sone: 180 to 630
• QuietMode™: 2.0 Sone / 61 dB
• LED Light: 2 x Lights (3W)
• Control: Mechanical Push Button
• Baffle FilterDishwasher-Proof Filters
YSpeeds
3 SpeedsInformation
224W / 1.5A
