About this Product

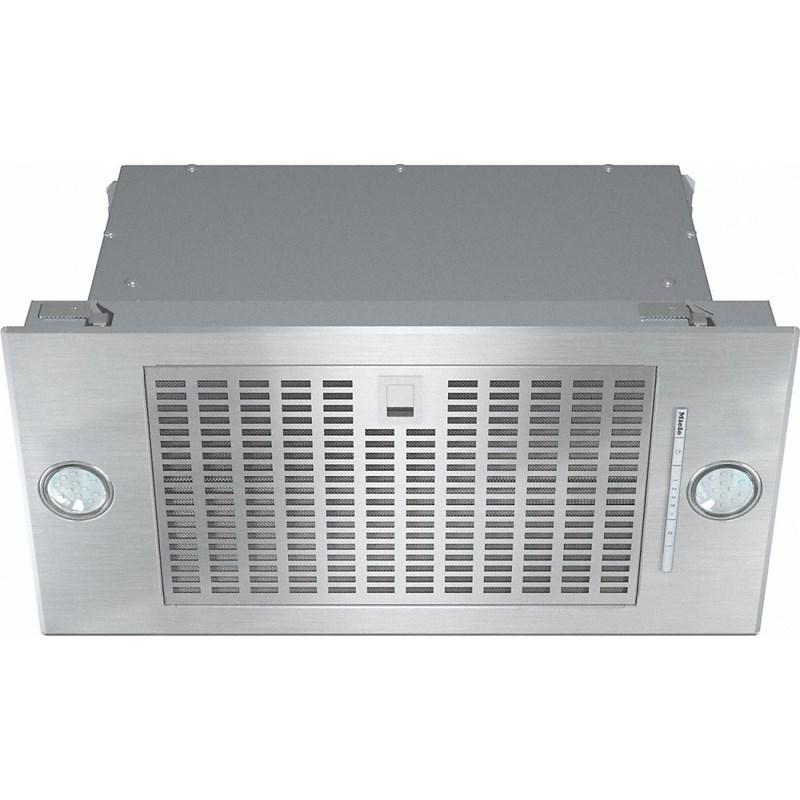

Miele Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use. It features 10-layer stainless-steel grease filters and easy cleaning CleanCover that is a sealed, smooth surface that prevents contact with the electrical components/motor.
Features
- MIELE CLEANCOVER — Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
- STAINLESS STEEL GREASE FILTERS — Convenient cleaning: The high-quality 10-layer metal grease filters are dishwasher-proof and extremely durable.
- LED CLEARVIEW LIGHTING — Specially designed for select Miele ventilation hoods, LED ClearView lighting shines a more natural light to highlight the pure color and texture of your food, but also saves energy. This long lasting LED lighting is tested to last the 20 year life cycle of your hood.
- HIGH-QUALITY AND POWERFUL MOTORS — Powerful and quiet: radial fans on both sides ensure high air throughput and extraction with low noise levels.
- ACTIVE AIRCLEAN FILTER — Efficient in absorbing odors: In recirculation mode odors are absorbed and neutralized completely.
- HANDCRAFTED IN GERMANY — Know-how and craftsmanship: Miele's expertise goes into every ventilation hood, from development to finished product.
- PERFECT CRAFTSMANSHIP — Unique characteristics of Miele hoods: precise contours and precision joints.
- SAFETY SWITCH-OFF — SENSIBLE, EVEN IN CASE OF OPERATING ERRORS: THE RANGEHOOD WILL SWITCH ITSELF OFF AUTOMATICALLY AFTER 10 OPERATING HOURS.
Documents
Highlights

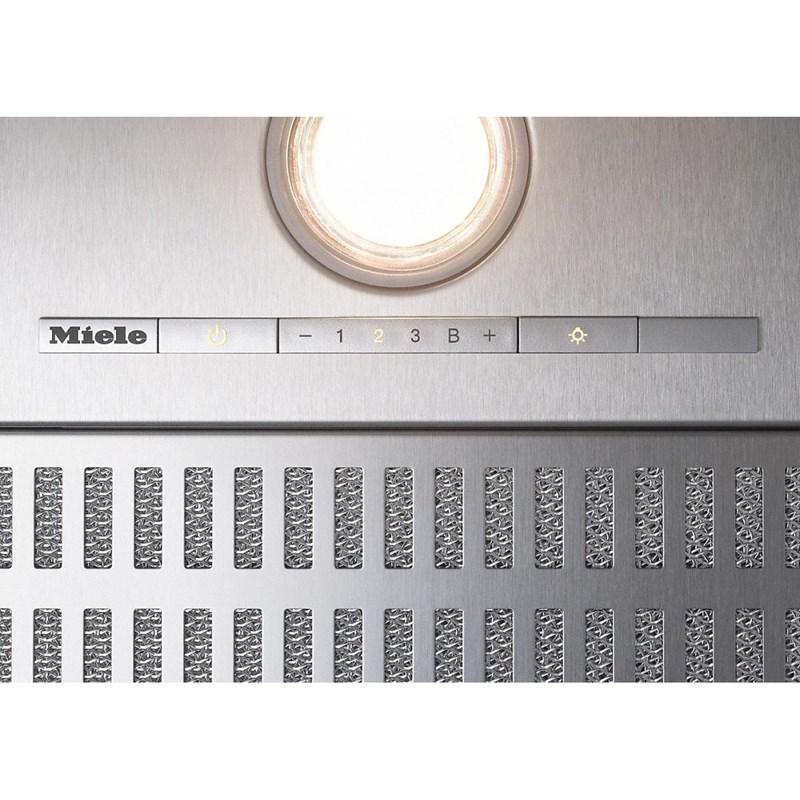

Electronic backlit controls | Dishwasher-safe stainless steel grease filter | Safety shut-off | Non-return flap standard accessory
Specifications
| Weight | 11.34 kg | Depth | 29.85 cm | Height | 6.35 cm |
| Width | 58.42 cm | Class Width | 24" | Warranty | 1-Year limited warranty on parts and labor |
| Dishwasher-Proof Filters | Y | Style | Custom Insert | Color | Custom |
| Installation | Built-In | Blower Included | Y | ||
|
Additional Dimensions Minimum distance above electric cooktops in in.(mm): 24 1/8 (610) | Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm: 26 (660)
| |||||
|
Ducting Information Convertible recirculated mode | Vent connection at top | Vent connection at top and rear | Diameter of vent connection in in.(mm): 6 (150)
| |||||
|
Speeds Power levels (number excl. Intensive): 3 | Intensive setting
| |||||
|
Technologies EasyClean CleanCover hood liner | LED ClearView lighting
| |||||
|
Information Total connected load in kW: 0.36 | Voltage in V: 120 | Fuse rating in A: 15 | Number of phases: 1
| |||||
|
Included Dual-action blower | AC motor
| |||||
Accessories
• AC motor
Specifications
Weight
11.34 kg
Depth
29.85 cm
Height
6.35 cm
Width
58.42 cm
Class Width
24"
Warranty
1-Year limited warranty on parts and labor
Dishwasher-Proof Filters
Y
Style
Custom Insert
Color
Custom
Installation
Built-In
Blower Included
Y
Additional Dimensions
Minimum distance above electric cooktops in in.(mm): 24 1/8 (610) | Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm: 26 (660)
Ducting Information
Convertible recirculated mode | Vent connection at top | Vent connection at top and rear | Diameter of vent connection in in.(mm): 6 (150)
Additional Information
Electronic backlit controls | Dishwasher-safe stainless steel grease filter | Safety shut-off | Non-return flap standard accessory
Speeds
Power levels (number excl. Intensive): 3 | Intensive setting
Technologies
EasyClean CleanCover hood liner | LED ClearView lighting
Information
Total connected load in kW: 0.36 | Voltage in V: 120 | Fuse rating in A: 15 | Number of phases: 1
Included
Dual-action blower | AC motor
