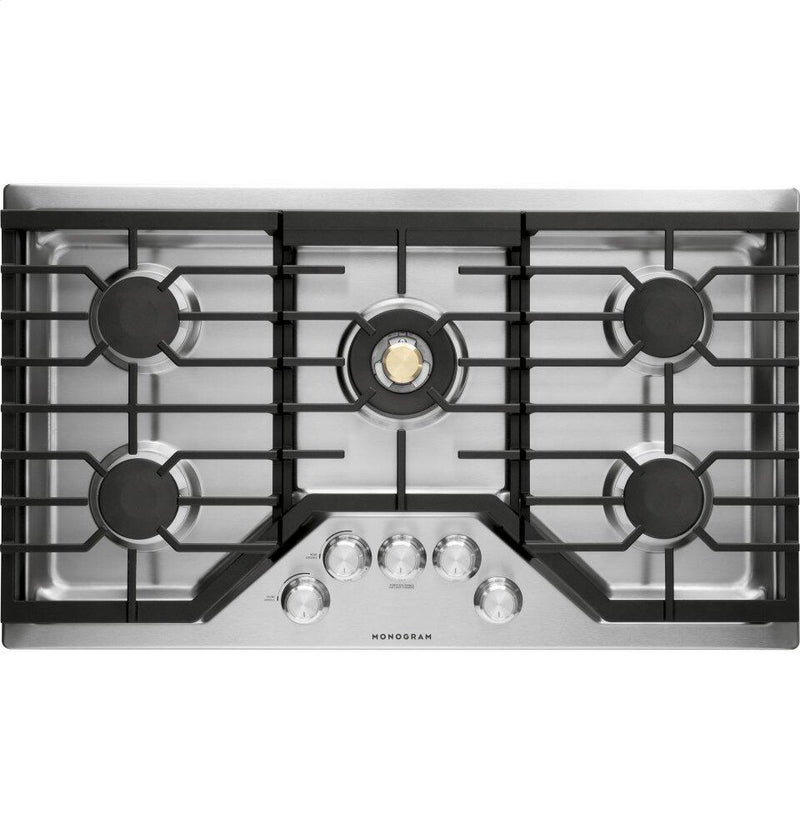

Monogram 36" deep-recessed gas cooktop with dual-flame stacked burners that provide complete 140F simmer-to-rapid-boil flexibility on all burners. The embedded sapphire glass illuminate each knob, making it easy to view and select heat settings. The continuous grates are designed for even cooking and simple movement of cookware across the surface.
PRECISION KNOBSWith embedded sapphire glass illuminate each knob making it easy to view and select heat settings
DUAL-FLAME STACKED BURNERS
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning
TRI-RING BURNER
Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and sautéing
CONTINUOUS GRATES
Designed for even cooking and simple movement of cookware across the surface
ELECTRONIC IGNITION
Ensures a continuous flame and reignites automatically if accidentally extinguished
HIGH-OUTPUT COOKING
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs
Features
- Wi-Fi:
N - Digital Display:
N - Downdraft Ventilation:
N - Additional Information:
• Direct electronic ignition system
• Automatic re-ignition
• Dual flame stacked burners
• Burner indicator light
• Valves (Degree of turn): 270
• White LED backlit knobs - Clock:
N - Control Lock:
N
Accessories
- Included:
• Griddle: JXGRIDL236
• Nat. Gas to LP conversion kit
Documents
Specifications
Surface Features
Cast-iron, porcelainized continuous gratesBurners
SealedBurners/Elements
5Power Output
• Left front: 10,000 BTU Dual
• Left rear: 10,000 BTU Dual
• Right front: 12,000 BTU Dual
• Right rear: 10,000 BTU Dual
• Center: 20,000 BTU Tri-ring Brass CapWi-Fi
NDigital Display
NDowndraft Ventilation
NAdditional Information
• Direct electronic ignition system
• Automatic re-ignition
• Dual flame stacked burners
• Burner indicator light
• Valves (Degree of turn): 270
• White LED backlit knobsClock
NControl Lock
NInformation
• 120V
• 60Hz
• 5.0AHeight
20.00 cmWidth
91.44 cmClass Width
36"Additional Dimensions
Cutout dimensions (WxD): 33-7/8" x 19-1/8"Weight
26.76 kgDepth
53.34 cmType
Built-InFuel Type
Natural GasManufacturer Color
Stainless SteelColor
Stainless SteelADA Compliant
YIncluded
• Griddle: JXGRIDL236
• Nat. Gas to LP conversion kitWidth
69.34 cmHeight
31.24 cmDepth
99.06 cmWeight
29.48 kgWarranty
Limited 2-year warranty on parts and labor for entire applianceUPC#
084691822516
