Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the 21,000-BTU multi-ring brass burner and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

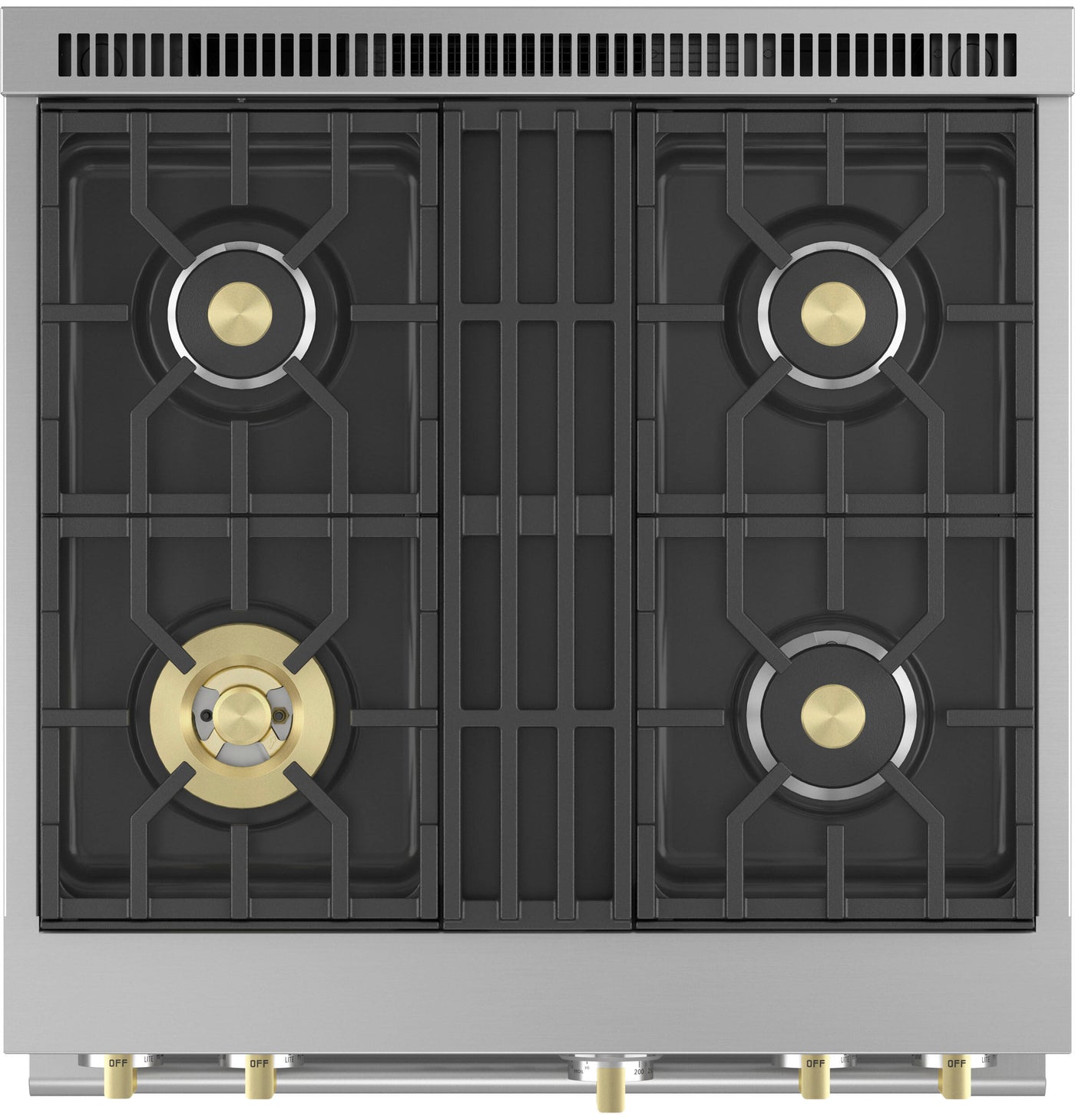

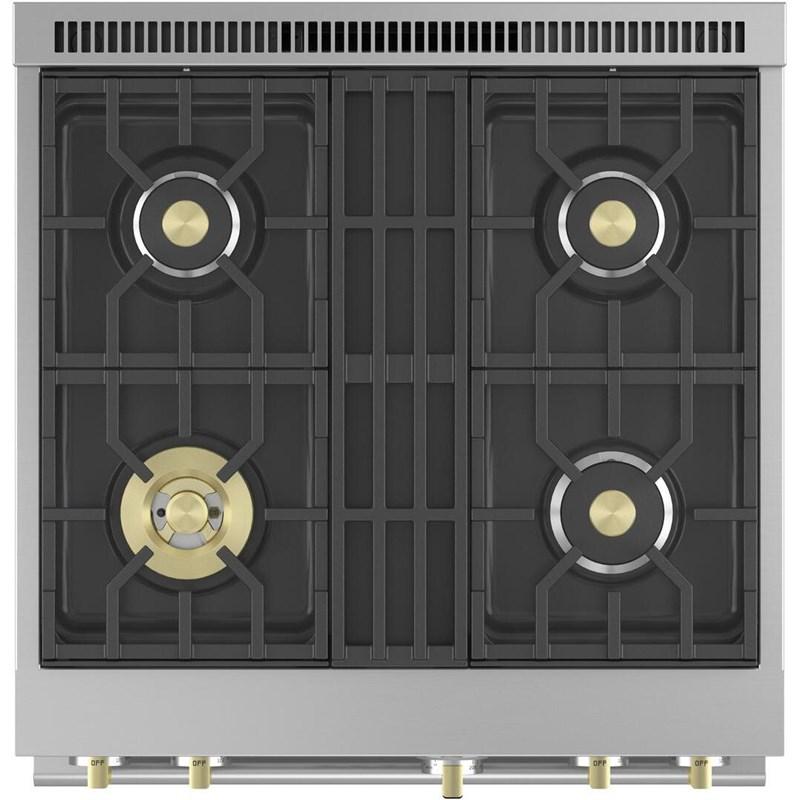

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
WiFi Monitoring and Remote Control with the SmartHQ™ app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
Industry Exclusive - Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen decor or dining ambiance
Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven
Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
Soft-Close Hinges
Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement
2 Oven Racks (Full-Extension), 1 Low Profile
Oven racks glide smoothly in and out on stainless steel ball bearings for easy access
Precision Oven Modes with SmartHQ™ app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
Precise Air Convection System
Designed to optimize air movement in the oven, the convection fan system automatically adjusts airflow - forwards or backwards - depending on the oven mode being used
- Versatile Gas Burner Configuration
- 3-Piece Grates with Reversible Wok Feature
- WiFi Monitoring and Remote Control with the SmartHQ™ app
- Dynamic Oven LCD
- Chef Connect
- Industry Exclusive - Custom Color LED Accent Lighting
- Ring-Lit Knobs
- Solid Brass Blades on Precision Machined Knobs
- Seamless Stainless Top Frame
- Soft-Close Hinges
- 2 Oven Racks (Full-Extension), 1 Low Profile
- Precision Oven Modes with SmartHQ™ app
- Precise Air Convection System
Specifications
control type
Digital Temperature LCD Display with Timer Displayignition system
Electronic w/Auto Reignitioninstallation
Semi-Flush Installation Capablecolor appearance
Stainless Steelwarranty notes
See written warranty for full detailsparts warranty
Limited 2-year entire applianceLimited 5-year gas surface burnersLimited lifetime of oven rackslabor warranty
Limited 2-year entire appliancenet weight
351overall depth
28.25overall width
29.875overall height
35.25approximate shipping weight
391design style
Statement Collectioncontrol knobs
Diecast Metallic (Included)Stainless Steel with Brass Accentsoven door features
Soft Close Doortop burner btu rating - lp (000's btu's)
(1) 21.0; (1) 15.0; (2) 12.0broiler wattage
1050Welectrical requirements
120VAC;15Atop burner btu rating - nat. gas (000's btu's)
(1) 21.0; (3) 15.0multi ring burner caps (brass)
Includedlp conversion kit
Includedfactory-installed island backguard
yesmulti ringe burner caps (black)
Includedheight to cooking surface (in.)
35 1/4 to 36 3/4height w/legs extended - maximum height
36.75height with legs retracted
35.25cabinet width
30oven cleaning type
Steam Cleancooktop burner type
1 Sealed, Dual Ring Brass Accents (Removable)3 Sealed, Dual Flame Stackedcooktop burner grate features
Continuous GratesPorcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Gratescooking system
Reverse Air Convectionoven rack features
2 Full Extension Racks3 Self-Clean Oven Racks5 Rack Positionscleaning time
Variablewifi connect
Built-Incooking technology
Convectioncooktop surface
Porcelain-Enamelindicator lights
Burner "On"connected capabilities
Amazon AlexaBluetoothDropIFTTTInnitSonosThe Google Assistantconfiguration
4 Burnerslighting
Customizable LED Bullnose and Knob Accent Lightingself-clean oven door lock
Automaticoven cooking modes
Convection Bake Multi-RackConvection RoastPrecision Cooking ModesProofScan-to-CookWarmingconvection roasting rack
Yesoven control features
12-Hour Shut-Off CapabilityAudible Preheat SignalAuto Recipe ConversionAutomatic Oven Meat ProbeCertified Sabbath ModeChef ConnectC(degree) or F(degree) ProgrammableDelay Clean OptionProbe ModeProof ModeRemote EnabledSteam CleanTimerWiFi Connectinterior oven light
6 Halogen Lamps (Caterer Oven)cooktop type
Continuous Gratesbroiler pan and grid
Yesextra low simmer
All Burners - Adjustablebake/broiler btu rating - nat. gas (000's btu's)
23.0 Bake / 18.0 Broilbake/broiler btu rating - lp (000's btu's)
21.5 Bake / 18.0 Broiloptional grill accessory (cast iron)
UXPRRGGinterior dimensions - main oven (wxhxd) (in.)
28-1/4 x 16-3/8 x 19
