PORTOFINO STYLE

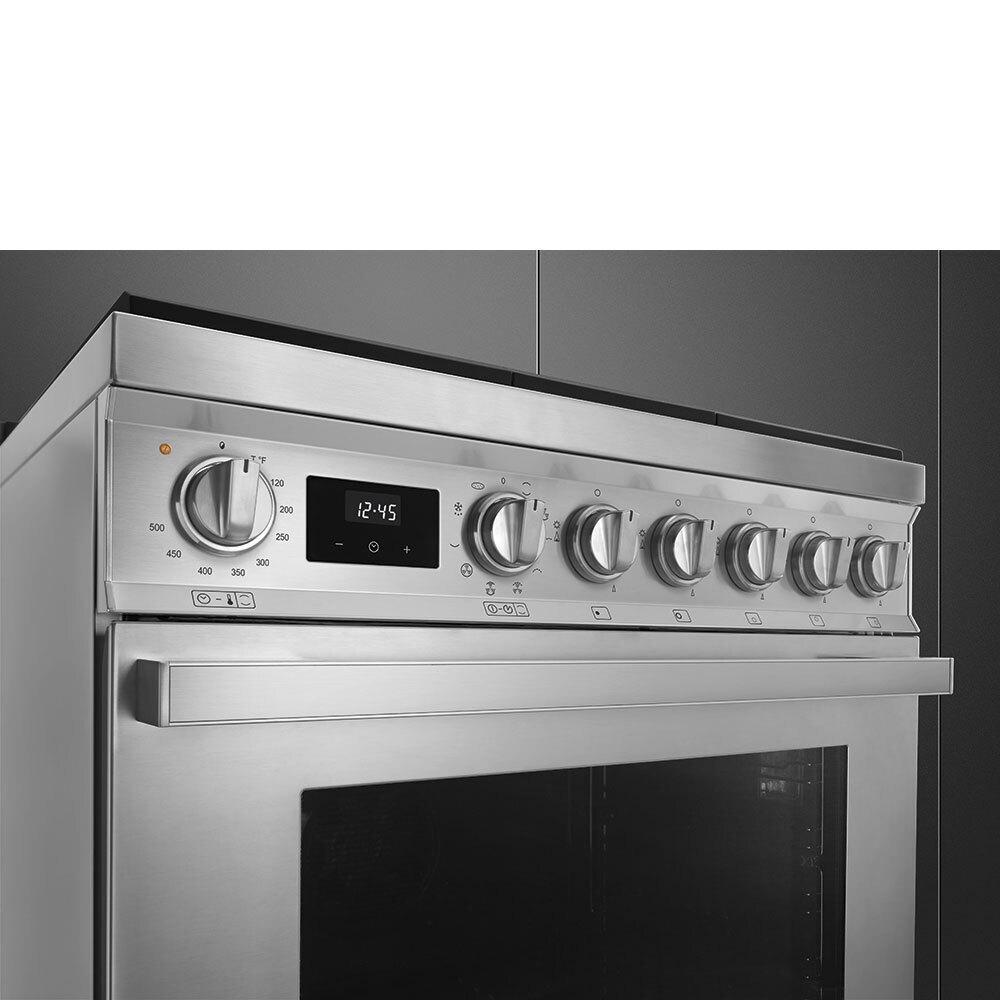

Stainless steel control knobs
Soft close oven door
Full-width continuous grates
Storage compartment
MULTIFUNCTION ELECTRIC OVEN:
10 cooking modes including Pizza Function
Programmable timer with touch display
Adjustable thermostat 120
Air-cooled triple-glazed removable door
True European convection
Oven capacity: 3.6 cu. ft.
Ever Clean enameled interior cavity
4 shelf positions
2 x halogen oven lights
Bake element 1.7kW
Broil element 2.9kW
Convection element 2.7Kw
GAS RANGETOP:
4 gas burners
Diamond con guration burner layout
Center-rear 4500 BTUs
Center-front 8000 BTUs
Right super burner 20000 BTUs
Left double-inset super burner 20000 BTUs
Heavy-duty cast iron grates
Automatic electric ignition
LP gas conversion kit included
SAFETY:
Gas safety valves
Air-cooled door to prevent overheating
Connected load nominal power: 240/120V - 17 Amps
Voltage rating: 240/120V 60Hz
ACCESSORIES INCLUDED:
1 wok ring
1 deep oven tray
1 partial-extraction telescopic guide
2 chrome shelves
1 black toe kick
Specifications
>td >EAN code
| Type | |
| Product family | Range |
| Range size | 30" |
| Range fuel | Dual-fuel |
| N. of ovens | 1 |
| Main oven | |
| 8017709256449 | |
| Aesthetic | |
| Color | Stainless steel |
| Finishing | Satin |
| Aesthetics | Portofino |
| Design | Flush mounted |
| Material | Stainless steel |
| Door | With frame |
| Control panel finish | Fingerprint-proof stainless steel |
| Cooktop color | Stainless steel |
| Handle | Portofino |
| Controls color | Stainless steel |
| Upstand | Yes |
| Display | Touch |
| Grates | Cast Iron |
| Door glass type | Gray |
| Handle color | Brushed stainless steel |
| Control knobs | Portofino |
| No. of controls | 7 |
| Feet | Stainless steel |
| Plinth | Black |
| Storage compartment | Storage drawer |
| Main oven options | |
| Timer | Yes |
| End-of-cooking alarm | Yes |
| Minimum Temperature | 120 °F |
| Maximum temperature | 500 °F |
| Cooktop technical features | |
| Cooking zones | 4 |
| Zone 1 - Position | Left |
| Zone 2 - Position | Rear-center |
| Zone 3 - Position | Front-center |
| Zone 4 - Position | Right |
| Zone 1 - Type | Gas - Dual ultra-rapid |
| Zone 2 - Type | Gas - Semi-rapid |
| Zone 3 - Type | AUX |
| Zone 4 - Type | Gas - Ultra-rapid |
| Burners type | Standard |
| Burner caps | Enameled matte black |
| Automatic gas ignition | Yes |
| Gas safety valves | Yes |
| Main Oven Technical Features | |
| Volume | 0.13 cu. ft. |
| Cavity material | EverClean enamel |
| No. of shelves | 4 |
| Shelves type | Metal racks |
| No. of lights | 2 |
| Light type | Halogen |
| Light Power | 40 W |
| Fan number | 1 |
| Time setting | Start and end |
| Door opening | Drop-down |
| Light on when door is open | Yes |
| Removable door | Yes |
| Full-glass inner door | Yes |
| Removable inner door | Yes |
| Total no. of door glasses | 3 |
| No.of thermo-reflective door glasses | 2 |
| Safety thermostat | Yes |
| Cooling system | Tangential |
| Grill type | Electric |
| Grill power | 1700 W |
| Large grill - Power | 2900 W |
| Bottom heating element - Power | 1700 W |
| Upper heating element - Power | 1200 W |
| Circular heating element - Power | 2700 W |
| Soft Close system | Yes |
| Temperature control | Electro-mechanical |
| Electrical Connection | |
| Electrical connection rating | 3700 W |
| Circuit breaker | 20 A |
| Voltage | 240/208 V |
| Frequency | 60 Hz |
| Power cord length | 47 1/4 " |
| Gas Connection | |
| Gas Type | G20/G25 - 20/25 mbar |
| Logistic Information | |
| Width | 30 1/16 " |
| Height | 36 1/16 " |
| Depth | 25 1/16 " |
| Gross weight | 258 lbs |
| Net weight | 230 lbs |
| Accessories Included | |
| Other gas nozzles included | G30 LPG liquid gas |
| Accessories included for main oven and cooktop | |
| Cast iron wok support | 1 |
| Wide baking tray | 1 |
| Oven grid with back-stop, tray support | 1 |
| TOP Oven grid with back stop | 1 |
| Grill mesh | 1 |
| 0.8"-deep tray | 1 |
| Telescopic Guide rails, partial Extraction | 1 |
