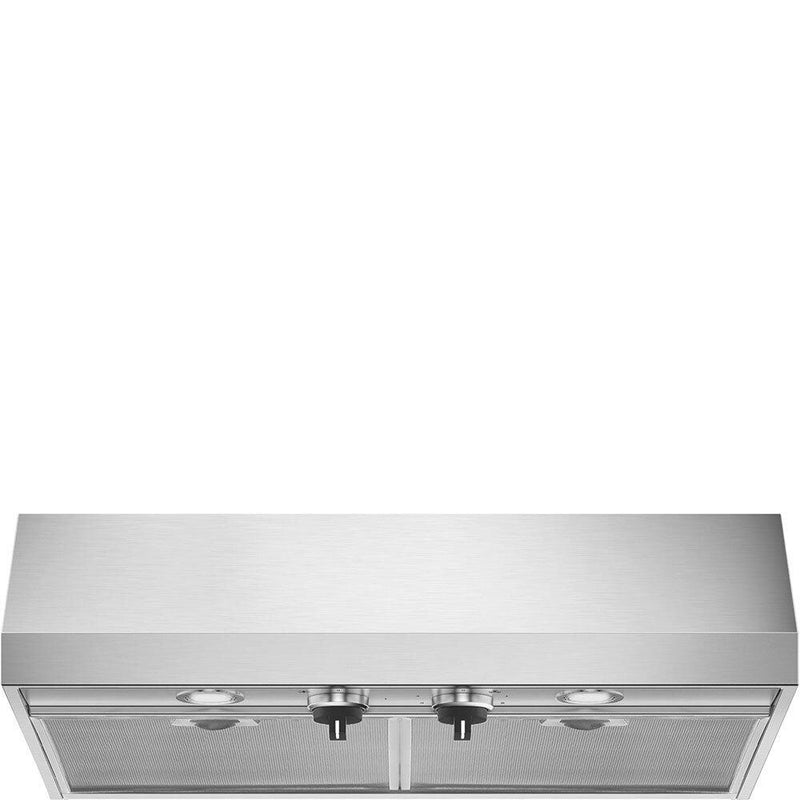

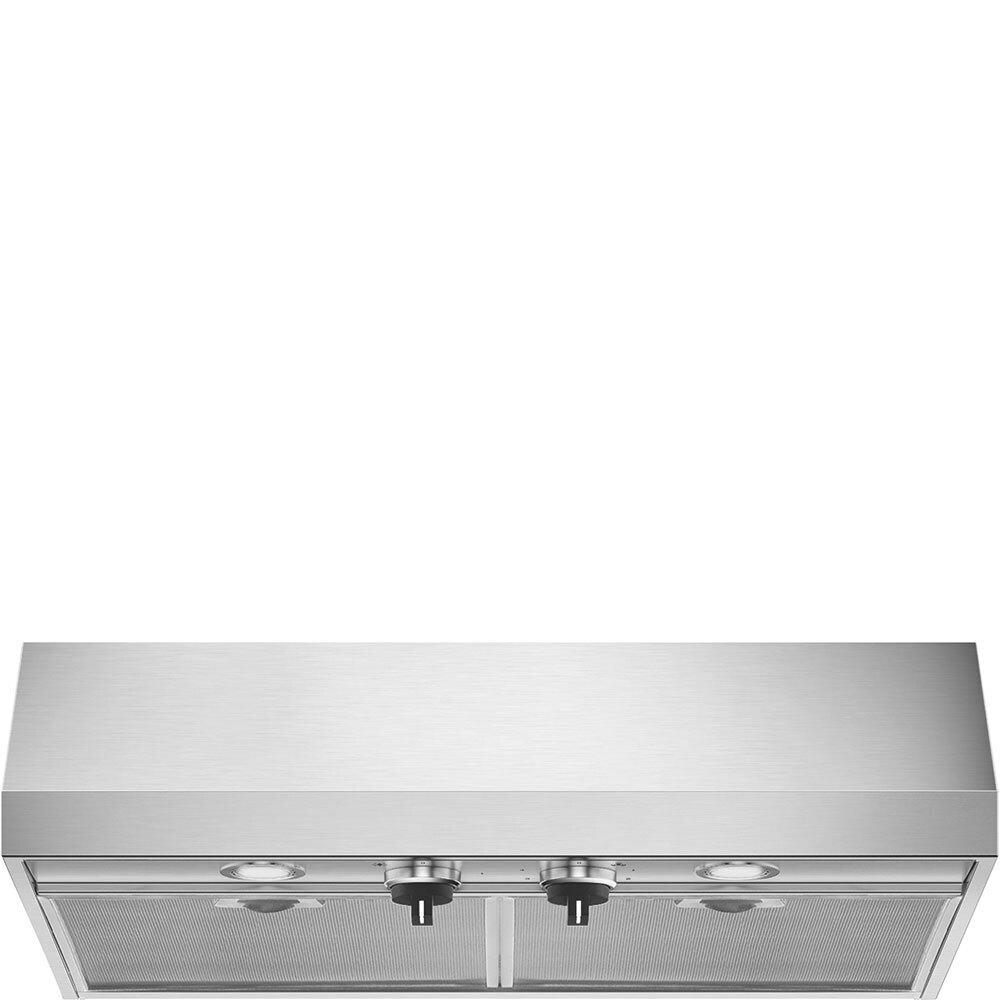

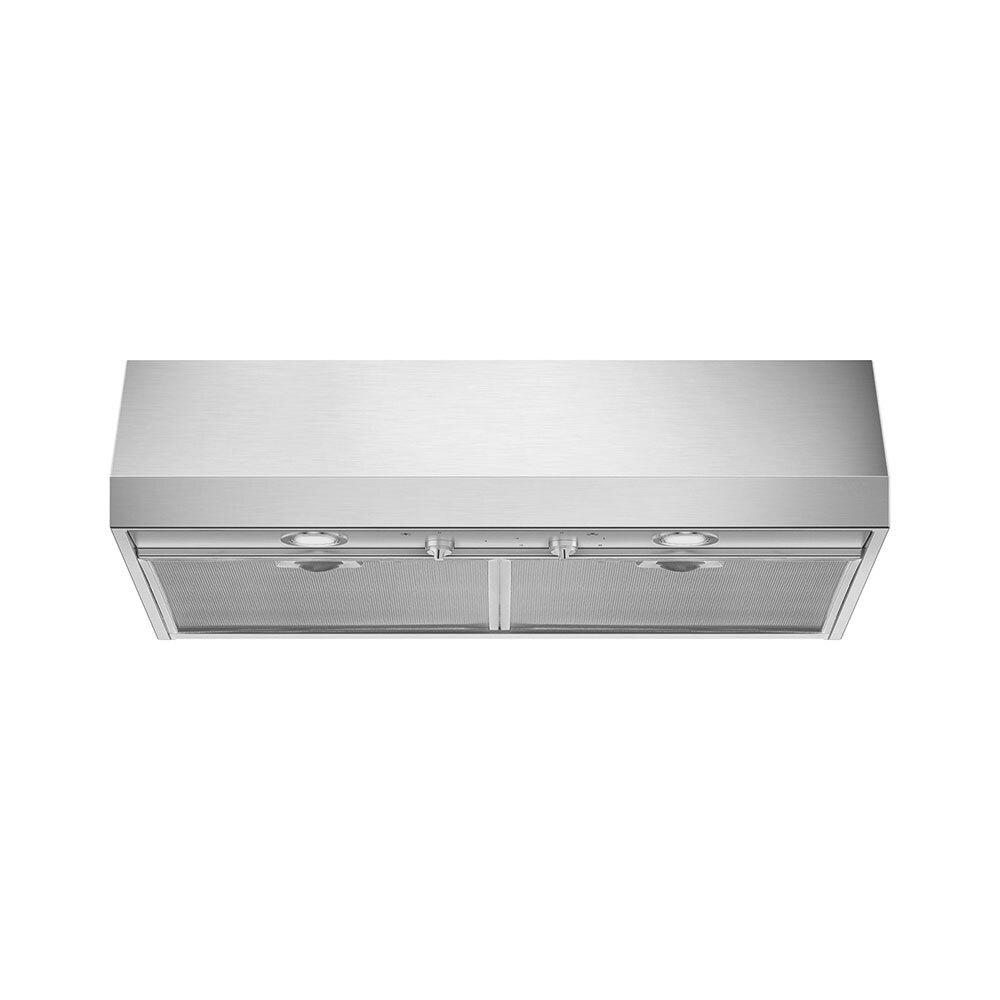

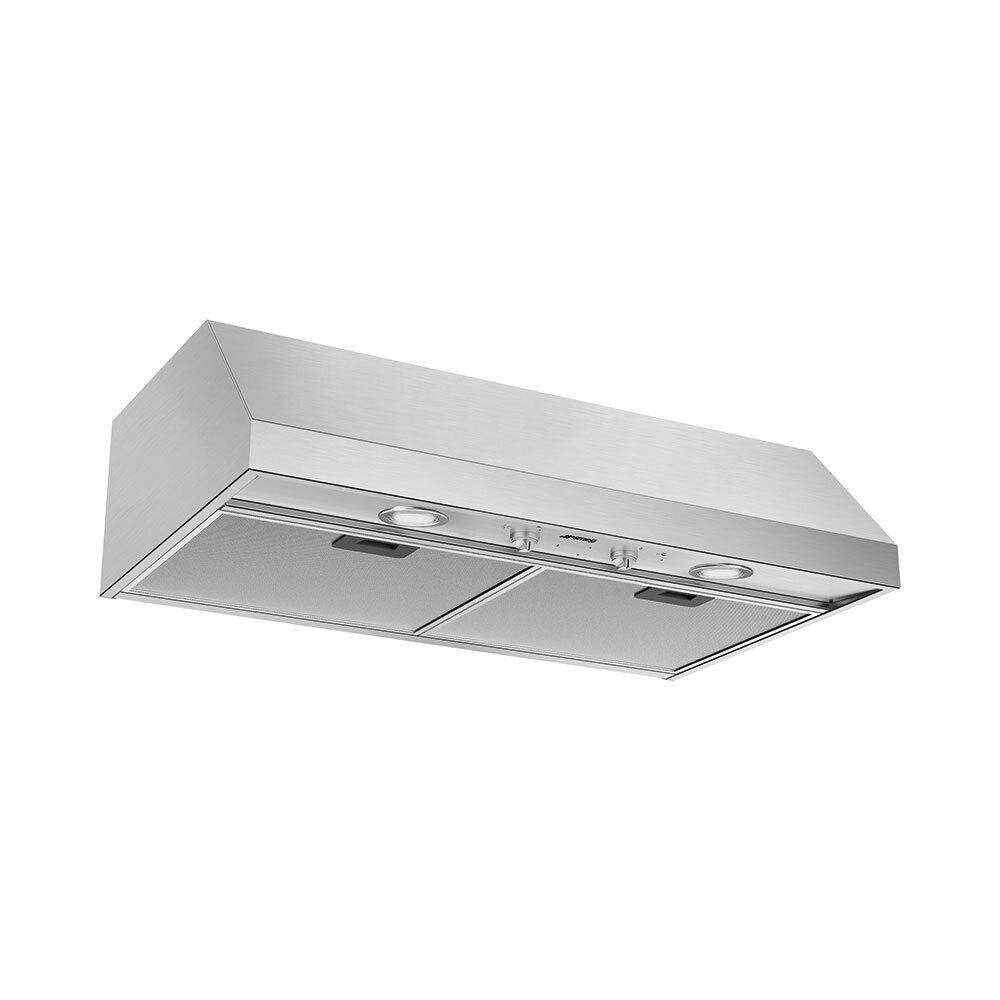

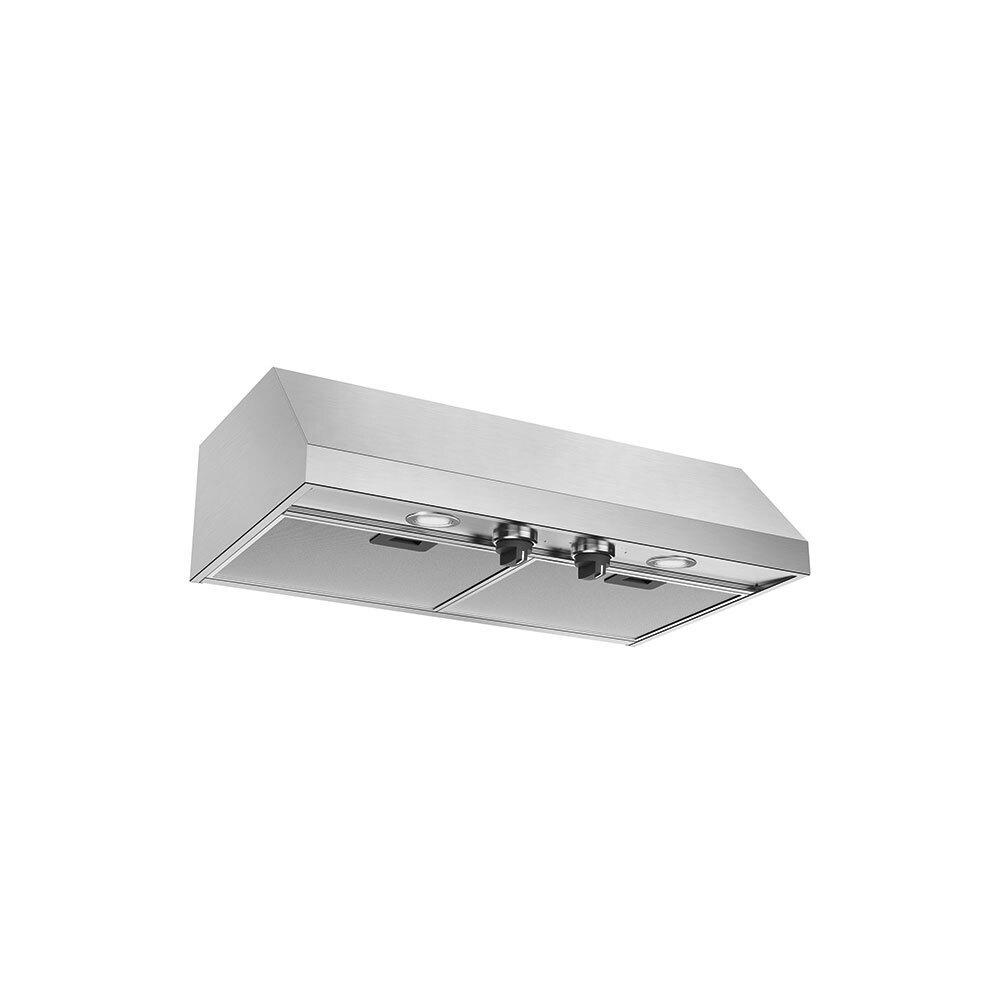

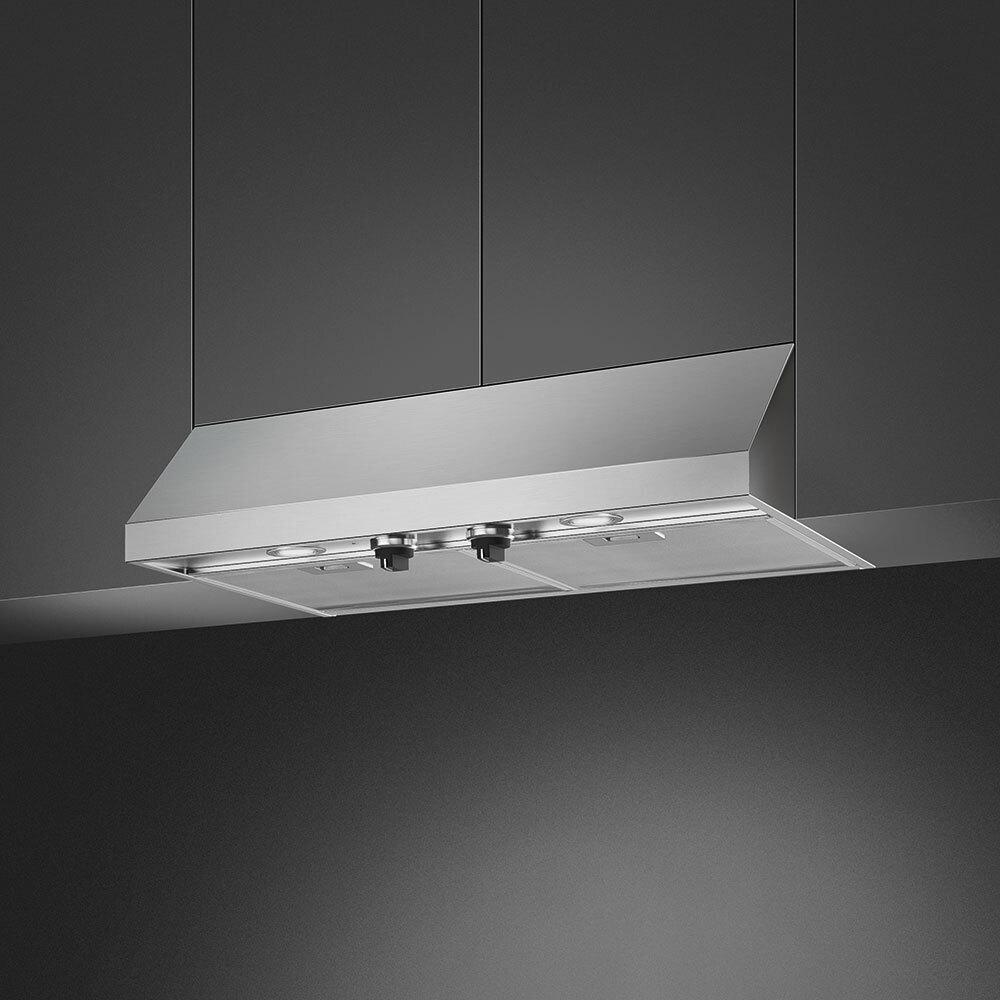

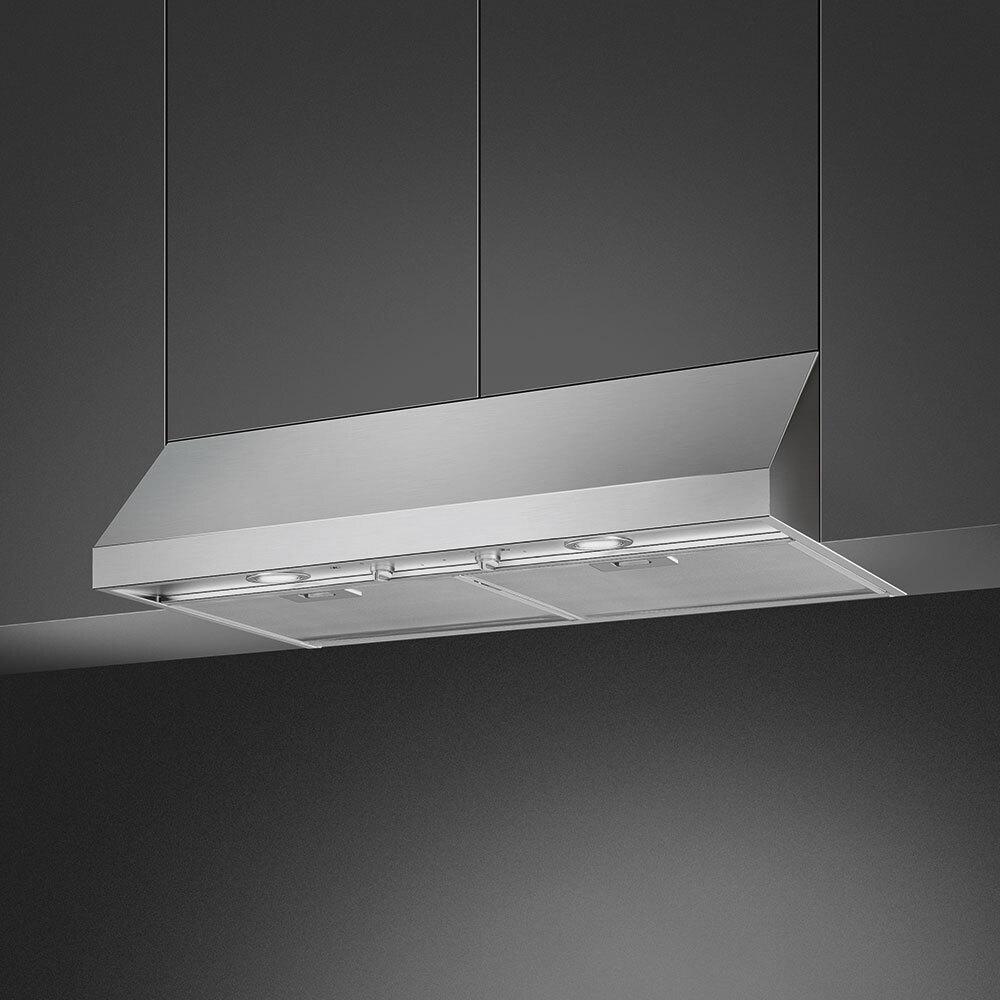

Pro-Style
Under-cabinet hood
High-quality stainless steel
Pro-Style and Portofino knobs
1 motor
Vented or recirculating
4 speeds
2 halogen lights <2x20W>
2 dishwasher-safe grease filters
600 CFM max. setting
Vent duct size: 6"
Voltage rating: 120V/60Hz/4.5 Amps
Nominal power: 455 W
Specifications
Dimensions
Width30.0"Height8.281"Depth17.5"
Product Details:
| Type | |
| Product family | Hood |
| Hood Type | Under cabinet |
| Hood width | 30 " |
| Extraction | Vented |
| EAN code | 8017709248024 |
| Aesthetic | |
| Color | Stainless steel |
| Finishing | Satin |
| Aesthetics | Classic |
| Design | Canopy pro-style |
| Material | Stainless steel |
| Stainless steel type | Brushed |
| Programs / Functions | |
| Speed levels | 4 |
| Controls | |
| Control setting | Control knobs |
| Control knobs | Pro-style |
| No. of controls | 2 |
| Controls color | Black |
| Technical Features | |
| No. of lights | 2 |
| Lighting | Halogen |
| Light power | 20 W |
| Light color temperature scale (°K) | 3000 °K |
| Maximum extraction capacity at free mode | 599 CFM |
| Motor power | 455 W |
| No. of filters | 2 |
| Anti-grease filters | Aluminum |
| Minimum distance from gas cooktop | 26 " |
| Minimum distance from electric cooktop | 26 " |
| Vent outlet | 150 " |
| Non-return valve | Yes |
| Electrical Connection | |
| Electrical connection rating | 485 W |
| Voltage | 120 V |
| Frequency (Hz) | 60 Hz |
| Power supply cable length | 39 3/8 " |
| Speed level 1 | |
| Extraction rate | 213 CFM |
| Noise level | 54 dB(A) |
| Power | 214 W |
| Speed 2 | |
| Extraction rate | 325.5 CFM |
| Noise level | 63 dB(A) |
| Power | 279 W |
| Speed 3 | |
| Extraction rate | 454 CFM |
| Noise level | 70 dB(A) |
| Power | 359 W |
| Speed level 4 | |
| Extraction rate | 590.5 CFM |
| Noise level | 76 dB(A) |
| Power | 484 W |
| Logistic Information | |
| Dimensions | 210x759x445 |
| Width | 29 7/8 " |
| Depth | 17 1/2 " |
| Height | 8 1/4 " |
| Net weight | 25 lbs |
| Gross weight | 35 lbs |
