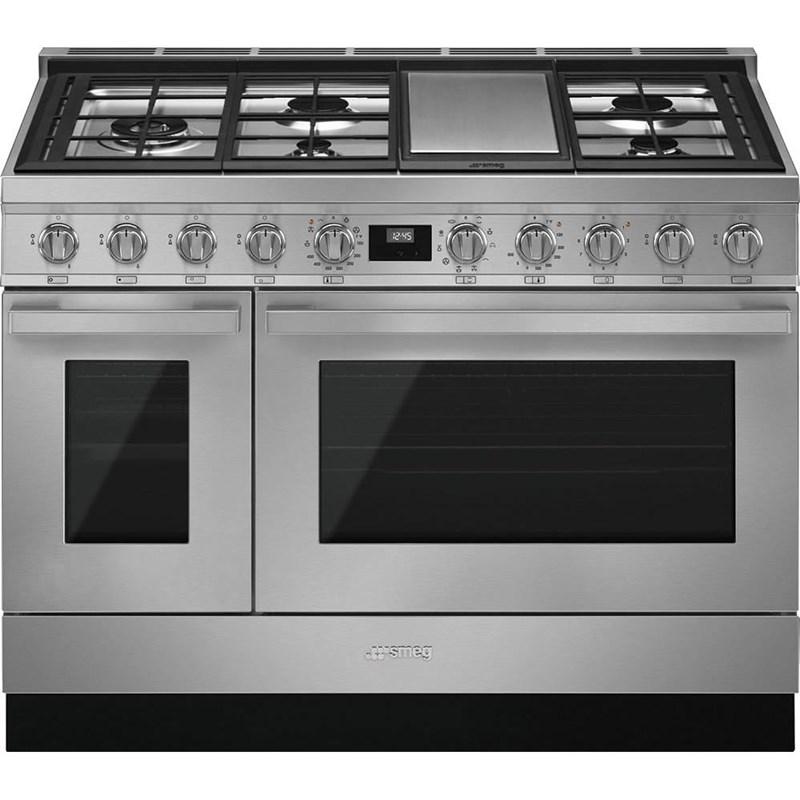

PORTOFINO STYLE
Stainless steel control knobs
Thermoseal cavity, energy efficiency best-in-class
Soft close oven door
Full-width continuous grates
Storage compartment with inner drawer
MULTIFUNCTION ELECTRIC OVEN:
10 cooking modes including Pizza Function
Vapor-clean function
Programmable timer with touch display
Adjustable thermostat 120
Air-cooled triple-glazed removable door
True European triple convection
Oven capacity: 4.5 cu. ft.
Ever Clean enameled interior cavity
5 shelf positions
2 x halogen oven lights
Bake element 1.7kW
Broil element 2.9kW
Convection element 1.5kW
MULTIFUNCTION ELECTRIC OVEN - SECONDARY OVEN
4 cooking modes
True European convection
Adjustable thermostat 120
"Ever-Clean" enamelled oven interior
Air-cooled triple-glazed removable door
Removable inner glass for easy cleaning
Oven capacity: 1.45 Cu.Ft
5 shelf positions
2 x halogen oven lights
Bake element 750W
Broil element 2,05kW
Convection element 1.5kW
GAS RANGETOP:
5 gas burners with Electric Griddle
Center-rear 1200 BTUs
Center-front 4500 BTUs
Right-rear 12000 BTUs
Right-front 8000 BTUs
Left double-inset super burner 20000 BTUs
Heavy-duty cast iron grates
Automatic electric ignition
LP gas conversion kit included
SAFETY:
Gas safety valves
Air-cooled door to prevent overheating
Connected load nominal power: 240/120V - 17 Amps
Voltage rating: 240/120V 60Hz
ACCESSORIES INCLUDED:
1 wok ring
1 rotisserie kit
1 deep oven tray
1 total-extraction telescopic guide
2 chrome shelves
1 black toe kick
Specifications
| Type | |
| Product family | Range |
| Range size | 48" |
| Range fuel | Dual-fuel |
| N. of ovens | 2 |
| Main oven | Thermo-ventilated |
| Secondary oven | Static |
| EAN code | 8017709259082 |
| Aesthetic | |
| Color | Stainless steel |
| Finishing | Satin |
| Aesthetics | Portofino |
| Design | Flush mounted |
| Material | Stainless steel |
| Cooktop color | Stainless steel |
| Handle | Portofino |
| Display | Touch |
| Grates | Cast Iron |
| No. of controls | 10 |
| Plinth | Black |
| Storage compartment | Storage drawer |
| Main oven options | |
| Timer | Yes |
| End-of-cooking alarm | Yes |
| Minimum Temperature | 120 °F |
| Maximum temperature | 500 °F |
| Secondary oven functions | |
| Minimum Temperature | 120 °F |
| Maximum temperature | 450 °F |
| Cooktop technical features | |
| Cooking zones | 6 |
| Zone 1 - Position | Left |
| Zone 2 - Position | Rear-center |
| Zone 3 - Position | Front-center |
| Zone 4 - Position | Rear-right |
| Zone 5 - Position | Front-right |
| Zone 6 - Position | Center |
| Burner caps | Enameled matte black |
| Gas safety valves | Yes |
| Main Oven Technical Features | |
| Volume | 0.16 cu. ft. |
| Cavity material | EverClean enamel |
| No. of shelves | 5 |
| Shelves type | Metal racks |
| No. of lights | 2 |
| Light type | Halogen |
| Light Power | 40 W |
| Fan number | 3 |
| Time setting | Start and end |
| Light on when door is open | Yes |
| Removable door | Yes |
| Total no. of door glasses | 3 |
| Safety thermostat | Yes |
| Cooling system | Tangential |
| Grill type | Electric |
| Grill power | 1700 W |
| Large grill - Power | 2900 W |
| Bottom heating element - Power | 1700 W |
| Upper heating element - Power | 1200 W |
| Circular heating element - Power | 1500 W |
| Soft Close system | Yes |
| Secondary oven - Technical specifications | |
| Cavity material | EverClean enamel |
| No. of shelves | 5 |
| Shelves type | Metal racks |
| No. of lights | 2 |
| Lighting | Halogen |
| Light Power | 40 W |
| Fan number | 1 |
| Light on when oven door is open | Yes |
| Removable door | Yes |
| No. total door glasses | 3 |
| Security Thermostat | Yes |
| Cooling system | Tangential |
| Large grill - Power | 2050 W |
| Lower heating element - power | 750 W |
| Electrical Connection | |
| Electrical connection rating | 8000 W |
| Circuit breaker | 50 A |
| Voltage | 240/208 V |
| Frequency | 60 Hz |
| Power cord length | 47 1/4 " |
| Gas Connection | |
| Gas Type | G20 Natural gas |
| Logistic Information | |
| Width | 47 1/4 " |
| Height | 35 7/16 " |
| Depth | 23 5/8 " |
| Gross weight | 412 lbs |
| Net weight | 338 lbs |
| Accessories Included | |
| Other gas nozzles included | G30 LPG liquid gas |
| Accessories included for main oven and cooktop | |
| Cast iron wok support | 1 |
| TOP Oven grid with back stop | 2 |
| 1.6"-deep tray | 1 |
| Telescopic Guide rails, total Extraction | 1 |
| Accessories included - Secondary oven | |
| Wide baking tray | 1 |
| Rack with back and side stop | 1 |
| Grill mesh | 1 |
| Telescopic Guide rails, total Extraction | 1 |
