About this Product

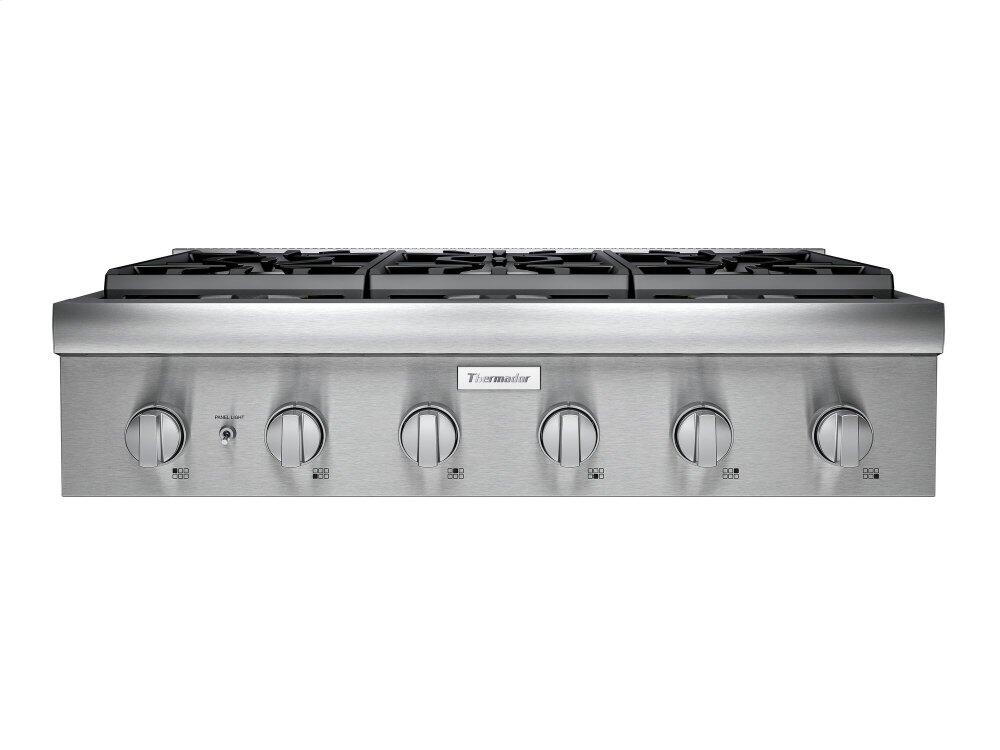

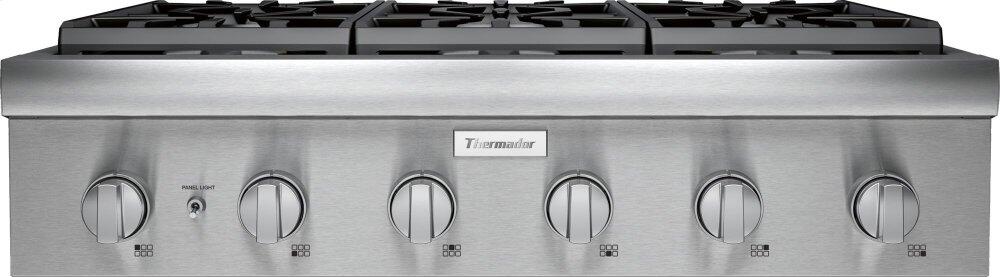

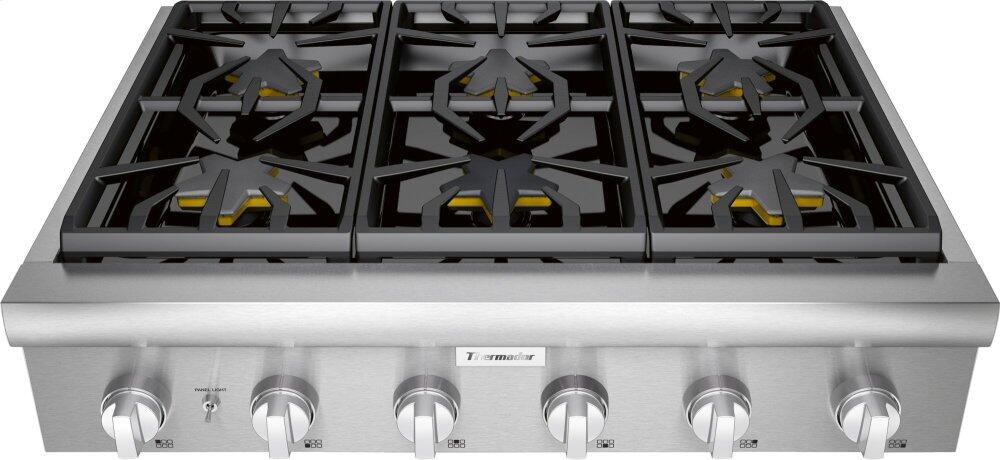

This Thermador 36-inch gas rangetop features 6 burners, metal knobs and LED downlighting. It also offers precision simmering capabilities as low as 100°F (375 BTU) with 2 ExtraLow® simmer burners.
Features
- EXTRALOW® — The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE
- PATENTED STAR BURNER — Exclusive, sealed 3-in-1 Star® Burner’s unique five-point design offers a reduced cold spot, faster time to boil and the ExtraLow feature. The coverage area allows for more ports and more flame distribution than a round burner. THERMADOR EXCLUSIVE
- QUICKCLEAN BASE — The raised pedestal burner and porcelain maintop have been crafted for perfect integration and easy cleanup. A hand and sponge fit easily under each burner to wipe the surface clean and a teardrop emboss reduces food buildup near the base. THERMADOR EXCLUSIVE
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan | Precision simmering capabilities as low as 100°F (375 BTU) with 2 ExtraLow® Simmer burners | LED Downlighting—hidden discreetly above the control panel provides functional and stylish illumination
Specifications
| Burners/Elements | 6 | Burners | Sealed | Other | Grill |
| Height | 18.4 cm | Width | 91.28 cm | Depth | 66.0 cm |
| Weight | 64.41 kg | Additional Dimensions | Required Cutout Size (HxWxD): 7 11/16" x 35 1/8" x 22 13/16" | Class Width | 36" |
| Fuel Type | Natural Gas | Type | Rangetop | Series Name | Professional |
| Manufacturer Color | Stainless Steel | Color | Stainless Steel | UPC# | 825225926535 |
| Warranty | Limited 2 Years Parts and Labor | ||||
|
Power Output Power of Front Left Burner: 18,000 and XLO BTU | Power of Back Left Burner: 15,000 and XLO BTU | Power of Back Center Burner: 15,000 BTU | Power of Front Center Burner: 18,000 BTU | Power of Back Right Burner: 15,000 BTU | Power of Front Right Burner: 18,000 BTU
| |||||
|
Information 120 V | 60 Hz | 15 A
| |||||
|
Technologies Patented Pedestal Star® Burner | QuickClean Base® | ExtraLow® Simmer Burners
| |||||
|
Optional Griddle Sits on Top of Grates Over 2 Star Burners: PAGRIDDLE | 12" Cutting Board: PA12CHPBLK | Metallic Blue Knob Kit: PAKNOBLUWR | Wok Ring: PWOKRINGHC | LP Conversion Kit: PALPKITHW | 10" Low Backguard: PA36WLBC
| |||||
Accessories
• 12" Cutting Board: PA12CHPBLK
• Metallic Blue Knob Kit: PAKNOBLUWR
• Wok Ring: PWOKRINGHC
• LP Conversion Kit: PALPKITHW
• 10" Low Backguard: PA36WLBC
Specifications
Burners/Elements
6
Burners
Sealed
Other
Grill
Height
18.4 cm
Width
91.28 cm
Depth
66.0 cm
Weight
64.41 kg
Class Width
36"
Fuel Type
Natural Gas
Type
Rangetop
Series Name
Professional
Manufacturer Color
Stainless Steel
Color
Stainless Steel
Warranty
Limited 2 Years Parts and Labor
Power Output
Power of Front Left Burner: 18,000 and XLO BTU | Power of Back Left Burner: 15,000 and XLO BTU | Power of Back Center Burner: 15,000 BTU | Power of Front Center Burner: 18,000 BTU | Power of Back Right Burner: 15,000 BTU | Power of Front Right Burner: 18,000 BTU
Information
120 V | 60 Hz | 15 A

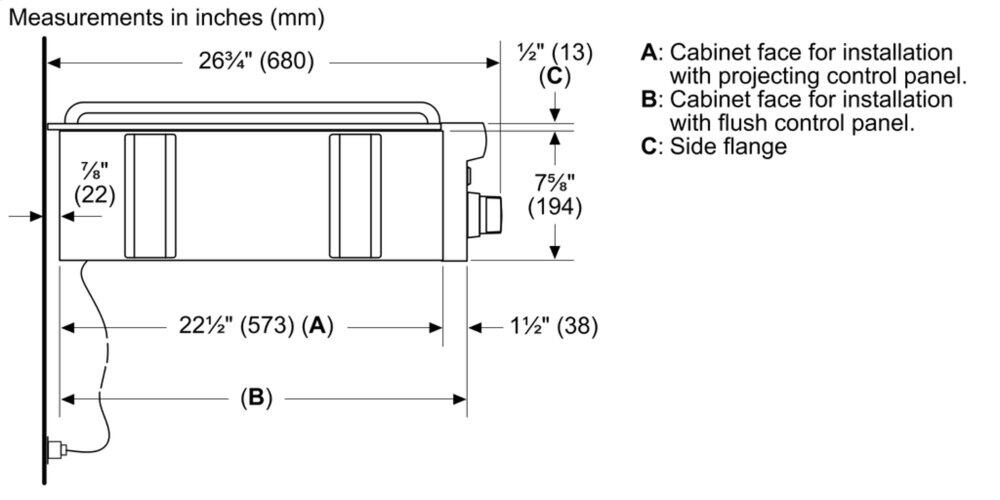

Additional Dimensions

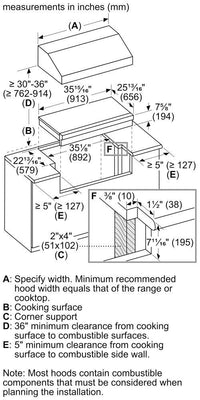

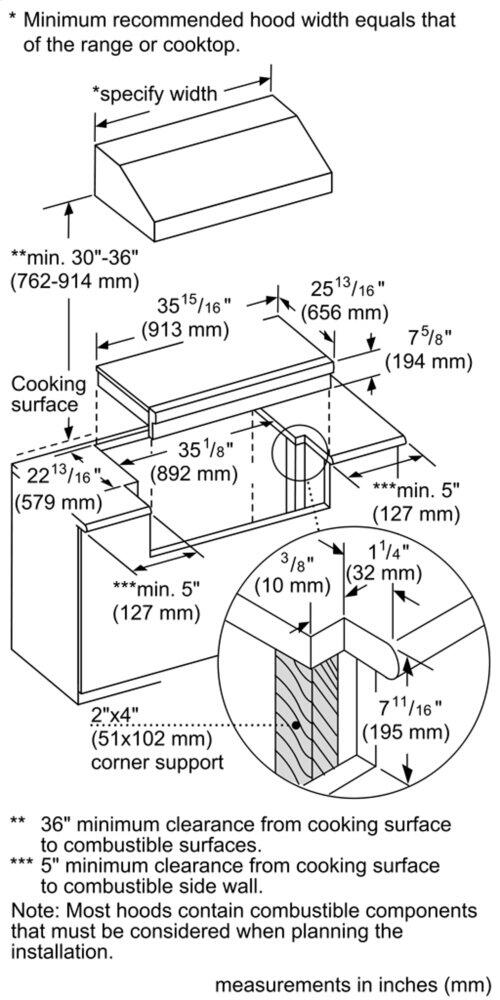

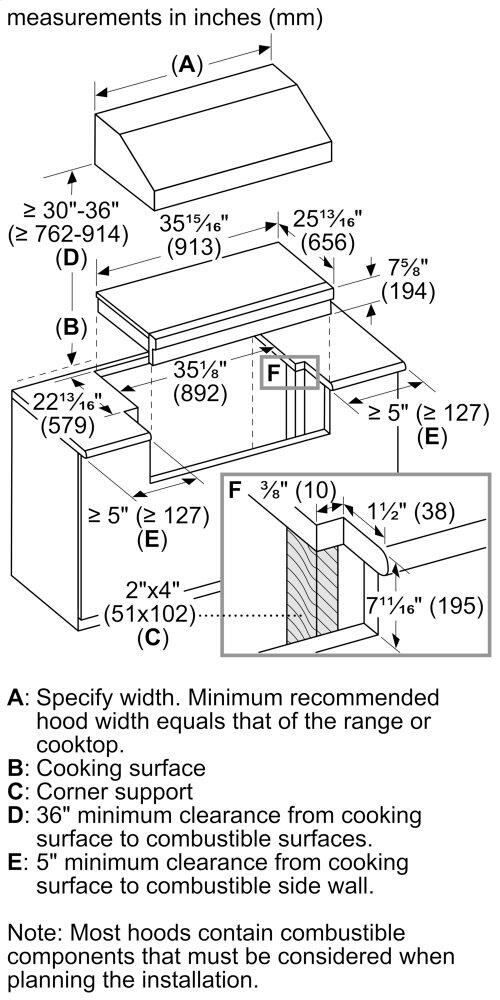

Required Cutout Size (HxWxD): 7 11/16" x 35 1/8" x 22 13/16"
Additional Information
Patented Pedestal Star® Burner with QuickClean Base® designed for easy surface cleaning and superior heat spread for any size pan | Precision simmering capabilities as low as 100°F (375 BTU) with 2 ExtraLow® Simmer burners | LED Downlighting—hidden discreetly above the control panel provides functional and stylish illumination
Technologies
Patented Pedestal Star® Burner | QuickClean Base® | ExtraLow® Simmer Burners
Optional
Griddle Sits on Top of Grates Over 2 Star Burners: PAGRIDDLE | 12" Cutting Board: PA12CHPBLK | Metallic Blue Knob Kit: PAKNOBLUWR | Wok Ring: PWOKRINGHC | LP Conversion Kit: PALPKITHW | 10" Low Backguard: PA36WLBC
