This Thermador 30-inch chimney wall hood features delay shut-off, multi-level LED, Noise Control Technology™ and Home Connect™.
Features
- Ducting Information:
Diameter of Air Duct Top: 8" - Additional Information:
• Sones: 1.9 (Measured at Speed 1 in Ducted Installation)
• Hybrid Mesh Filters
• Cooktop Hood-Sync Enabled
• Multi-Level LED Lights with Fading Transitions
• Automatic Mode
• Check Filter Reminder Light
• Delay Shut-Off
• Washable Stainless Steel Filters - Speeds:
4-Speeds - Technologies:
• Noise Control Technology™
• Home Connect™ (Wi-Fi Enabled) - Wi-Fi:
Y
Accessories
- Optional:
• Stainless Steel Chimney Hood Extension
• CHXTHMCB- For up to 12-foot ceiling applications. Extension replaces upper section of standard chimney extension
• Recirculation Kit
• RECHMCB- For HMCBxxWS Masterpiece® Chimney Wall Hoods only
• Replacement Charcoal Filter
• CHFHMCD - For use with recirculation kit RECHMCB
• Remote Control Panel
• REMCPW - Ability to vertically install on cabinetry or wall to control hood in a convenient location
• 8" Wall Cap WC8 - Included:
Damper
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
- Energy Guide (en)
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications

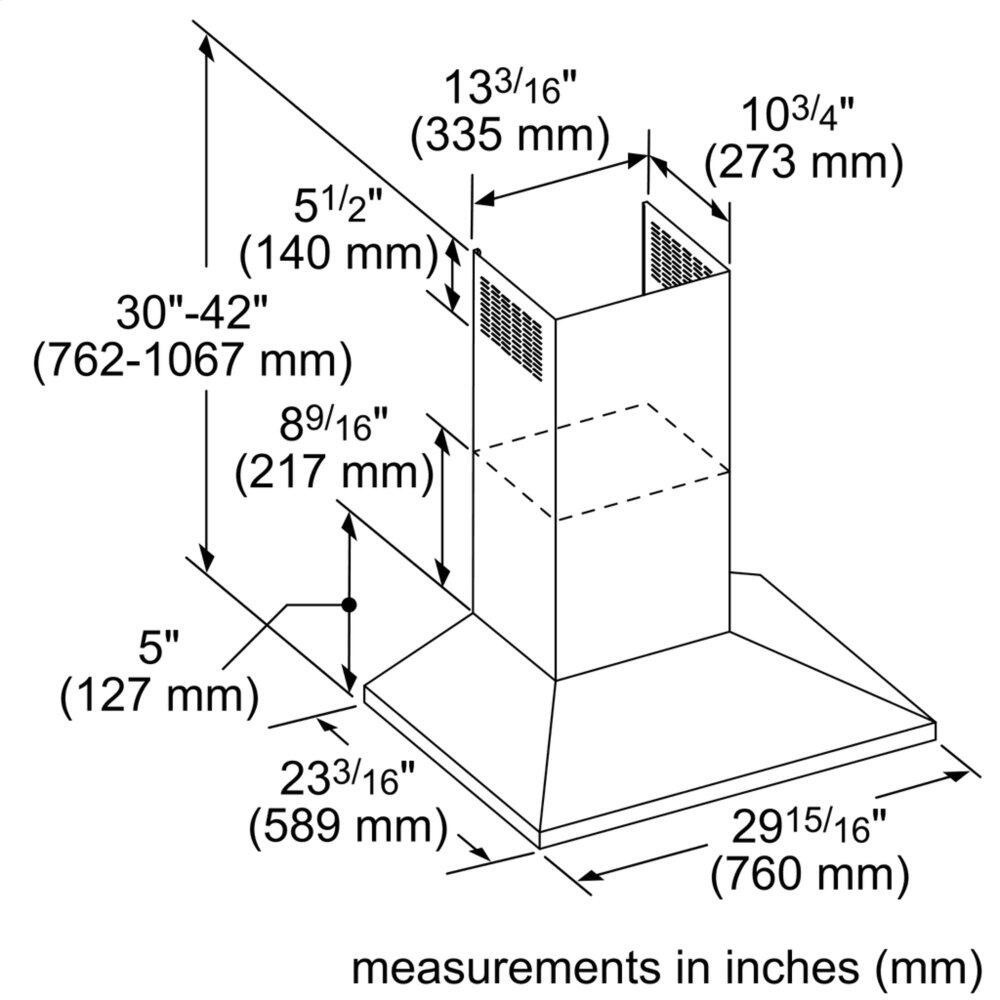

Dimensions
Width29"Height30"Depth23"
Finish: Stainless Steel
MPN: HMCB30WS
Product Details:
UPC#
825225935704Weight
28.58 kgDepth
58.9 cmHeight
76.2 cmWidth
76.0 cmClass Width
30"Additional Dimensions
• Height of the Chimney: 25" – 27"
• Accommodates Ceiling Heights Up to 9' Ceiling Heights
• Required Distance Above Cooktop / Range Cooking Surface: 30" / 30"Warranty
Limited 2 Years and LaborOptional
• Stainless Steel Chimney Hood Extension
• CHXTHMCB- For up to 12-foot ceiling applications. Extension replaces upper section of standard chimney extension
• Recirculation Kit
• RECHMCB- For HMCBxxWS Masterpiece® Chimney Wall Hoods only
• Replacement Charcoal Filter
• CHFHMCD - For use with recirculation kit RECHMCB
• Remote Control Panel
• REMCPW - Ability to vertically install on cabinetry or wall to control hood in a convenient location
• 8" Wall Cap WC8Included
DamperSeries Name
Masterpiece®Style
ChimneyManufacturer Color
Stainless SteelColor
Stainless SteelInstallation
Wall MountBlower Included
YAirflow
600 CFMDucting Information
Diameter of Air Duct Top: 8"Additional Information
• Sones: 1.9 (Measured at Speed 1 in Ducted Installation)
• Hybrid Mesh Filters
• Cooktop Hood-Sync Enabled
• Multi-Level LED Lights with Fading Transitions
• Automatic Mode
• Check Filter Reminder Light
• Delay Shut-Off
• Washable Stainless Steel FiltersSpeeds
4-SpeedsTechnologies
• Noise Control Technology™
• Home Connect™ (Wi-Fi Enabled)Wi-Fi
YInformation
• 120 V
• 60 Hz
• 15 A
UPC: 825225935704
Weight: 28.58
