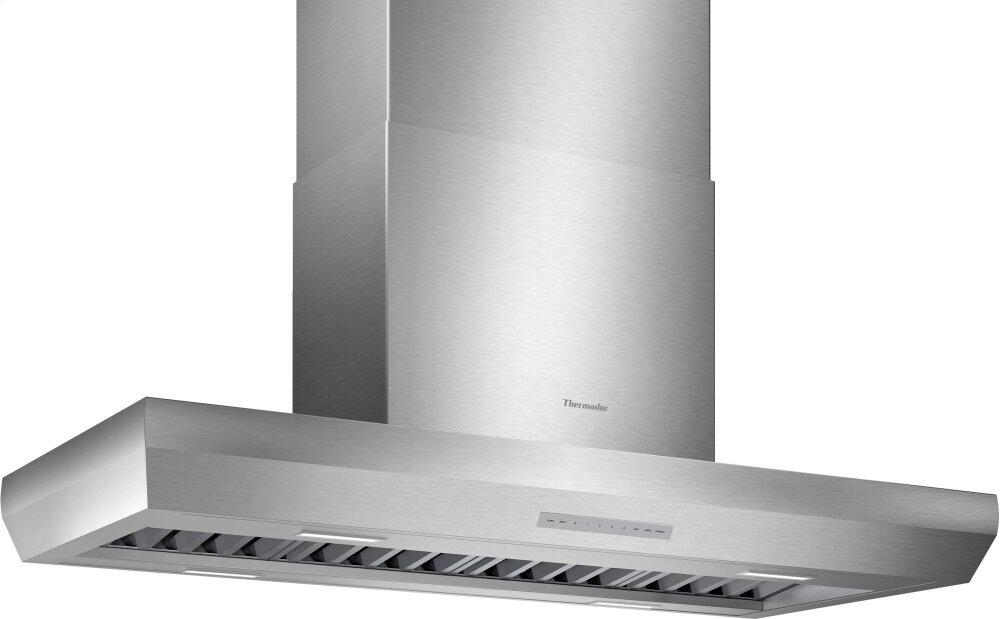

This Thermador Professional® Series 54-inch wide island hood makes a dramatic statement in your kitchen and is crafted to complete the ultimate Thermador cooking system. It features the Powerfully Quiet® system that accepts integral, inline, and remote blowers, dishwasher-safe stainless steel commercial-style baffle filters and beautiful illumination with multi-level, vivid LED lights. This model is equipped with the Thermador Connected Experience by Home Connect™.
POWERFULLY QUIET® OPERATIONSteam, smoke and odors are no problem for Thermador ducted ventilation systems.
DELAYED SHUT OFF
Delayed shut-off tackles lingering odors for up to 10 minutes
LED LIGHTING
Shed light on more of your exceptional moments. Thermador downdrafts feature multi-level, vivid LED lighting for everything, from setting the perfect dinner party mood to grabbing a quick midnight snack.

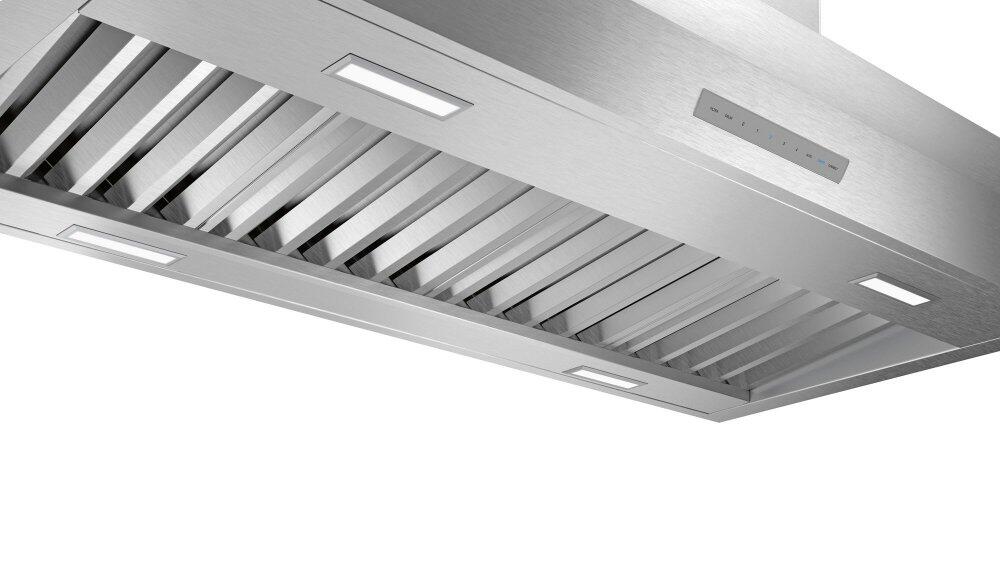

BAFFLE FILTERS
Stainless steel commercial-style baffle filters maximize grease capture and they're dishwasher safe for easy clean-up.(VCIN and VCIB Series)
Features
- Ducting Information:
Diameter of air duct: Top 10" - Additional Information:
• Multi-level LED lights with fading transitions
• Automatic mode
• Check filter reminder light
• Delay shut-off
• Number of lights: 4
• Stainless-steel commercial style baffle filter - Wi-Fi:
Y - Dishwasher-Proof Filters:
Y - Speeds:
4-Stage settings - Technologies:
• Thermador Connected Experience by Home Connect™
• Powerfully Quiet® system
Accessories
- Optional:
• Remote blowers: VTR630W (600 CFM), VTR1030W (1000 CFM), VTR1330W (1300 CFM)
• Inline blowers: VTI610W (600 CFM), VTI1010W (1000 CFM)
• Integrated blowers: VTN630W (600 CFM), VTN1090R (1000 CFM)
• 25 ft. Blower connector cable: EXTNCB25W
• Roofplates: RFPLT600P, RFPLT1000P
• Roof jack: RJ310
• 8" Wall cap: WC8
• 10" Wall cap: WC10 - Included:
Damper
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications
UPC#
825225933373Weight
64.86 kgDepth
67.79 cmHeight
13.34 cmWidth
152.24 cmClass Width

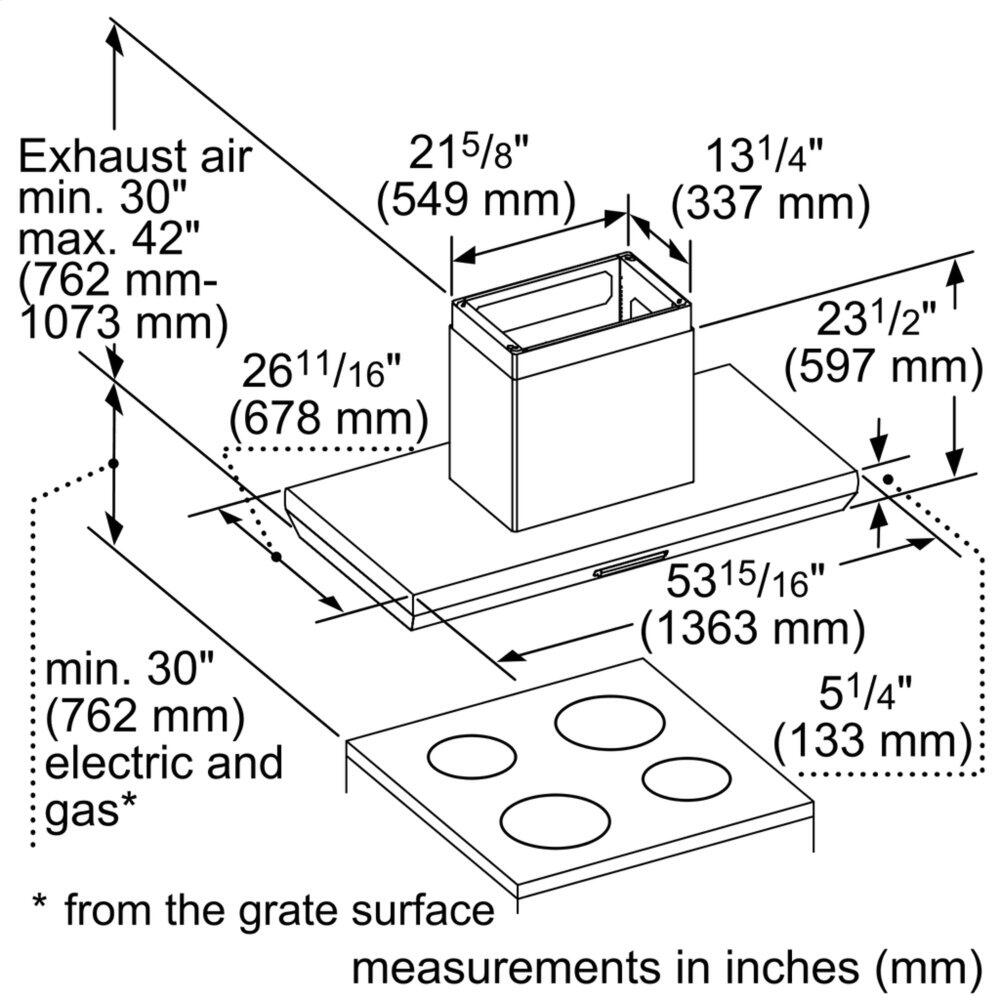

42"Additional Dimensions
• Height of the chimney: 24 3/4" – 36 3/4"
• Required distance above cooktop or range cooking surface: 30" min. / 40" max.
• Minimum ceiling height required: 8'Warranty
2-Year limited warranty on parts and laborOptional
• Remote blowers: VTR630W (600 CFM), VTR1030W (1000 CFM), VTR1330W (1300 CFM)
• Inline blowers: VTI610W (600 CFM), VTI1010W (1000 CFM)
• Integrated blowers: VTN630W (600 CFM), VTN1090R (1000 CFM)
• 25 ft. Blower connector cable: EXTNCB25W
• Roofplates: RFPLT600P, RFPLT1000P
• Roof jack: RJ310
• 8" Wall cap: WC8
• 10" Wall cap: WC10Included
DamperSeries Name
Professional®Style
IslandManufacturer Color
Stainless SteelColor
Stainless SteelInstallation
IslandBlower Included
NDucting Information
Diameter of air duct: Top 10"Additional Information
• Multi-level LED lights with fading transitions
• Automatic mode
• Check filter reminder light
• Delay shut-off
• Number of lights: 4
• Stainless-steel commercial style baffle filterWi-Fi
YDishwasher-Proof Filters
YSpeeds
4-Stage settingsTechnologies
• Thermador Connected Experience by Home Connect™
• Powerfully Quiet® systemInformation
• Volts: 120 V
• Frequency: 60 HZ
• Plug type: Fixed connection
• Power cord: Direct wire at junction box
