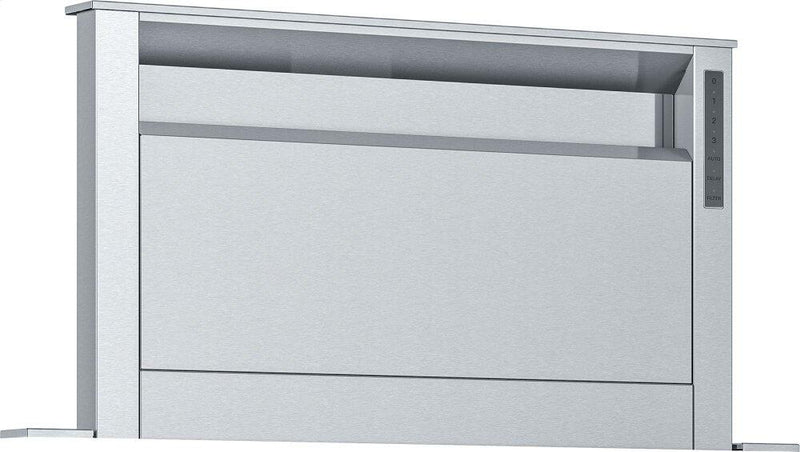

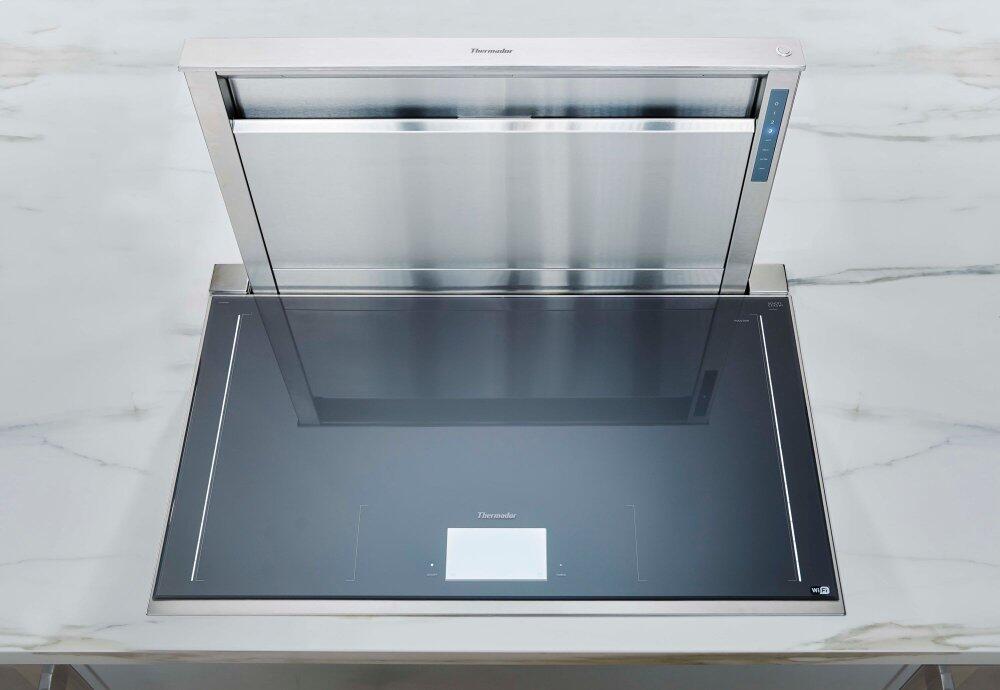

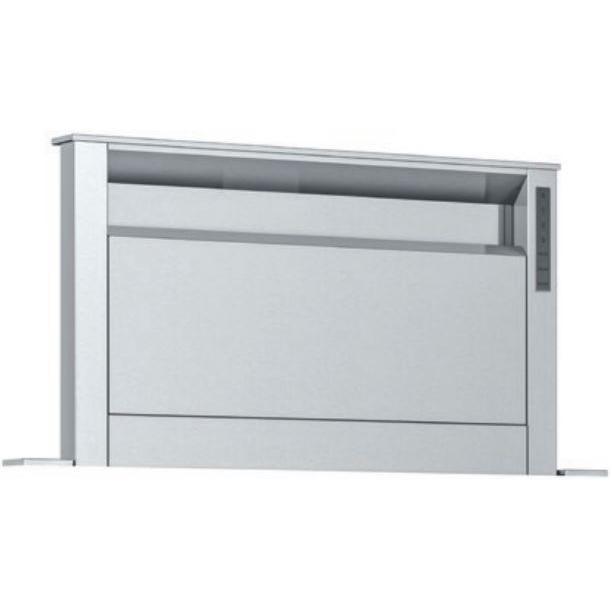

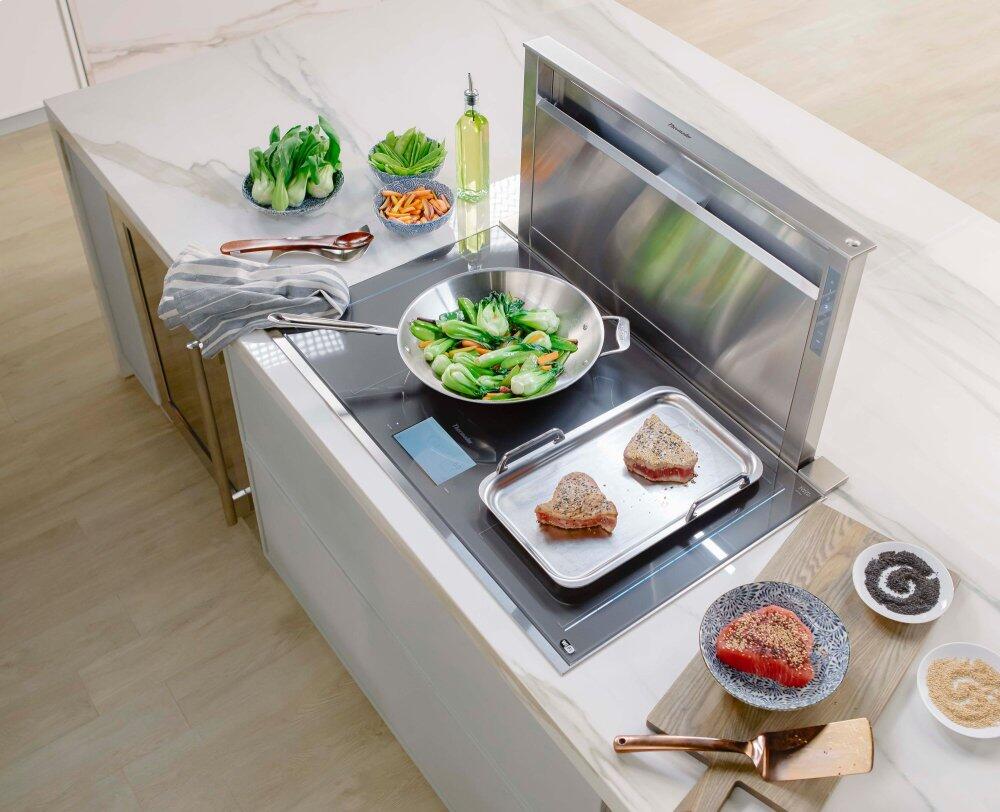

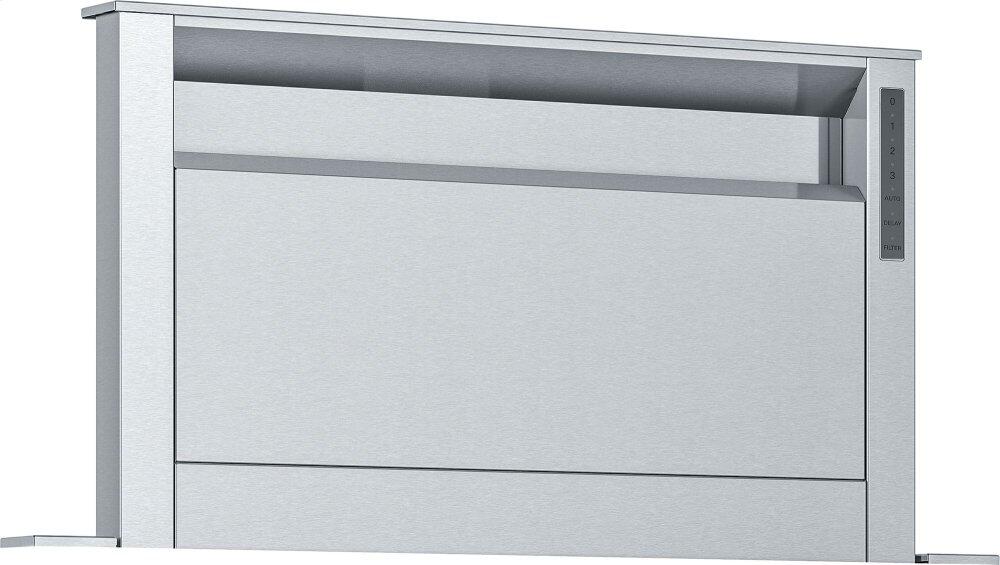

This Thermador 30" Masterpiece Downdraft features an automatic mode, a delay shut-off, a check filter light, and 15" telescopic design that rises to capture heat, smoke, grease, and steam.
Features
- Ducting Information:
• Diameter of air duct - internal: 8"
• Diameter of air duct - external: 6", 8" or 10" - Additional Information:
• 15" telescopic design rises to capture heat, smoke, grease, and steam
• Flexible discharge design gives 6 configurations to maximize space
• Remote or inline blowers to reduce noise, integral for topperformance
• Features automatic mode, delay shut-off, and check filter light
• Recirculation kit available, use with induction/electric cooktops only - Dishwasher-Proof Filters:
Y - Speeds:
3-stage settings
Accessories
- Optional:
• CVTSIDE6 – 6" Side / Rear Transition
• CVTSIDE8 – 8" Side / Rear Transition
• CVTSIDE10 – 10" Side / Rear Transition
• CVTFRONT6 – 6" Round Front Plate
• CVTFRONT8 – 8" Round Front Plate
• CVTFRONT10 – 10" Round Front Plate
• CVDUCT2 – 2' Rectangular Duct
• CVTRECT2 – Transition for Rectangular Duct
Documents
Specifications

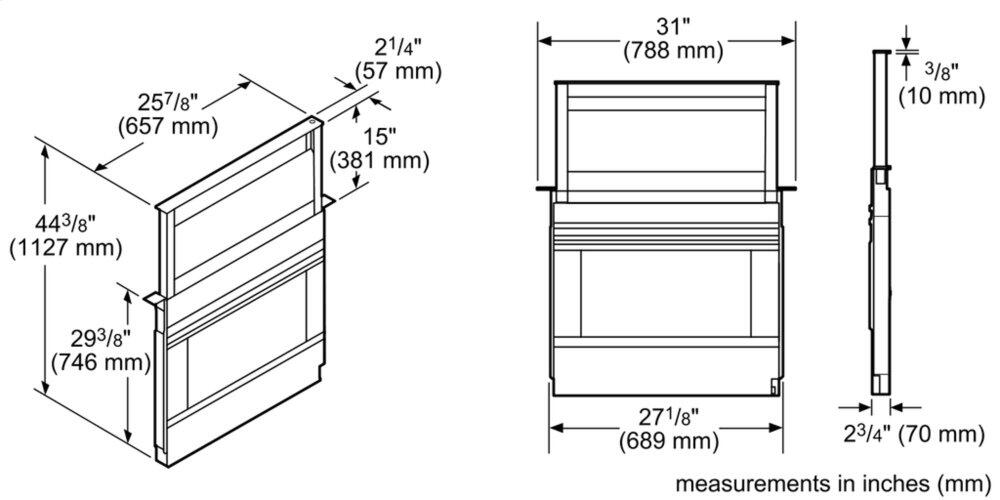

Dimensions
Width31"Height44"Depth2"
Finish: Stainless Steel
MPN: UCVM30XS
Product Details:
UPC#
825225960881Weight
16.78 kgDepth
6.99 cmHeight
112.7 cmWidth
78.74 cmClass Width
30"Additional Dimensions
Height of the rise: 15"Warranty
Limited 2 Years Parts and LaborOptional
• CVTSIDE6 – 6" Side / Rear Transition
• CVTSIDE8 – 8" Side / Rear Transition
• CVTSIDE10 – 10" Side / Rear Transition
• CVTFRONT6 – 6" Round Front Plate
• CVTFRONT8 – 8" Round Front Plate
• CVTFRONT10 – 10" Round Front Plate
• CVDUCT2 – 2' Rectangular Duct
• CVTRECT2 – Transition for Rectangular DuctSeries Name
MasterpieceStyle
DowndraftColor
Stainless SteelInstallation
Built-InDucting Information
• Diameter of air duct - internal: 8"
• Diameter of air duct - external: 6", 8" or 10"Additional Information
• 15" telescopic design rises to capture heat, smoke, grease, and steam
• Flexible discharge design gives 6 configurations to maximize space
• Remote or inline blowers to reduce noise, integral for topperformance
• Features automatic mode, delay shut-off, and check filter light
• Recirculation kit available, use with induction/electric cooktops onlyDishwasher-Proof Filters
YSpeeds
3-stage settingsInformation
• 120 V
• 60 Hz
• 10 A
UPC: 8.25226E+11
Weight: 16.78
