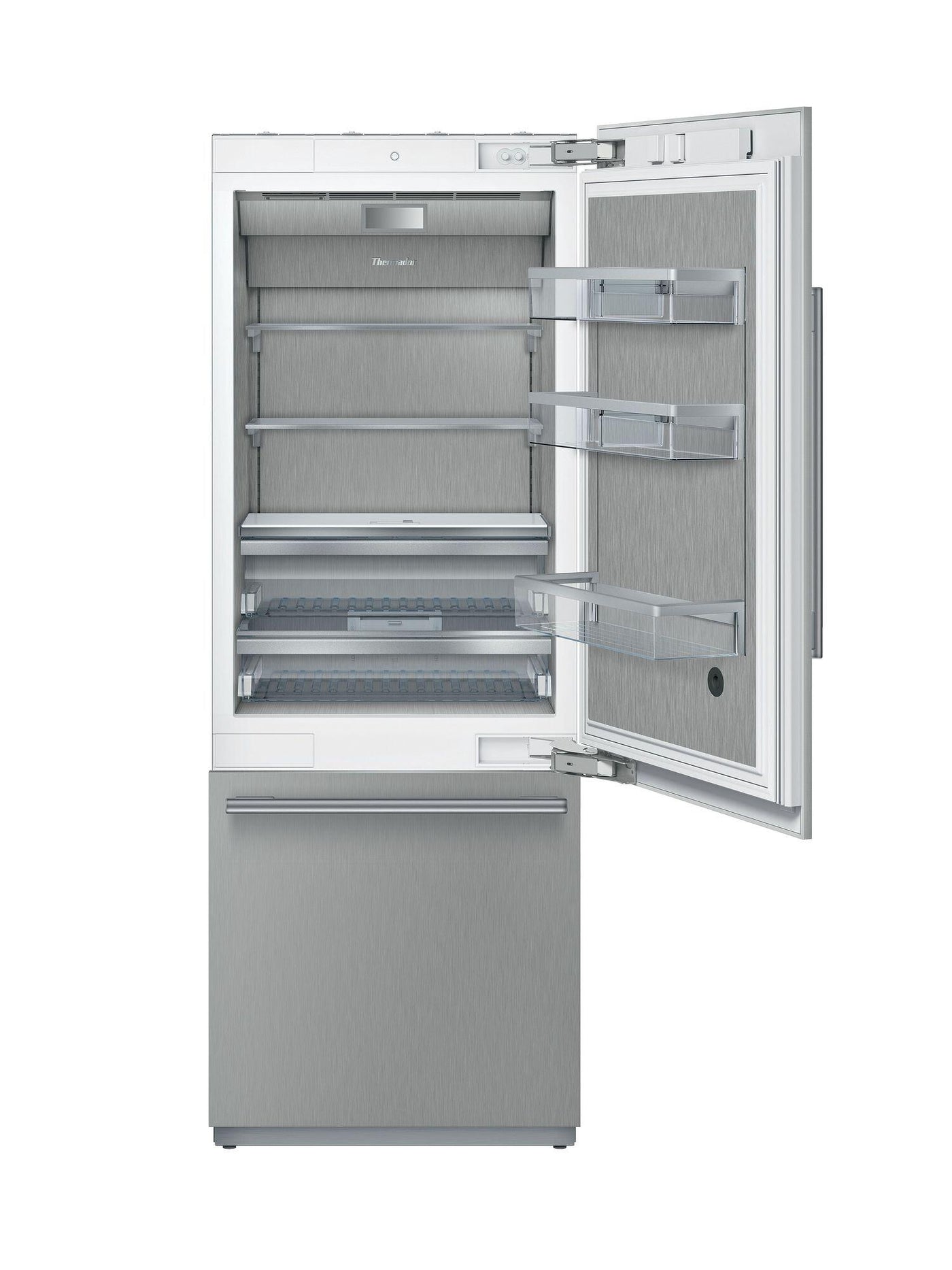

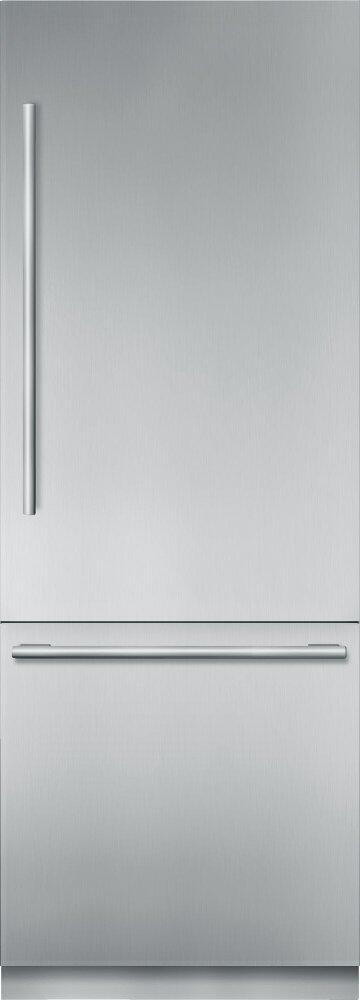

This 30-inch wide Thermador bottom freezer refrigerator features Home Connect™ (Wi-Fi Enabled), LED sidewall and theater lighting, a TFT control panel and a total capacity of 16.0 cu.ft.
FREEDOM® HINGEEngineered specifically for the Freedom Collection, all units feature a heavy duty hinge that allows for a fully flush installation and the ability to support custom panels.
OPEN DOOR ASSIST
Open door assist automatic door opening with just a slight push or a pull
SOFTCLOSE® DRAWERS
Softclose® drawers and produce bins for easy and controlled storage
TFT DISPLAY
A touch-screen TFT display panel controls settings throughout the refrigeration unit, including individual temperature control, lighting and Open Door Assist.
Door Hinge
Right
Accessories
- Optional:
• 30-Inch Half Gallon Bin 30HFGALBIN
• Large Produce Bin LPRODBIN10
• 30-Inch Produce Railing 30PRODRAIL
• Freedom® Water Filter REPLFLTR55
• Freedom® Frame Kit FRAMEKIT10
• Freedom® Heater Kit HEATRKIT20
Documents
Specifications
Total
16.0 cu. ft.Refrigerator
11.5 cu. ft.Freezer
4.5 cu. ft.Energy Star Certified
YSabbath Mode
YInstallation Type
Built-InManufacturer Color
Stainless SteelColor
Stainless SteelDoor Hinge
RightRefrigerator Type
Bottom FreezerSeries Name
Freedom® Collection, Masterpiece® Series HandlesFrost Free
YInterior Light
YElectronic Sensors
YGallon Door
YAdditional Information
• Reversible Door Swing
• LED Sidewall and Theater Lighting
• 3 Shelves (2 Adjustable)
• Shelf Material Glass with Aluminum Profile
• Full Extension Drawers @ 115° Door Opening Angle
• Full Extension Drawers @ 90° Door Opening Angle
• 1 Adjustable Temperature Drawer
• 1 Humidity Managed Drawer
• 2 Door Bins
• 1 Gallon Door Bin
• Open Door Assist
• TFT Control Panel
• Refrigerator 36°F (2°C) to 46°F (8°C)
• SuperCool 36°F (2°C) for Approximately 6 Hours
• Energy Saving (Economy) Mode: Refrigerator: 45°F (7°C)Technologies
• Home Connect™ (Wi-Fi Enabled)
• SoftClose® Door
• SoftClose® Drawers
• Carbon Air Filter
• SuperCool
• SuperFreeze®
• Freedom® Hinge
• ThermaFresh SystemCrisper Drawers
YDigital Display
YWi-Fi

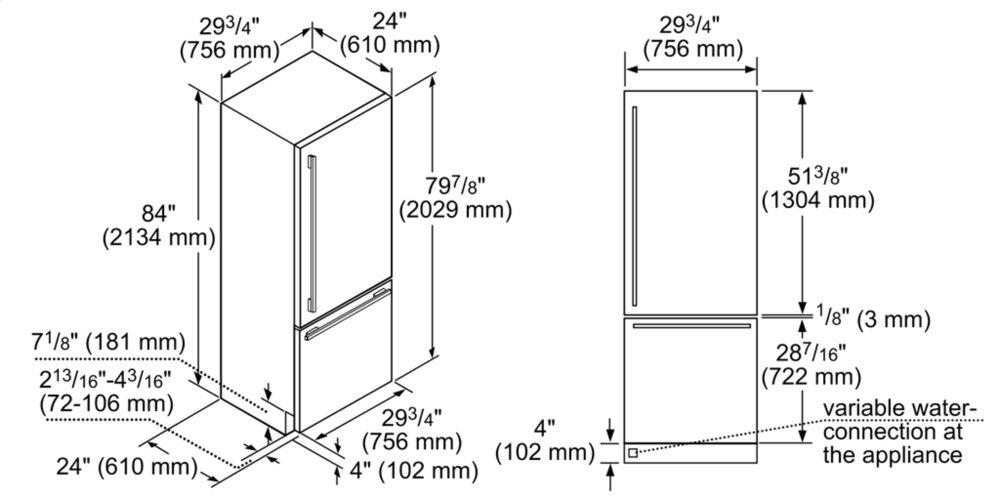

YHeight (With Hinge)
202.9 cmWidth
75.6 cmAdditional Dimensions

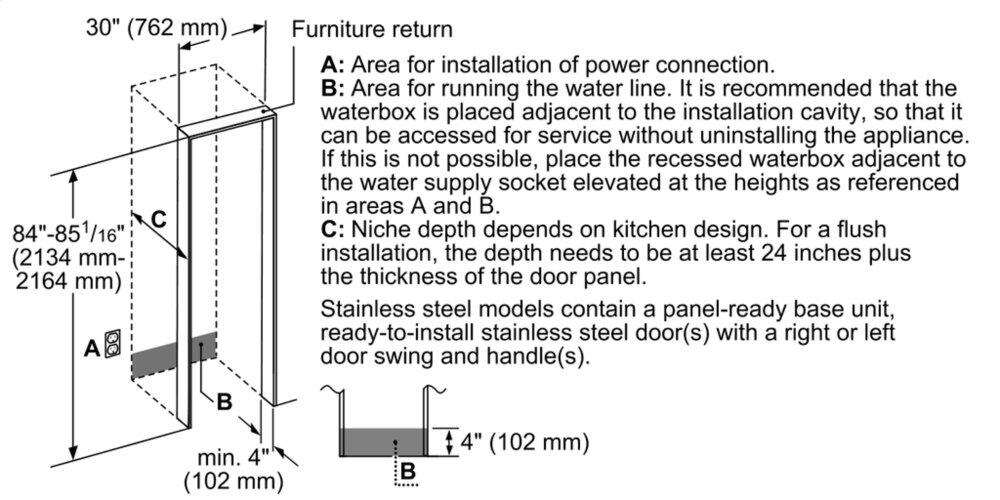

Required Cutout Size (H x W x D): 84" x 30" x 25"Class Width
29" to 31.9"Weight
218.18 kgClass Height
70" and MoreDepth (Without Handles)
61.0 cmAdditional Freezer Information
• 2 Baskets
• Energy Saving (Economy) Mode: Freezer 3°F (-16°C)
• SuperFreeze® -22°F (-30°C) for Approximately 52 HoursDispenser Features
Ice Maker with Diamond Ice SystemIce System
InteriorFiltration
YWeight
237.23 kgInformation
• 470 kWh
• 110 V - 120 V
• 60 Hz
• 15 AWarranty
• Limited, Entire Appliance, Parts and Labor on Any Part of the Refrigerator that Fails Because of a Manufacturing Defect 2 Year
• Limited Warranty for Sealed Refrigeration System; Parts and Labor 3rd to 6th Year
• Limited Warranty for Sealed Refrigeration System; Parts Only 7th to 12th Year
• Limited Warranty for Stainless Steel Rust-Through LifetimeOptional
• 30-Inch Half Gallon Bin 30HFGALBIN
• Large Produce Bin LPRODBIN10
• 30-Inch Produce Railing 30PRODRAIL
• Freedom® Water Filter REPLFLTR55
• Freedom® Frame Kit FRAMEKIT10
• Freedom® Heater Kit HEATRKIT20UPC#
825225960447
