Thermador 30-inch Freedom® collection built-in panel-ready 2-door bottom freezer refrigerator. It features the Freedom® hinge that enables a true flush design, an auto door opening, the ThermaFresh system and SoftClose® drawers for an easy and controlled storage. This sleek clean design offers the perfect symmetry when paired with additional columns.
FREEDOM® HINGEEngineered specifically for the Freedom Collection, all units feature a heavy duty hinge that allows for a fully flush installation and the ability to support custom panels.
THERMAFRESH SYSTEM
Thermafresh system, humidity and temperature controlled drawers
SOFTCLOSE® DRAWERS
Softclose® drawers and produce bins for easy and controlled storage
TFT DISPLAY
A touch-screen TFT display panel controls settings throughout the refrigeration unit, including individual temperature control, lighting and Open Door Assist.
THEATER LIGHTING
See your ingredients in a new light. Theater-style, diffused and filtered lighting, ensures visibility while limiting hot spots.
Door Hinge
Right
Accessories
- Optional:
• TFL30IB800: 30-Inch 2-Door Flat Stainless Steel Door Panel For use with Handle
• TFL30IB905: 30-Inch 2-Door Flat Stainless Steel Door Panel, Handleless
• PR36HNDL20: 36" Professional Series Handle
• PR30HNDL20: 30" Professional Series Handle
• MS36HNDL20: 36" Masterpiece® Series Handle
• MS30HNDL20: 30" Masterpiece® Series Handle
• FRAMEKIT10: Freedom® Frame Kit
• 30HFGALBIN: 30-Inch Half Gallon Bin
• SPRODBIN10: Small Produce Bin
• LPRODBIN10: Large Produce Bin
• 30PRODRAIL: 30-Inch Produce Railing
• REPLFLTR55: Freedom® Water Filter Replacement
• HEATRKIT20 – 13W @ 120V: Freedom® Heater Kit
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
- Additional documents(en)
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications
Manufacturer Color
Panel Ready (custom panels sold separately)Door Hinge
RightColor
Panel ReadySeries Name
Freedom® CollectionInstallation Type
Built-InRefrigerator Type
Bottom FreezerInterior Light
YDoor Alarm
YTechnologies
• Home Connect™ (Wi-Fi Enabled)
• SoftClose® Door
• SoftClose® Drawers
• SuperCool
• SuperFreeze®Additional Information
• Refrigerator: 36°F (2°C) to 46°F (8°C)
• SuperCool: 36°F (2°C) for approximately 6 hours
• Energy saving (Economy) mode: Refrigerator: 45°F (7°C), Freezer: 3°F (-16°C)
• Freezer: -11°F (-24°C) to 7°F (-14°C)
• SuperFreeze®: -22°F (-30°C) for approximately 52 hours
• Shelf material glass with aluminum profile
• Carbon air filter
• LED sidewall and Theater lighting
• Reversible door swing
• Refrigerator shelves: 3
• Adjustable shelves: 2
• Full extension drawers @ 115° door opening angle
• Full extension drawers @ 90° door opening angle
• Adjustable temperature drawer: 1
• Humidity managed drawer: 1
• Door bins: 2
• Gallon door Bin: 1
• Door open alarm
• Open door assistFrost Free
YDigital Display
YGallon Door
YCrisper Drawers
YWi-Fi
YWeight
184.61 kgAdditional Dimensions

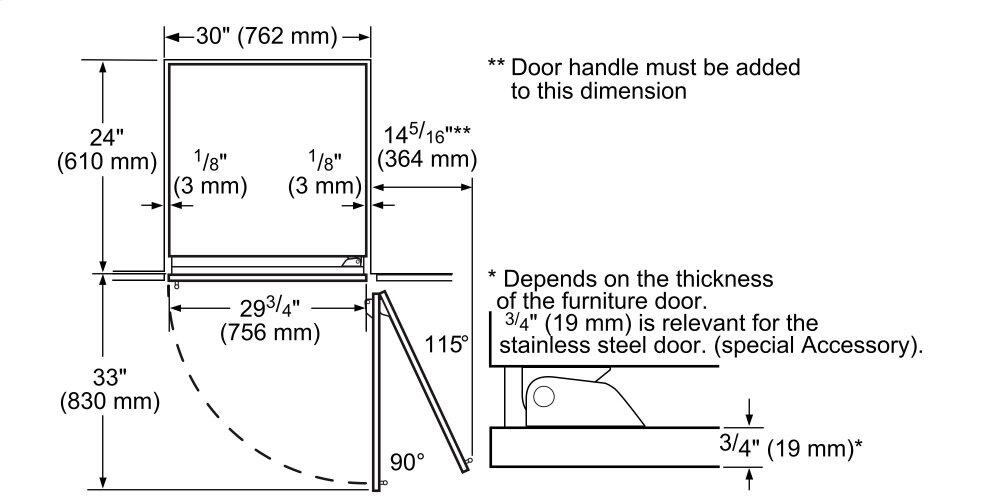

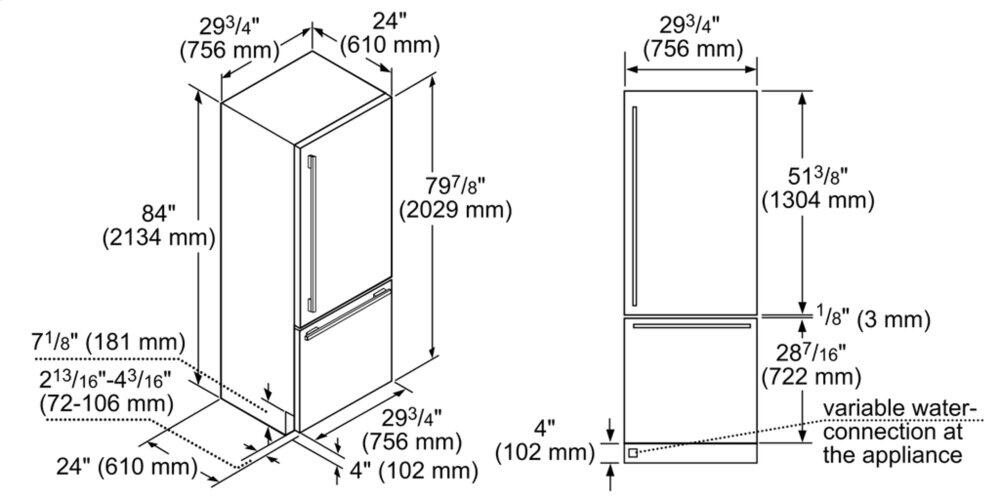

• Required cutout size (H x W x D): 84" x 30" x 25"
• Power cord length: 118"Depth (Without Handles)
60.96 cmClass Width
29" to 31.9"Width
75.57 cmHeight (With Hinge)
212.73 cmClass Height
70" and MoreWeight
201.4 kgAdditional Freezer Information
• Freezer Baskets: 2
• Ice Maker with Diamond Ice SystemSabbath Mode
YCSA Certified
YEnergy Star Certified
YUPC#
825225960461Freezer
4.5 cu. ft.Refrigerator
11.5 cu. ft.Total
16.0 cu. ft.Ice System
InteriorWarranty
• 2 Year: Limited, entire appliance, parts and labor on any part of the refrigerator that fails because of a manufacturing defect
• 3rd to 6th Year: Limited warranty for sealed refrigeration system on parts and labor
• 7th to 12th Year: Limited warranty for sealed refrigeration system on parts only
• Lifetime: Limited warranty for stainless steel rust-throughOptional
• TFL30IB800: 30-Inch 2-Door Flat Stainless Steel Door Panel For use with Handle
• TFL30IB905: 30-Inch 2-Door Flat Stainless Steel Door Panel, Handleless
• PR36HNDL20: 36" Professional Series Handle
• PR30HNDL20: 30" Professional Series Handle
• MS36HNDL20: 36" Masterpiece® Series Handle
• MS30HNDL20: 30" Masterpiece® Series Handle
• FRAMEKIT10: Freedom® Frame Kit
• 30HFGALBIN: 30-Inch Half Gallon Bin
• SPRODBIN10: Small Produce Bin
• LPRODBIN10: Large Produce Bin
• 30PRODRAIL: 30-Inch Produce Railing
• REPLFLTR55: Freedom® Water Filter Replacement
• HEATRKIT20 – 13W @ 120V: Freedom® Heater KitInformation
• Watts: 350 W
• Current: 15 A
• Volts: 110-120 V
• Frequency: 60 Hz
• Plug type: 120V-3 Prong
