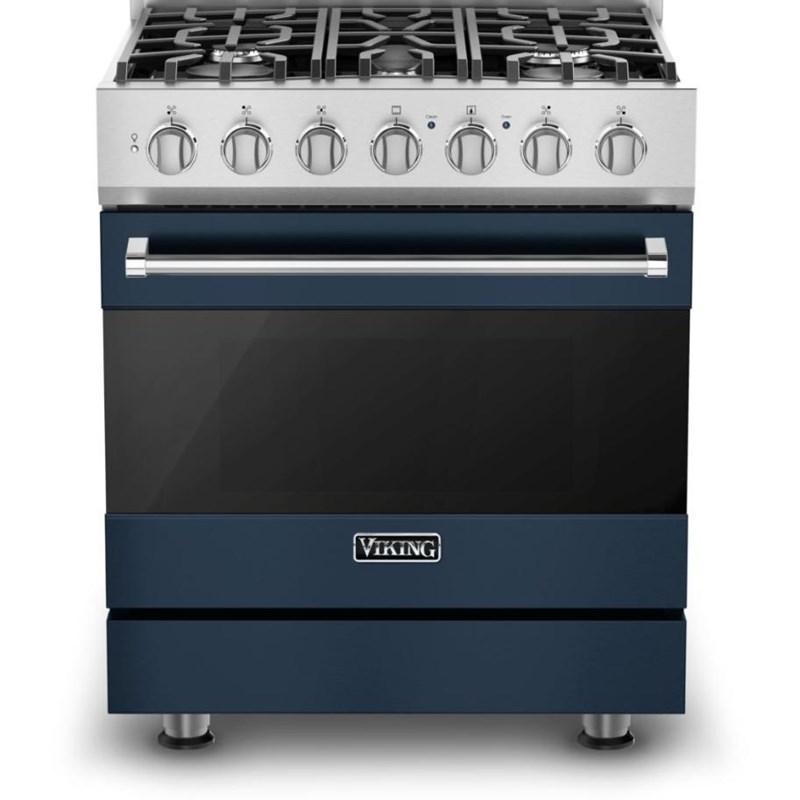

This 30-inch wide Viking gas range features 5 sealed burners, SureSpark™ ignition system, TruGlide™ oven racks and ProFlow™ convection baffle.
FIVE PERMANENTLY SEALED BURNERSWith a variety of BTU ratings including a fifth burner, this range can handle all of your surface cooking needs.
SURESPARK™ IGNITION SYSTEM
The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
CONTINUOUS GRATE
It’s a breeze to slide stew laden pots or to utilize multiple burners with the heavy-duty virtually continuous grate surface.
TRUGLIDE™ OVEN RACKS
This large capacity oven has six rack positions and ships standard with TruGlide oven racks.
PROFLOW™ CONVECTION BAFFLE
Bake breads and cakes to lofty perfection with the incredibly even heat circulation of the ProFlo™ Convection Baffle system. Each ProFlow™ Baffle has been engineered specifically for each oven cavity to maximize even cooking.
Features
- Oven Light:
Y - Self-Cleaning:
Y - Technologies:
• ProFlow™ Convection Baffle
• TruGlide™ Oven Racks
• SureSpark™ Ignition System - Additional Information:
• Sealed Burners with Porcelainized, Cast-Iron Burner Caps
• Oven Has Six Porcelain-Coated Rack Supports and Comes Standard with One Truglide™ Full Extension Oven Rack and Two Standard Racks
• All Convection Functions Utilize The Proflow™ Convection Air Baffle; Specifically Designed to Ensure Balanced Air Flow for Even Heat Distribution
• Two Halogen Oven Lights
• 15,000 BTU Broiler
• Shipped Standard with Island Trim
• Durable Metal Die-Cast Knobs with Child-Proof, Push-to-Turn Safety - Convection:
Y
Accessories
- Optional:
• 6" High Backguard (RD301BG6SS)
• High Shelf (RD301HS24SS)
• Countertop Side Trim (RD24CSTSS)
• Countertop Rear Trim (P30CRTSS)
• Curb Base and Custom Curb Base Front (P30CBF4SS)
• LP Conversion Kit (RDLPKR)
• Accessory Portable Griddle/Grill (RDPGD) Available for use Over Center Burner
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
- Additional documents(en)
Specifications
Class Width
30"Depth (Including Handles)
73.7 cmAdditional Dimensions
• Oven Interior Height: 16-1/8" (40.9 cm)
• Oven Interior Width: 23" (58.4 cm)
• Overall Height: to Top of Side Trim – 35-7/8" (91.1 cm) Min.; 37" (94.0 cm) Max., Legs Adjust – 1-1/8" (2.9 cm)
• Overall Depth from Rear: to Front of Side Panel – 25" (63.5 cm)
• Overall Depth from Rear: to Front of Door – 25-3/4" (65.4 cm)
• Overall Depth from Rear: to Front of Control Panel – 27-1/8" (68.9 cm)
• Overall Depth from Rear: to end of Knobs – 29" (73.7 cm)Width
75.9 cmDepth (Without Handles)
68.9 cmHeight
91.1 cmBurners
SealedBurners/Elements
5Burners/Elements Output
• Left Front Burner: 18,000 BTU
• Left Rear Burner: 8,000 BTU
• Center Burner: 9,000 BTU
• Right Front Burner: 17,000 BTU
• Right Rear Burner: 12,000 BTUOven Light
YSelf-Cleaning
YTechnologies
• ProFlow™ Convection Baffle
• TruGlide™ Oven Racks
• SureSpark™ Ignition SystemAdditional Information
• Sealed Burners with Porcelainized, Cast-Iron Burner Caps
• Oven Has Six Porcelain-Coated Rack Supports and Comes Standard with One Truglide™ Full Extension Oven Rack and Two Standard Racks
• All Convection Functions Utilize The Proflow™ Convection Air Baffle; Specifically Designed to Ensure Balanced Air Flow for Even Heat Distribution
• Two Halogen Oven Lights
• 15,000 BTU Broiler
• Shipped Standard with Island Trim
• Durable Metal Die-Cast Knobs with Child-Proof, Push-to-Turn SafetyConvection
YInformation
• 120 V
• 60 Hz
• .74 AWarranty
• Two-Year Full – Complete Product
• Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items
• Five-Year Limited - Gas Burners and Electric OvensWeight
184.5 kgFuel Type
Natural GasSeries Name
3 SeriesManufacturer Color
Slate BlueColor
BlueInstallation Type
FreestandingAppliance Care
• Customer-Removable Knobs, Grates, and Burners/Caps for Easy Cleaning
• Self-Clean OvenNumber of Ovens
SingleCapacity (cu. ft.)
4.0 cu.ft.Programs
• Natural Airflow Bake
• Convection Bake
• Broil
• Convection Broil
• Convection Dehydrate
• Convection DefrostOptional
• 6" High Backguard (RD301BG6SS)
• High Shelf (RD301HS24SS)
• Countertop Side Trim (RD24CSTSS)
• Countertop Rear Trim (P30CRTSS)
• Curb Base and Custom Curb Base Front (P30CBF4SS)
• LP Conversion Kit (RDLPKR)
• Accessory Portable Griddle/Grill (RDPGD) Available for use Over Center Burner
