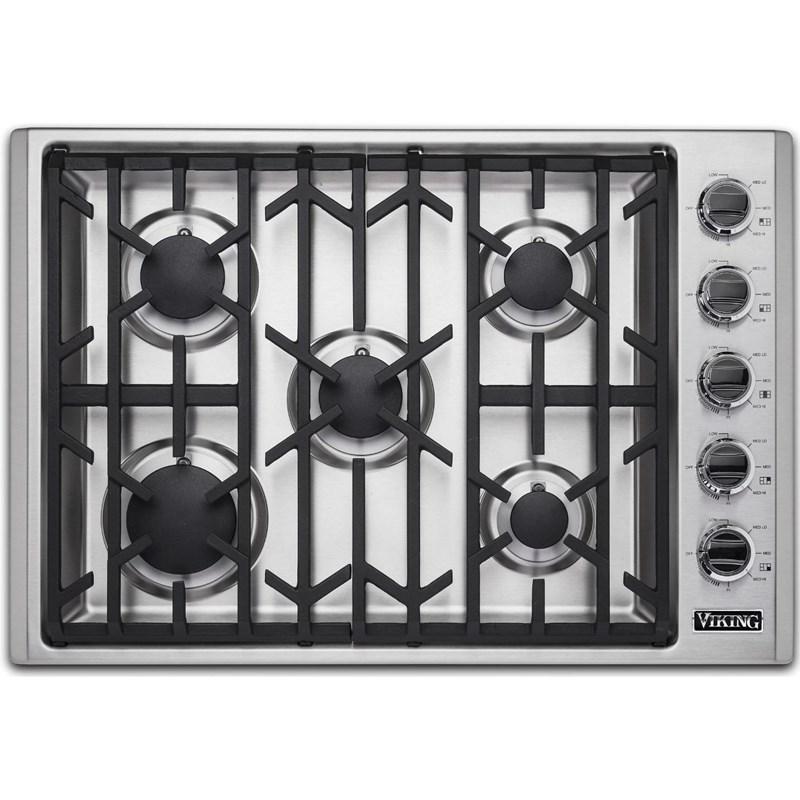

This 30-inch Viking 5 Series gas cooktop features SureSpark™ ignition system, 5 sealed burners and Black Chrome™ knobs.
PERMANENTLY SEALED BURNERSLet your pot runneth over with our easy to clean permanently sealed burners. Spills cannot enter the burner box providing easy cleanup.
HIGH PERFORMANCE COMMERCIAL-TYPE BURNERS
Powerful 18,000 BTU burner delivers commercial power for high heat sauteing, rapid boiling and quick recovery.
SUPERSPARK™ IGNITION SYSTEM
The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
SIMMER SETTINGS
Simmer settings on all burners allows low BTU output for heating delicate sauces.
SCRATCHSAFE™ GRATE DESIGN
Exclusive ScratchSafe™ Grate Design provides ultimate protection from scratches and ensures proper placement of the heavy-duty, porcelain-coated cast-iron grates.
Features
- Technologies:
• Black Chrome™ Knobs
• ScratchSafe™ Grate Design
• SureSpark™ Ignition System - Additional Information:
• SureSpark™ Ignition System for All Burners
• Sealed Burners with Brass Flame Ports, Removable Porcelain/Cast Iron Caps, and Automatic Ignition/Re-Ignition
• Spill Collection Area olds 8 Cups of Liquid Spills
Accessories
- Optional:
• WRGVGC Porcelain-Coated Cast Iron Wok Ring fits Securely Over Grates to Accommodate a Traditional Wok
• PGDVGC Portable Non-Stick Cast Aluminum Griddle fits Securely Onto Grates for Griddling or Defrosting Food
• LPKVGC LP/Propane Conversion Kit
• NKHAVGC High Altitude Natural Gas Conversion Kit
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
Specifications
Information
120 VHeight
11.4 cmWidth
78.1 cmClass Width
30"Additional Dimensions
• Cutout Width: 27-3/4" (70.5 cm) Minimum to 29-3/8" (74.6 cm) Maximum
• Cutout Height: 2-3/4" (7.0 cm)
• Cutout Depth: 19-1/8" (48.6 cm) Minimum to 20-1/8" (51.1 cm) MaximumDepth
53.3 cmType
Built-InSeries Name
5 SeriesFuel Type
Liquid PropaneManufacturer Color
Stainless SteelColor
Stainless SteelOptional
• WRGVGC Porcelain-Coated Cast Iron Wok Ring fits Securely Over Grates to Accommodate a Traditional Wok
• PGDVGC Portable Non-Stick Cast Aluminum Griddle fits Securely Onto Grates for Griddling or Defrosting Food
• LPKVGC LP/Propane Conversion Kit
• NKHAVGC High Altitude Natural Gas Conversion KitWarranty
• Two-Year Full – Complete Product
• Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items
• Five-Year Limited - Gas BurnersTechnologies
• Black Chrome™ Knobs
• ScratchSafe™ Grate Design
• SureSpark™ Ignition SystemAdditional Information
• SureSpark™ Ignition System for All Burners
• Sealed Burners with Brass Flame Ports, Removable Porcelain/Cast Iron Caps, and Automatic Ignition/Re-Ignition
• Spill Collection Area olds 8 Cups of Liquid SpillsBurners
SealedBurners/Elements
5Power Output
• Left Front Burner: 16,500 BTU High
• Left Rear Burner: 11,000 BTU High
• Center Burner: 11,000 BTU High
• Right Rear Burner: 7,000 BTU High
• Right Front Burner: 6,000 BTU HighWeight
30.39 kg
