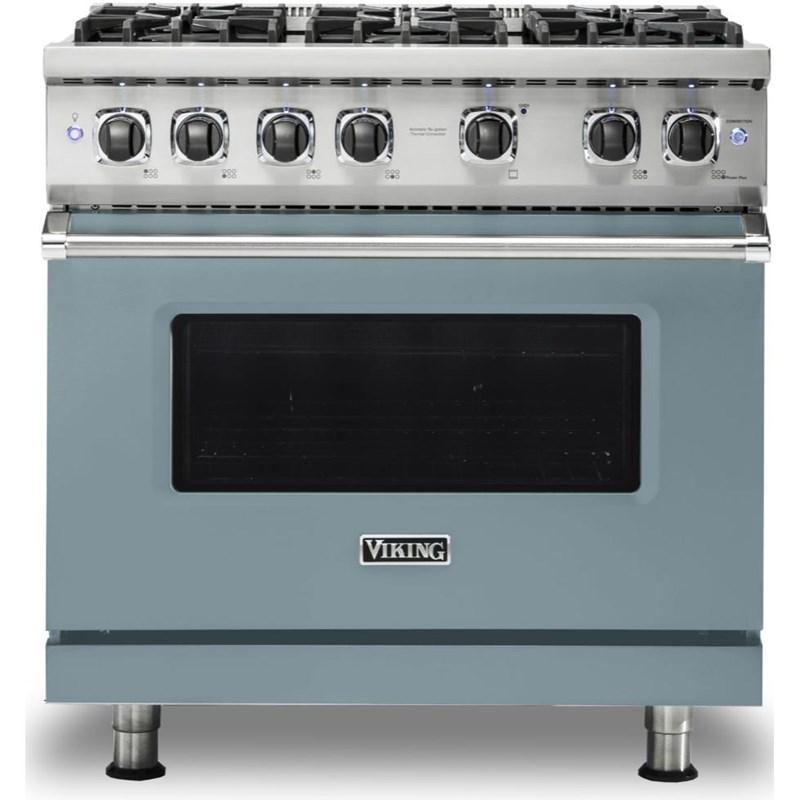

This 36-inch wide Viking, 5 Series gas range with 6 burners. This range features VSH™ Pro sealed burner System, VariSimmer™ setting on all burners, SureSpark™ ignition system and Gourmet-Glo™ gas infrared broiler.
GOURMET-GLO™ GAS INFRARED BROILERLock in all the savory juices of even the thickest porterhouse with the intense heat of the restaurant-quality Gourmet-Glo™ Infrared Broiler. Intense heat from broiler sears meats and fish locking in juices.
PORCELAINIZED COOKING SURFACE
Keep spills in one place with the raised edges of our exclusive one-piece tooled porcelainized cooking surface. Raised edges around perimeter seal top to completely contain spills. Porcelanized for easy cleaning, durability and long lasting finish.
PROFLOW™ CONVECTION BAFFLE
Bake breads and cakes to lofty perfection with the incredibly even heat circulation of the ProFlo™ Convection Baffle system. Each ProFlow™ Baffle has been engineered specifically for each oven cavity to maximize even cooking.
SURESPARK™ IGNITION SYSTEM
The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
VARISIMMER™ SETTING
The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
VSH™ PRO SEALED BURNER SYSTEM
Cook like a pro with up to 18,500 BTUs and infinite settings of easy-to-clean high performance sealed burners. A combination of a unique patented burner and surface design provides cleanability plus superior performance at any temperature setting.
Features
- Technologies:
• VSH™ Pro Sealed Burner System
• VariSimmer™ Setting
• SureSpark™ Ignition System
• Gourmet-Glo™ Gas Infrared Broiler
• Gentle Close™ Door
• ProFlow™ Convection Baffle - Oven Light:
Y - Convection:
Y - Additional Information:
• Porcelainized Cooking Surface
• 6 Oven Rack Positions
• 3 Racks
• Two Halogen Oven Lights
• Broil Burner: 18,000 BTU
• Bake Burner: 30,000 BTU
• Automatic Re-Ignition; Surface Burners Light at any Position on the Knob and Re-light if Extinguished, Even on Lowest Setting
• Heavy-Duty BlackChrome™ Knobs and Square Bezels Shipped Standard
• Heavy-Duty, Porcelainized, Cast-Iron Removable Surface Grates
Accessories
- Optional:
• 8"H. Backguard – BG8536BSS
• High Shelf – HS24536SS
• Countertop Side Trim - P24CST
• Countertop Rear Trim - P36CRT
• Curb Base and Custom Curb Base Front - P36CBF4
• LP/Propane Conversion Kit - LPKPDR - Included:
Island Trim (shipped standard with 36" range)
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
- Additional documents(en)
Specifications
Technologies
• VSH™ Pro Sealed Burner System
• VariSimmer™ Setting
• SureSpark™ Ignition System
• Gourmet-Glo™ Gas Infrared Broiler
• Gentle Close™ Door
• ProFlow™ Convection BaffleOven Light
YConvection
YAdditional Information
• Porcelainized Cooking Surface
• 6 Oven Rack Positions
• 3 Racks
• Two Halogen Oven Lights
• Broil Burner: 18,000 BTU
• Bake Burner: 30,000 BTU
• Automatic Re-Ignition; Surface Burners Light at any Position on the Knob and Re-light if Extinguished, Even on Lowest Setting
• Heavy-Duty BlackChrome™ Knobs and Square Bezels Shipped Standard
• Heavy-Duty, Porcelainized, Cast-Iron Removable Surface GratesDepth (Without Handles)
65.4 cmHeight
91.1 cmAdditional Dimensions
• Overall Height from Bottom: Base Height to Top of Side Trim – Minimum 35-7/8" (91.1 cm) to Maximum 37" (94 cm); Legs Adjust 1-1/8" (2.9 cm)
• Overall Height from Bottom: Additions to Base Height To top of Island Trim – Add 1" (2.5 cm); to Top of Backguard – Add 8" (15.2 cm); to Top of High Shelf – Add 23 1/2" (59.7 cm)
• Overall Depth from Rear: To end of Side Panel – 24 5/16" (61.8 cm); to Front of Door – 25-3/4" (65.4 cm); to End of Door Handle – 28-11/16" (72.9 cm)Width
91.1 cmDepth (Including Handles)
72.9 cmClass Width
36"Burners
SealedBurners/Elements
6Burners/Elements Output
• (1x) Burner TruPowerPlus™: 18,500 BTU
• (5x) Burners: 15,000 BTUOptional
• 8"H. Backguard – BG8536BSS
• High Shelf – HS24536SS
• Countertop Side Trim - P24CST
• Countertop Rear Trim - P36CRT
• Curb Base and Custom Curb Base Front - P36CBF4
• LP/Propane Conversion Kit - LPKPDRIncluded
Island Trim (shipped standard with 36" range)Series Name
5 SeriesFuel Type
Natural GasAppliance Care
• One-Piece Tooled and Porcelainized Cooking Surface for Easy Cleanup
• Burner Caps are Easily Removable for Quick CleaningInstallation Type
FreestandingManufacturer Color
November SkyColor
BlueInformation
• 120 V
• 60 Hz
• 1.5 ANumber of Ovens
SinglePrograms
• Natural Airflow Bake
• Convection Bake
• Infrared Broil
• Convection Infrared Broil
• Convection Dehydrate
• Convection DefrostCapacity (cu. ft.)
5.1 cu.ft.Warranty
• Two-Year Full – Complete Product
• Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items
• 5-Year Limited – Gas BurnersWeight
226.8 kg
