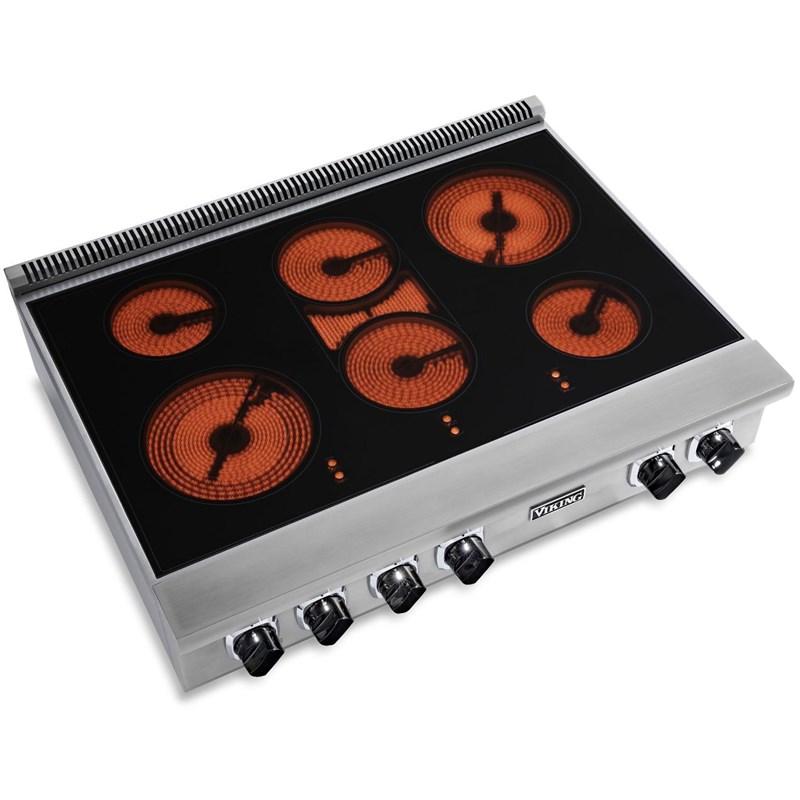

Viking 36" 5 Series Electric Rangetop with QuickCook™ Surface Elements that feature innovative ribbon technology that allows them to reach full power in just three seconds. The SoftLit™ LED lights enhance the control panel's appearance and provide illumination for the knobs, adding a stylish touch to your cooking area.
QUICKCOOK™ SURFACE ELEMENTSQuickCook™ Surface Infared Elements with ribbon technology reach full power in three seconds and provide fast technology with nearly all cookware.
BRIDGE ELEMENT
Bridge element connects front and rear elements to create a continuous heated surface for oversized cookware or optional griddle accessory.
SOFTLIT LED LIGHTS
SoftLit LED Lights accent the control panel and illuminate knobs.
HIGH INFRARED TRANSMISSION
Ensures fast and efficient surface cooking, regardless of the type of cookware used.
WIDE RANGE OF SURFACE ELEMENT AND WATTAGES
Offers a variety of element sizes and power levels for versatile cooking options.
Features
- Technologies:
• QuickCook™ Surface Elements utilize ribbon technology – elements reach full power in about three seconds
• SoftLit™ LED lights accent the control panel and illuminate knobs - Additional Information:
• 800-watt "bridge" element between right front and right rear elements; excellent for use in conjunction with both right elements for griddling with optional accessory
• High infrared transmission for fast surface cooking, regardless of type of cookware used
Accessories
- Optional:
• BG8536SS: 8"H. backguard for 36"W. electric rangetop
• P24CSTSS: countertop side trim (2 pieces)
• P36CRTSS: countertop rear trim for 36"W. rangetop
Documents
Specifications
Information
• Electrical Requirements: 3-Wire 240-208V / 60Hz 60amp
• Max. Amp Usage 240V: 49.2 A (11.8 kW)
• Max. Amp Usage 208V: 42.6 A (8.9 kW)Height
20.6 cmWidth
90.6 cmClass Width
36"Additional Dimensions
• Overall Depth (from rear) to end of side panel: 24-5/16" (61.8 cm)
• Overall Depth (from rear) to end of landing edge: 27-7/8" (70.8 cm)
• Overall Depth (from rear) to end of knobs: 28-3/16" (71.6 cm)
• Cutout Width: 36" (121.9 cm)
• Cutout Height: 7-1/2" (19.1 cm)
• Cutout Depth: 24" (61.0 cm)Weight
74.84 kgType
RangetopSeries Name
5 SeriesFuel Type
ElectricColor
Stainless SteelManufacturer Color
Stainless SteelOptional
• BG8536SS: 8"H. backguard for 36"W. electric rangetop
• P24CSTSS: countertop side trim (2 pieces)
• P36CRTSS: countertop rear trim for 36"W. rangetopWarranty
• Two-year full – complete product
• Ninety-day full – cosmetic parts such as glass, painted items, and decorative itemsTechnologies
• QuickCook™ Surface Elements utilize ribbon technology – elements reach full power in about three seconds
• SoftLit™ LED lights accent the control panel and illuminate knobsAdditional Information
• 800-watt "bridge" element between right front and right rear elements; excellent for use in conjunction with both right elements for griddling with optional accessory
• High infrared transmission for fast surface cooking, regardless of type of cookware usedElements
SmoothtopBurner/Element Size
• Right front: 6 1/2"
• Right rear (dual element): 9" / 6"
• Left front (dual element): 9" / 6"
• Left rear: 6 1/2"
• Center front: 7"
• Center rear: 7"Burners/Elements
6Power Output
• Right front: 1,500-watt element
• Right rear (dual element): 3,000/ 1,400-watt element
• Left front (dual element): 3,000/ 1,400-watt element
• Left rear: 1,500-watt element
• Center front: 1,800-watt element
• Center rear: 1,800-watt element
