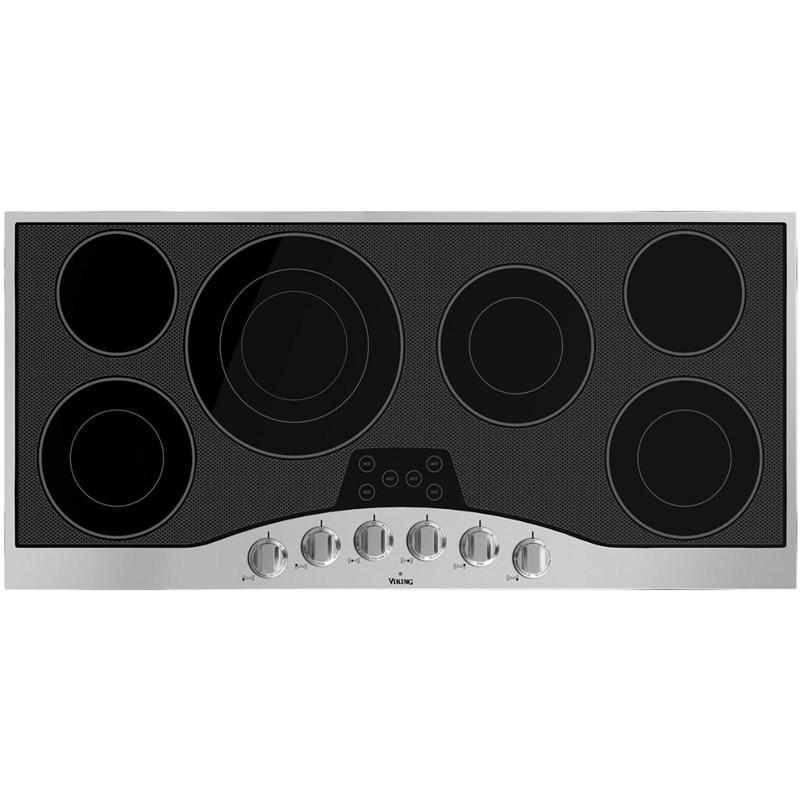

This 45-inch wide Viking electric cooktop features QuickCook™ surface elements, metal die-cast knobs and a glass-ceramic surface.
GLASS CERAMIC SURFACEDurable, wear resistant glass ceramic surface and laser-etched graphics withstand the rigors of regular cleaning.
QUICKCOOK™ SURFACE ELEMENTS
QuickCook™ Surface Infared Elements with ribbon technology reach full power in three seconds and provide fast technology with nearly all cookware.
METAL DIE-CAST KNOBS
Keep everything under control with our childproof metal die-cast knobs. These removable, push-to-turn knobs provide safe, easy operation as well as cleanup.
Features
- Additional Information:
• Durable Metal Die-Cast Knobs with Child-Proof, Push-to-Turn Safety Feature
• Customer-Removable Knobs for Easy Cleaning
• Overall/Burner Box Dimensions Designed to Fit the Majority of Similarly Sized Cooktop Cutouts - Technologies:
QuickCook™ Surface Elements
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
- Additional documents(en)
Specifications
Dimensions
Width45"Height4"Depth21"
Finish: Stainless Steel
MPN: RVEC345-6BSB
Product Details:
Elements
SmoothtopBurners/Elements
6Power Output
• Left Front Dual Element: 2,000 W
• Left Rear Single Elemen: 1,200 W
• Left Center Triple Element: 3,200 W
• Right Center Dual Element: 2,000 W
• Right Front Dual Element: 2,000 W
• Right Rear Single Element: 1,200 WBurner/Element Size
• Left Front Dual Element: 8 1/2"
• Left Rear Single Elemen: 6 1/2"
• Left Center Triple Element: 12"
• Right Center Dual Element: 8 1/2"
• Right Front Dual Element: 8 1/2"
• Right Rear Single Element: 6 1/2"Surface Features
Strong, Wear-Resistant Glass Ceramic Surface with Stainless SteelInformation
240 V / 208 VHeight
11.4 cmWidth
114.3 cmDepth
53.4 cmAdditional Dimensions
• Cutout Width: 43 1/8" (109.5 cm) Minimum, 44 1/8" (112.1 cm) Maximum
• Cutout Height: 3 1/8" (7.9 cm)
• Cutout Height with Conduit: 4 1/8" (10.5 cm)
• Cutout Depth: 20" (50.8 cm) Minimum; 20 1/4" (51.4 cm) MaximumClass Width
45"Additional Information
• Durable Metal Die-Cast Knobs with Child-Proof, Push-to-Turn Safety Feature
• Customer-Removable Knobs for Easy Cleaning
• Overall/Burner Box Dimensions Designed to Fit the Majority of Similarly Sized Cooktop CutoutsTechnologies
QuickCook™ Surface ElementsFuel Type
ElectricType
Built-InSeries Name
RVECColor
Stainless SteelManufacturer Color
Stainless SteelWarranty
• One-Year Full – Complete Product
• Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items
• Five-Year Limited – Surface ElementsWeight
32 kg
UPC: 0
