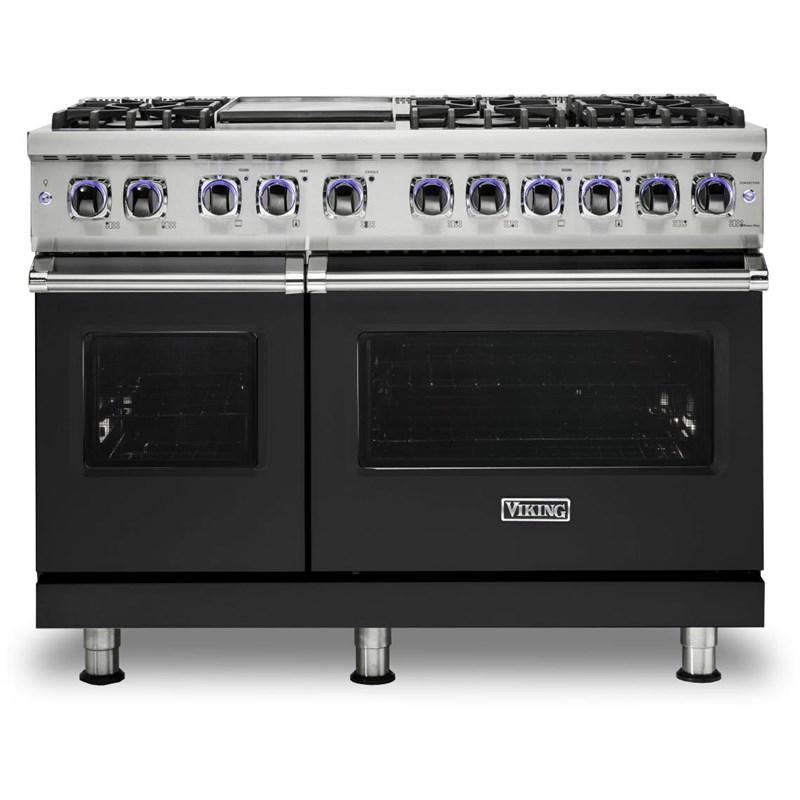

This 48-inch wide Viking, 7 Series, gas range with 6 burners and griddle features Elevation™ burners, SureSpark™ ignition system, Gourmet-Glo™ gas infrared broiler, and a 6.1 cu.ft. total capacity (2 ovens).
COOLLIT™ LED LIGHTSBlackChrome™ Knobs with CoolLit™ LED backlighting.
ELEVATION™ BURNERS
Elevation™ Burners with brass flame ports boast 23,000 BTUs across the front of all width configurations, with multiple 15,000 BTUs and one 8,000 BTU burner across the rear.
GOURMET-GLO™ GAS INFRARED BROILER
Lock in all the savory juices of even the thickest porterhouse with the intense heat of the restaurant-quality Gourmet-Glo™ Infrared Broiler. Intense heat from broiler sears meats and fish locking in juices.
SURESPARK™ IGNITION SYSTEM
The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
VARISIMMER™ SETTING
The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
Features
- Technologies:
• Viking Elevation™ Burners with Brass Flame Ports
• VariSimmer™ Setting on All Burners
• SureSpark™ Ignition System
• GentleClose™ Door
• BlackChrome™ Knobs with CoolLit™ LED Backlighting
• TruGlide™ Full Extension Rack
• Gourmet Glo™ Infrared Broiler
• Proflow™ Convection Baffle - Additional Information:
• Continuous Grate
• Easy to Clean Porcelainized Oven Cavity
• Grates, Burner Caps, Knobs, Griddle and Accessories can be Easily Removed
• Larger Window Opening - Convection:
Y
Accessories
- Optional:
• BG107482SS 10"H. Backguard for 48" Range
• HS24748SS 24"H. High Shelf for 48" Range
• P48CRTSS Countertop Rear Trim for 48" Range
• CRG7VGR ViChrome Griddle Accessory (for Use with Griddle Model)
• CBGVGR Bamboo Cover for 7 Series
• LPKVGR LP/Propane Conversion Kit for 7 Series
• GCKVGR Gas Connector Kit for 7 Series
• WOKVGR7 Wok Ring Accessory for 7 Series
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
- Additional documents(en)
Specifications
Class Width
48"Depth (Including Handles)
76.2 cmAdditional Dimensions
• Overall Height: to Top of Side Trim – 35-15/16" (91.3 cm) Min. 37-9/16" (95.4 cm) Max. Legs Adjust – 1-5/8" (4.1 cm)
• Overall Depth from Rear*: to End of Side Panel – 25-1/4" (64.1 cm)
• Overall Depth from Rear*: to Front of Door – 26-15/16" (68.4 cm)
• Overall Depth from Rear*: to End of Door Handle – 30" (76.2 cm)
• *Add 3/4" (1.9 cm) to Overall Depth for Models Installed Against a Combustible Wall
• Additions to Base Height: to Top of island trim – Add 1" (.5 cm)
• Additions to Base Height: to Top of Backguard – Add 10" (25.4 cm)
• Additions to Base Height: to Top of High Shelf – Add 24-1/8" (61.3 cm)Width
121.6 cmDepth (Without Handles)
68.4 cmHeight
91.3 cmBurners
SealedOther
GriddleBurners/Elements
7Burners/Elements Output
• (3x) Front Burners: 23,000 BTU
• (2x) Rear Burners: 15,000 BTU
• (1x) Griddle: 15,000 BTU
• (1x) Burner: 8,000 BTUInformation
• 120 V
• 60 HzWarranty
• Two-Year Full – Complete Product
• Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items
• Five-Year Limited - Gas Burners and Electric OvensWeight
313.89 kgPrograms
• Natural Airflow Bake
• Convection Bake
• Infrared Broil
• Convection Infrared Broil
• Convection Dehydrate
• Convection DefrostNumber of Ovens
DoubleCapacity (cu. ft.)
• Total Capacity: 6.1 cu.ft.
• Large Oven: 4.0 cu.ft.
• Small Oven: 2.1 cu.ft.Fuel Type
Natural GasSeries Name
7 SeriesManufacturer Color
Cast BlackColor
BlackInstallation Type
FreestandingTechnologies
• Viking Elevation™ Burners with Brass Flame Ports
• VariSimmer™ Setting on All Burners
• SureSpark™ Ignition System
• GentleClose™ Door
• BlackChrome™ Knobs with CoolLit™ LED Backlighting
• TruGlide™ Full Extension Rack
• Gourmet Glo™ Infrared Broiler
• Proflow™ Convection BaffleAdditional Information
• Continuous Grate
• Easy to Clean Porcelainized Oven Cavity
• Grates, Burner Caps, Knobs, Griddle and Accessories can be Easily Removed
• Larger Window OpeningConvection
YOptional
• BG107482SS 10"H. Backguard for 48" Range
• HS24748SS 24"H. High Shelf for 48" Range
• P48CRTSS Countertop Rear Trim for 48" Range
• CRG7VGR ViChrome Griddle Accessory (for Use with Griddle Model)
• CBGVGR Bamboo Cover for 7 Series
• LPKVGR LP/Propane Conversion Kit for 7 Series
• GCKVGR Gas Connector Kit for 7 Series
• WOKVGR7 Wok Ring Accessory for 7 Series
