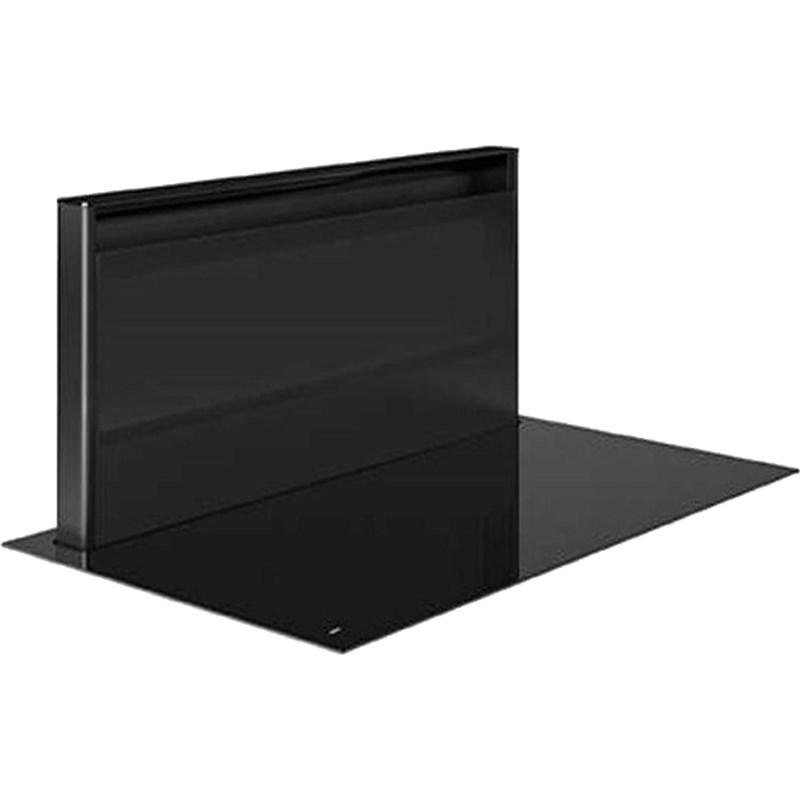

This Viking RVL Collection bridges present and future with a fully integrated design that fits seamlessly into surrounding cabinetry. Although its sleek look is decidedly minimal, it boldly conveys Viking performance at a glance. And rest assured, no commercial cooking power was sacrificed for appearance sake. With streamlined silhouettes, a sleek user interface, transitional sizes, and outfitted in stunning black glass this collection gives you limitless contemporary design possibilities that will ignite your culinary passions.
Features
- Technologies:
MagneQuick Induction Elements use magnetic energy for superior power, rapid heat response, and enhanced energy efficiency - Downdraft Ventilation:
Y - Additional Information:
• All black glass front offers a sleek, modern aesthetic to complement any kitchen style
• Electronic touch control ensures effortless operation with a responsive, minimalist interface
• Can be installed flush or integrated, allowing for flexible design options to match any kitchen layout
• Nine power levels plus double boost
• Simmer setting provides gentle, consistent heat, ideal for melting delicate ingredients or keeping food warm
• Power management system delivers an extra boost of power for faster boiling and reduced cooking time
• Element lights indicate active heating zones and hot surfaces, enhancing safety during cooking
• Sensor automatically turns off the element when cookware is not detected, preventing unnecessary energy use, while the pause function allows for easy cooking adjustments
• Two timer functions provide precise cooking control, with one dedicated to the cooktop element and another as a standalone timer for multitasking in the kitchen
• Automatic bridge function
• Variable blower speeds with three intense power settings
• Integrated downdraft seamlessly retracts, becoming flush with the cooktop when not in use.
• Variable downdraft heights
• Delay Off setting
Accessories
- Optional:
• MVRK48 (GR/BK/WH) – 48"W. Recirculating Kit
• CF48IDC – 48" Charcoal Filter
• DAKIDC – Duct Adapter Kit
Documents
Specifications
Surface Features
Built-in Downdraft CFM: 177/497/663 (Low/Normal/Boost)Elements
SmoothtopBurners/Elements
5Power Output
(5) 3,000 watt elementsInformation
• Cooktop - Electrical Requirements: 208-240V 2 phase 3X 8AWG conduit/50-60 Hz
• Downdraft - Electrical Requirements: 110-130V 4' Type B 3 Prong Plug/50-60Hz
• Cooktop - Max. Amp Usage: 50
• Downdraft - Max. Amp Usage: 5.5Height
8.89 cmWidth
118.11 cmClass Width
48" or MoreAdditional Dimensions
• Cutout Width: 45-11/16" (116 cm)
• Cutout Depth: 19-9/16" (49 cm)Depth
52.07 cmType
Built-InSeries Name
RVL SeriesFuel Type
Electric InductionColor
BlackManufacturer Color
Black GlassOptional
• MVRK48 (GR/BK/WH) – 48"W. Recirculating Kit
• CF48IDC – 48" Charcoal Filter
• DAKIDC – Duct Adapter KitWarranty
• 2-year full – complete product
• 90-day full – cosmetic parts such as glass, painted items and decorative items
• 5-year limited – induction element components and ventilator motorTechnologies
MagneQuick Induction Elements use magnetic energy for superior power, rapid heat response, and enhanced energy efficiencyDowndraft Ventilation
YAdditional Information
• All black glass front offers a sleek, modern aesthetic to complement any kitchen style
• Electronic touch control ensures effortless operation with a responsive, minimalist interface
• Can be installed flush or integrated, allowing for flexible design options to match any kitchen layout
• Nine power levels plus double boost
• Simmer setting provides gentle, consistent heat, ideal for melting delicate ingredients or keeping food warm
• Power management system delivers an extra boost of power for faster boiling and reduced cooking time
• Element lights indicate active heating zones and hot surfaces, enhancing safety during cooking
• Sensor automatically turns off the element when cookware is not detected, preventing unnecessary energy use, while the pause function allows for easy cooking adjustments
• Two timer functions provide precise cooking control, with one dedicated to the cooktop element and another as a standalone timer for multitasking in the kitchen
• Automatic bridge function
• Variable blower speeds with three intense power settings
• Integrated downdraft seamlessly retracts, becoming flush with the cooktop when not in use.
• Variable downdraft heights
• Delay Off setting
