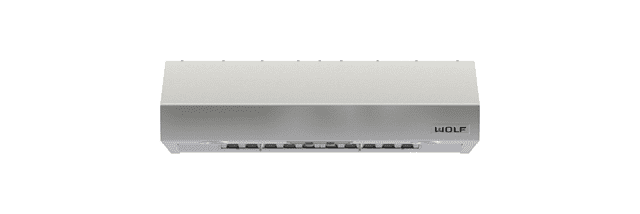

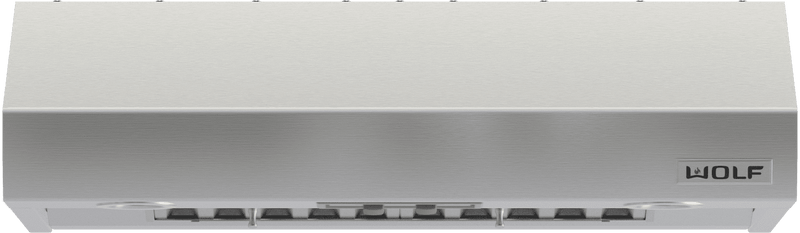

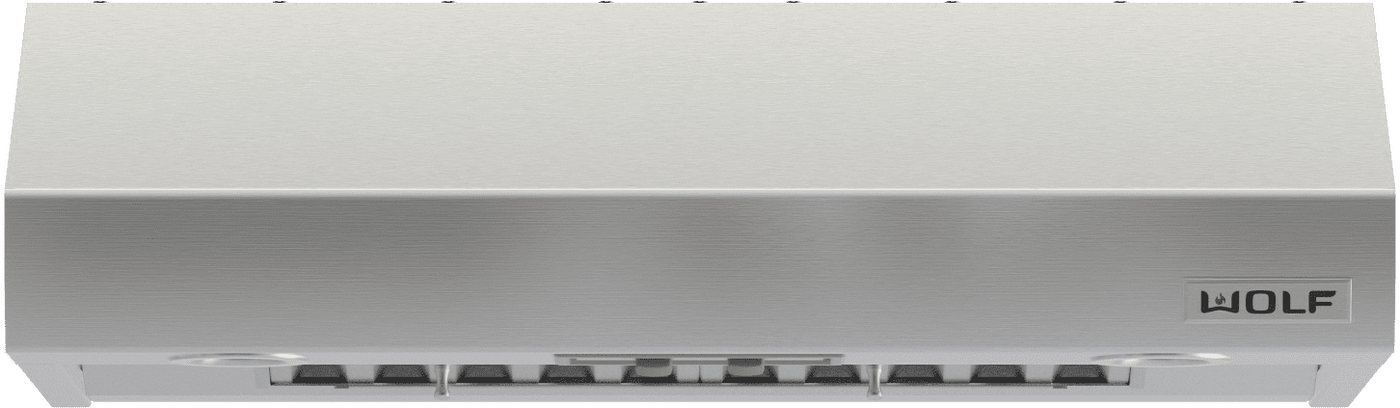

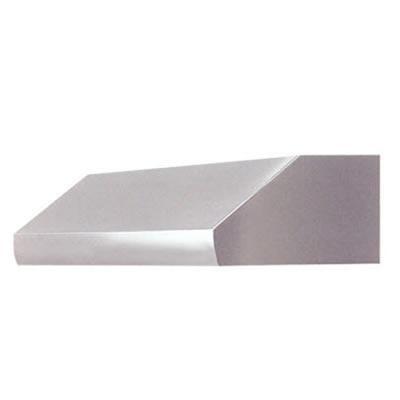

Pro low profile 36 inch wall ventilation hood. With standard features like heat sentry and dual setting halogen lighting, Wolf Pro wall hoods provide the ultimate in ventilation. Pro low-profile wall ventilation hoods are available in four widths and all have the classic stainless steel finish.

The left rotary switch operates the halogen lights. There are two settings, HIGH and LOW. The LOW setting can be used as a night-light. From the OFF position, turn the switch to the desired light setting, left for LOW and right for HIGH light setting.

Automatically turns the blower on or increases speed when exhaust temperature exceeds 200° F.

If your hood is equipped with heat lamps, a center rotary switch will control the lamps. Each heat lamp may function independently or both lamps may be activated simultaneously from the single switch. From the OFF position, simply turn the switch to the right to activate the right heat lamp or to the left to activate the left lamp. When the switch is in the vertical position, both heat lamps will be activated.

The right rotary switch that operates the blower is variable, allowing infinite control of the blower speed. Rotate the switch fully counterclockwise to turn the blower off.

To remove the stainless steel filters, push each filter up at the angle it is placed in and rotate down. Remove the center filter first. Take out the grease cups (if applicable) placed on the bottom edge of the hood coinciding with the bottom edge of the filters. Gloves should be worn to provide the proper grip. Reinstall using the reverse procedure as shown in the illustration below. Outer filters may need to be pushed over while the center filter is reinstalled.

Features

• Ducting Information:• Round
  • Vertical or horizontal
• Dishwasher-Proof Filters:Y
• Additional Information:• Heavy-duty stainless steel construction
  • Handfinished with hemmed edges and welded seams
  • Bright halogen lighting
  • Infinite speed blower control
  • Heat sentry for safety
  • Recessed controls for sleeker look

Accessories

• Optional:• Blower required (internal, in-line or remote blowers available)

Documents

• Product Sheet (en)
• Dimensions Guide (en)
• Owner's manual (en)
• Installation guide (en)
