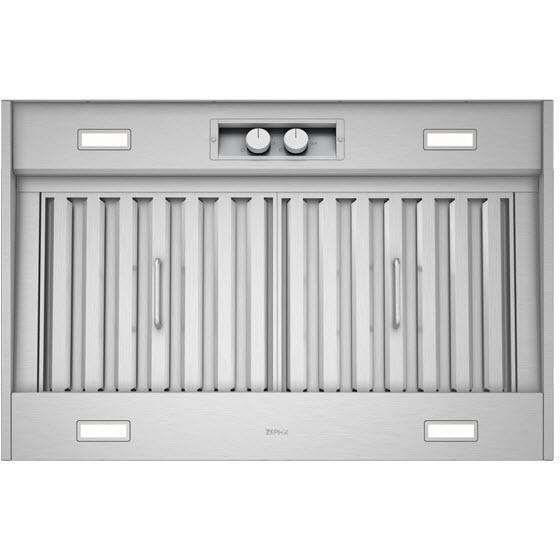

The Spruce outdoor insert is a one-piece liner that can be installed in wall or island applications. Spruce includes corrosion-resistant, 304-grade stainless steel and powerful 1,200-CFM internal blowers to handle the most intense grilling. Also featuring 3-speed metallic knob controls, directional LumiLight LED lighting, and pro baffle filters to enhance airflow.
Features
- Additional Information:
• Blower CFM (Min. - Max.): 450 - 1,200
• Sones (Min. - Max.): 3.5 - 9
• Directional Lighting: LumiLight LED, 6W x4
• Dual-Level Lighting
• Filters: Pro Baffle x2
• Removable Grease Tray - Ducting Information:
10" Round - Speeds:
3 Speeds
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
- Additional documents(en)
Specifications
Dimensions
Width40"Height12"Depth22"
Finish: Stainless Steel
MPN: AK9840BS
Product Details:
Class Width
42"Additional Dimensions
• Mounting Height Range*: 30" - 36"
• *Mounting height refers to distance between top of a 36" tall cooking surface and bottom of hoodDepth
57.15 cmWidth
102.55 cmHeight
30.48 cmSeries Name
Pro SpruceStyle
Custom InsertInstallation
Built-InAirflow
1200 CFMBlower Included
YColor
Stainless SteelAdditional Information
• Blower CFM (Min. - Max.): 450 - 1,200
• Sones (Min. - Max.): 3.5 - 9
• Directional Lighting: LumiLight LED, 6W x4
• Dual-Level Lighting
• Filters: Pro Baffle x2
• Removable Grease TrayDucting Information
10" RoundSpeeds
3 SpeedsWarranty
3 years parts, 1 year laborInformation
120V, 60Hz at Max. 6.5A VUPC#
646328010637
UPC: 6.46328E+11
