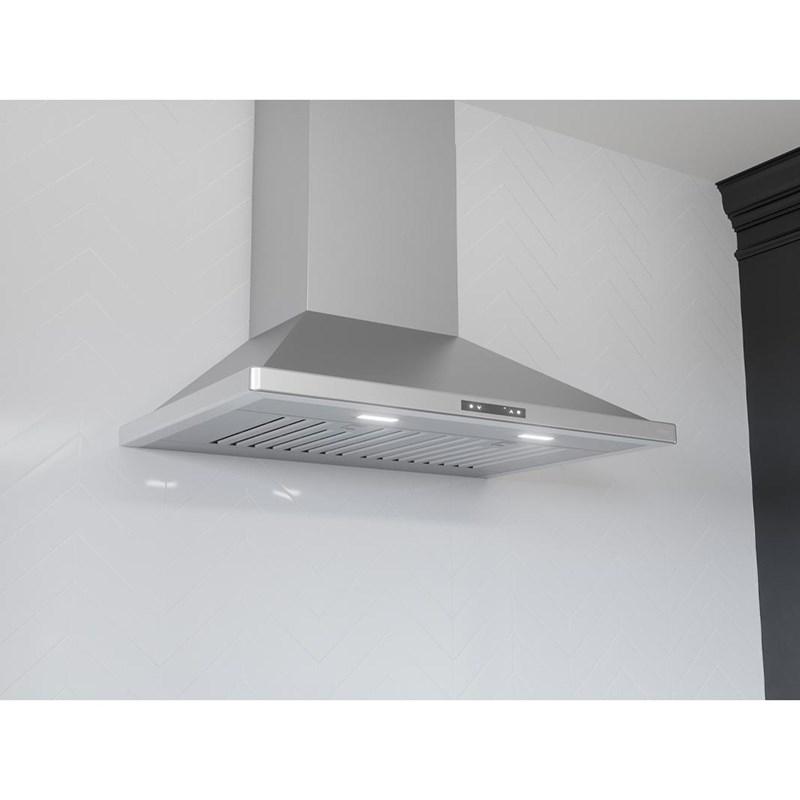

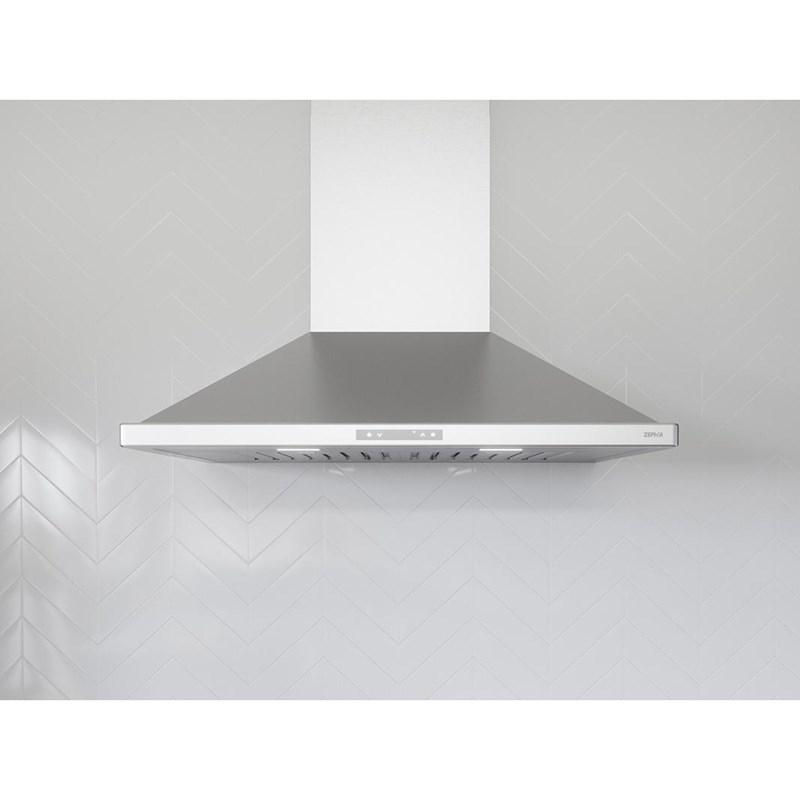

A classic modern design, Venezia’s formidable pyramid shape includes baffle filters, a 700-CFM PowerWave™ blower, and Zephyr Connect technology - elevating this timeless range hood to unparalleled levels of performance. Enhanced with tri-level, LumiLight LED Lighting, Venezia’s 24-inch-deep capture area is fully illuminated while remaining cool to the touch. Available with an optional wireless remote control.

Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.

Delivers best-in-class performance with unparalleled quiet operation. It provides more power while minimizing noise and improving efficiency.

Zephyr Connect App allows you to control your range hood from anywhere using your mobile device. It includes real time diagnostics and provides important product information. All you need is a WiFi connection with access to the internet. It seamlessly integrates with your smart devices such as Amazon Alexa or Google Home smart speaker for voice activation. Available to download from Google Play or the App Store.

Features

• Ducting Information:• Vertical Internal Blower
  • 8" Round
• Additional Information:• Proximity Touch Controls
  • Auto Delay-Off
  • CleanAir Function
  • Lighting: LumiLight LED, 6W x2
  • Tri-Level Lighting
  • Filters: Baffle x2
  • Recirculating Option
  • Extension Duct Cover Option: Up to 12' Ceiling
  • ADA Compliant with Zephyr Connect or Remote
• Speeds:• 6 Speeds
  • Min. - Max. CFM: 200 - 700
  • Min. - Max. Sones: 0.8 - 6
  • ACT 590 CFM (Min. - Max.): 200 - 590
  • ACT 390 CFM (Min. - Max.): 200 - 390
  • ACT 290 CFM (Min. - Max.): 200 - 290
• Technologies:• ACT™ Technology
  • PowerWave™ 3-Phase Blower Technology
  • Zephyr Connect App Compatible
  • Alexa and Google Home Compatible

Accessories

• Optional:• Wireless Remote Control: 14000005
  • Recirculating Kit: ZRC-03VE
  • Extension Duct Cover: Z1C-01VE
  • Make-Up Air Kit: MUA008A

Documents

• Product Sheet (en)
• Dimensions Guide (en)
• Owner's manual (en)
• Installation guide (en)
• Energy Guide (en)
• Additional documents(en)

Videos

• Zephyr Connect App
