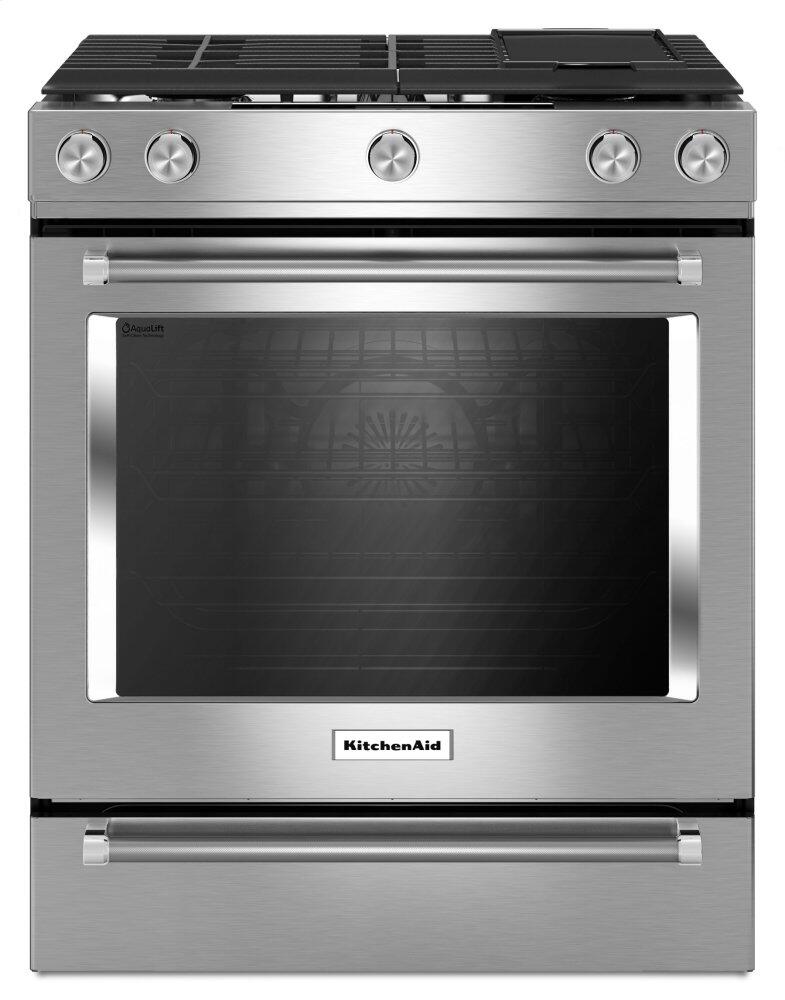

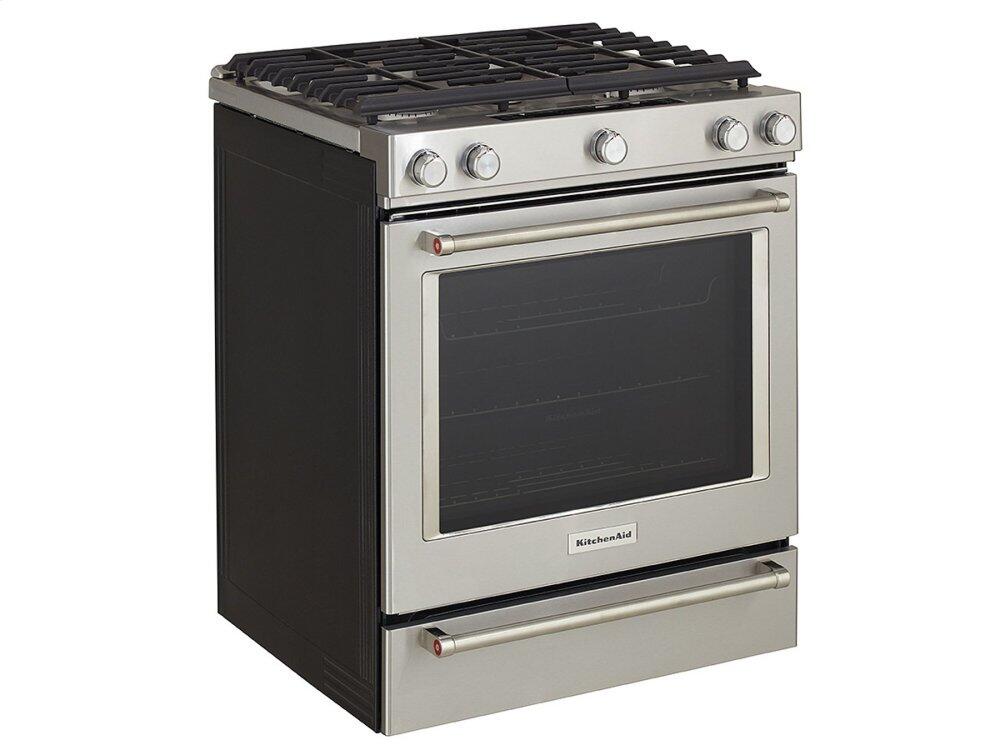

This versatile dual fuel range provides a Baking Drawer that adds more options to the oven. The separate compartment allows you to bake at a different temperature. This range features flawless cooking results from Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the entire oven is heated to, and stays at, the perfect temperature.
BAKING DRAWERAdds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.
EVEN-HEAT™ TRUE CONVECTION
Features a unique bow-tie design with heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts and flavorful, caramelized vegetables.
EASYCONVECT™ CONVERSION SYSTEM
Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
STEAM RACK
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
FIT GUARANTEE
A promise to fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
AQUALIFT®
Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
GLASS TOUCH CONTROLS
Offer an intuitive, easy-to-use touch screen experience.
SIDE TRIM ACCESSORY KIT
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Features
- Convection:
Y - Delay Bake/Start:
Y - Digital Temperature Display:
Y - Downdraft Ventilation:
N - Oven Light:
Y - Self-Cleaning:
Y - Additional Information:
• Even-Heat™ True Convection
• Steam Rack
• EasyConvect™ Conversion
• Aqualift®
• Side Trim Accessory Kit Optional
• Glass Touch Controls
• Selections : Baking Drawer Bake, Baking Drawer Keep Warm, Baking Drawer Slow Cook, Clock, Cook Time, Delay Start, Keep Warm Setting, Proofing, Steam Bake, Warm Zone
• ADA Height and Operation Compliant
Documents
Videos
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications
Fuel Type
Dual Fuel - Natural GasInstallation Type
Slide-inManufacturer Color
Stainless SteelColor
Stainless SteelCapacity (cu. ft.)
7.1Number of Ovens
SingleBurners
SealedBurners/Elements
5Burners/Elements Output
• Left Front Burner Power : 19,000 BTU
• Left Rear Burner Power : 5,000 BTU
• Right Front Burner Power : 15,000 BTU
• Right Rear Burner Power : 9,200 BTU
• Center Rear Burner Power : 8,000 BTUInformation
120/240V - 120/208VConvection
YDelay Bake/Start
YDigital Temperature Display
YDowndraft Ventilation
NOven Light
YSelf-Cleaning
YAdditional Information
• Even-Heat™ True Convection
• Steam Rack
• EasyConvect™ Conversion
• Aqualift®
• Side Trim Accessory Kit Optional
• Glass Touch Controls
• Selections : Baking Drawer Bake, Baking Drawer Keep Warm, Baking Drawer Slow Cook, Clock, Cook Time, Delay Start, Keep Warm Setting, Proofing, Steam Bake, Warm Zone
• ADA Height and Operation CompliantSabbath/Star-K
NBaking
YBroiler
NStorage
NWarming
NClass Width
30"Height
91.44 cmWidth
75.88 cmDepth (Without Handles)
66.99 cmAdditional Dimensions
• 28 7/8" (73.3 cm) Max. Depth From Handle To Back Of Range
• 28 5/16" (71.9 cm) Max. Depth From Front Of Console To Back Of Range
• 36" (91.4 cm) Height To Top Of Cooktop Edge With Leveling Legs Screwed In All The Way* (range Can Be Raised Approximately 1" (2.5 cm) By Adjusting The Leveling Legs)Weight
82.55 kgDepth (Including Handles)
73.34 cmWeight
90.72 kgWidth
80.01 cmHeight
110.49 cmDepth
77.63 cmWarranty
Limited 1-Year Parts and LaborUPC#
883049330006
- Bake Element Power: 3600W
